9DBU0841 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

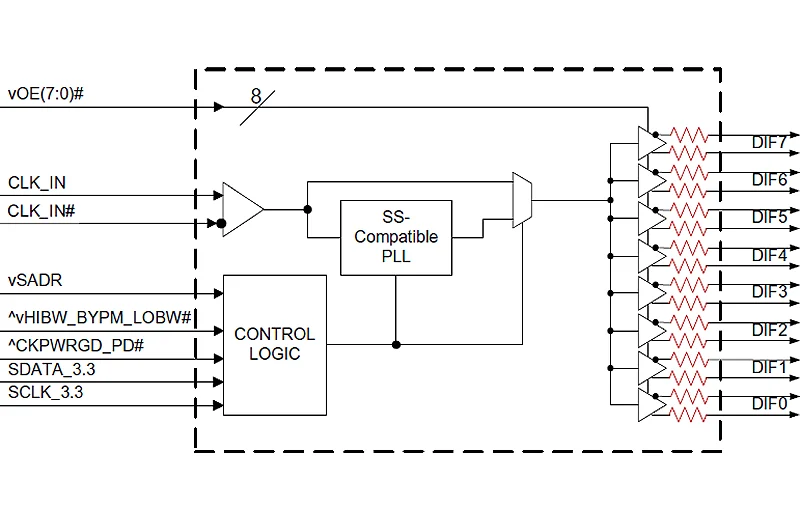

8-OUTPUT 1.5V PCIE ZERO-DELAY/FANOUT CLOCK BUFFER
| Part | Differential Input | Differential Output | Output | PLL | Number of Circuits | Package / Case | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Input Ratio | Output Ratio | Package Width | Package Name | Package Length | Operating Temperature (Min) | Operating Temperature (Max) | Frequency - Max | Input | Main Purpose | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | Yes | Yes | LP-HCSL | Yes with Bypass | 1 | 48-VFQFN Exposed Pad | 1.575 V | 1.425 V | 1 | 8 | 6 mm | 48-VFQFPN | 6 mm | 0 °C | 70 °C | 167 MHz | HCSL LVDS | PCI Express (PCIe) | Surface Mount |
 Renesas Electronics Corporation | Yes | Yes | LP-HCSL | Yes | 1 | 48-VFQFN Exposed Pad | 1.575 V | 1.425 V | 1 | 8 | 6 mm | 48-VFQFPN | 6 mm | -40 °C | 85 °C | 167 MHz | HCSL | PCI Express (PCIe) | Surface Mount |
Renesas Electronics Corporation | Yes | Yes | LP-HCSL | Yes with Bypass | 1 | 48-VFQFN Exposed Pad | 1.575 V | 1.425 V | 1 | 8 | 6 mm | 48-VFQFPN | 6 mm | -40 °C | 85 °C | 167 MHz | HCSL LVDS | PCI Express (PCIe) | Surface Mount |
Renesas Electronics Corporation | Yes | Yes | LP-HCSL | Yes | 1 | 48-VFQFN Exposed Pad | 1.575 V | 1.425 V | 1 | 8 | 6 mm | 48-VFQFPN | 6 mm | 0 °C | 70 °C | 167 MHz | HCSL | PCI Express (PCIe) | Surface Mount |
