085789 Series
Manufacturer: Molex
Beta
⌘K

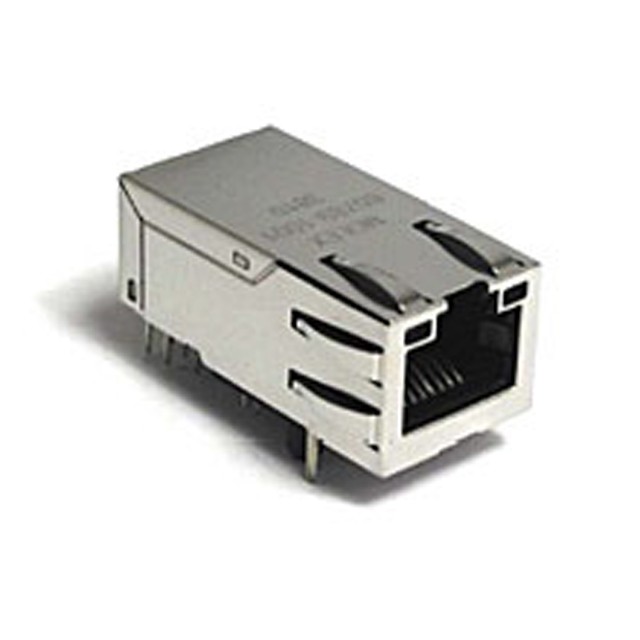

CONN RJ-45 F 8 POS 2.54MM SOLDER RA THRU-HOLE 12 TERMINAL 1 PORT
| Part | Shielding | Contact Finish | Applications | Orientation Angle | Orientation Direction | Contact Material | Number of Ports | Mounting Type | Number of Cores per Jack | Connector Type | Operating Temperature (Min) | Operating Temperature (Max) | LED Color | Tab Direction | Termination | Height Above Board | Number of Rows | Features | Housing Material | Shield Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | EMI Finger Shielded | Gold | 10G Base-T AutoMDIX | 90 ° | Right | Phosphor Bronze | 1 | Through Hole | 4 | RJ45 | -40 °C | 85 °C | Does Not Contain LED | Up | Solder | 0.546 in | 1 | Board Lock | PBT Polybutylene Terephthalate | Stainless Steel | 30 µin |
Molex | EMI Finger Shielded | Gold | 10G Base-T AutoMDIX | 90 ° | Right | Phosphor Bronze | 1 | Through Hole | 4 | RJ45 | -40 °C | 85 °C | Green Yellow - Green | Up | Solder | 0.546 in | 1 | Board Lock | PBT Polybutylene Terephthalate | Stainless Steel | 30 µin |
 Molex | EMI Finger Shielded | Gold | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | 90 ° | Right | Phosphor Bronze | 1 | Through Hole | 8 | RJ45 | 0 °C | 70 °C | Green Orange - Green | Up | Solder | 0.546 in | 1 | Board Lock | PBT Polybutylene Terephthalate | Stainless Steel | 30 µin |
Molex | EMI Finger Shielded | Gold | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | 90 ° | Right | Phosphor Bronze | 1 | Through Hole | 8 | RJ45 | 0 °C | 70 °C | Green - Green | Up | Solder | 0.546 in | 1 | Board Lock | PBT Polybutylene Terephthalate | Stainless Steel | 30 µin |
 Molex | EMI Finger Shielded | Gold | AutoMDIX | 90 ° | Right | Phosphor Bronze | 1 | Through Hole | 4 | RJ45 | -40 °C | 85 °C | Does Not Contain LED | Up | Solder | 0.546 in | 1 | Board Lock | PBT Polybutylene Terephthalate | Stainless Steel | 30 µin |
 Molex | EMI Finger Shielded | Gold | 10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+) | 90 ° | Right | Phosphor Bronze | 1 | Through Hole | 8 | RJ45 | 0 °C | 70 °C | Green - Yellow | Up | Solder | 0.546 in | 1 | Board Lock | PBT Polybutylene Terephthalate | Stainless Steel | 30 µin |
Molex |
