TC1263 Series

Catalog

IC,VOLT REGULATOR,FIXED,+3V,CMOS,SIP,5PIN,PLASTIC ROHS COMPLIANT: YES

Part	Package Leads	Package Name	Protection Features	Current - Output	Output Configuration	Voltage Dropout (Max)	Number of Regulators	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output (Min/Fixed)	Mounting Type	Control Features	Voltage - Input (Max)	PSRR	Current - Quiescent (Iq)	Output Type	Package / Case	Package Length	Package Width
Microchip Technology TC1263-3.0VETTR	5 Leads	D2PAK DDPAK-5	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	3 V	Surface Mount	Enable	6 V	64 dB	130 µA	Fixed
Microchip Technology TC1263-2.8VETTR	5 Leads	D2PAK DDPAK-5	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	2.8 V	Surface Mount	Enable	6 V	64 dB	130 µA	Fixed

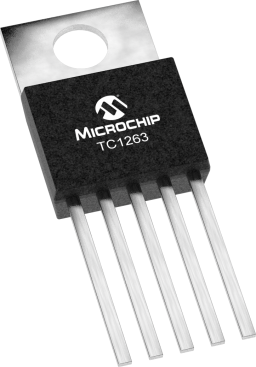

Microchip Technology TC1263-3.0VAT		TO-220-5	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	3 V	Through Hole	Enable	6 V	64 dB	130 µA	Fixed	TO-220-5
Microchip Technology TC1263-2.8VOA		8-SOIC	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	2.8 V	Surface Mount	Enable	6 V	64 dB	130 µA	Fixed		0.154 in	3.9 mm
Microchip Technology TC1263-2.5VETTR	5 Leads	D2PAK DDPAK-5	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	2.5 V	Surface Mount	Enable	6 V	64 dB	130 µA	Fixed
Microchip Technology TC1263-3.3VAT		TO-220-5	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	3.3 V	Through Hole	Enable	6 V	64 dB	130 µA	Fixed	TO-220-5
Microchip Technology TC1263-5.0VETTR	5 Leads	D2PAK DDPAK-5	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	5 V	Surface Mount	Enable	6 V	64 dB	130 µA	Fixed
Microchip Technology TC1263-5.0VOA		8-SOIC	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	5 V	Surface Mount	Enable	6 V	64 dB	130 µA	Fixed		0.154 in	3.9 mm
Microchip Technology TC1263-2.8VAT		TO-220-5	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	2.8 V	Through Hole	Enable	6 V	64 dB	130 µA	Fixed	TO-220-5
Microchip Technology TC1263-2.8VOATR		8-SOIC	Over Current Over Temperature	500 mA	Positive	0.65 V	1	125 °C	-40 °C	2.8 V	Surface Mount	Enable	6 V	64 dB	130 µA	Fixed		0.154 in	3.9 mm
