2842122 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

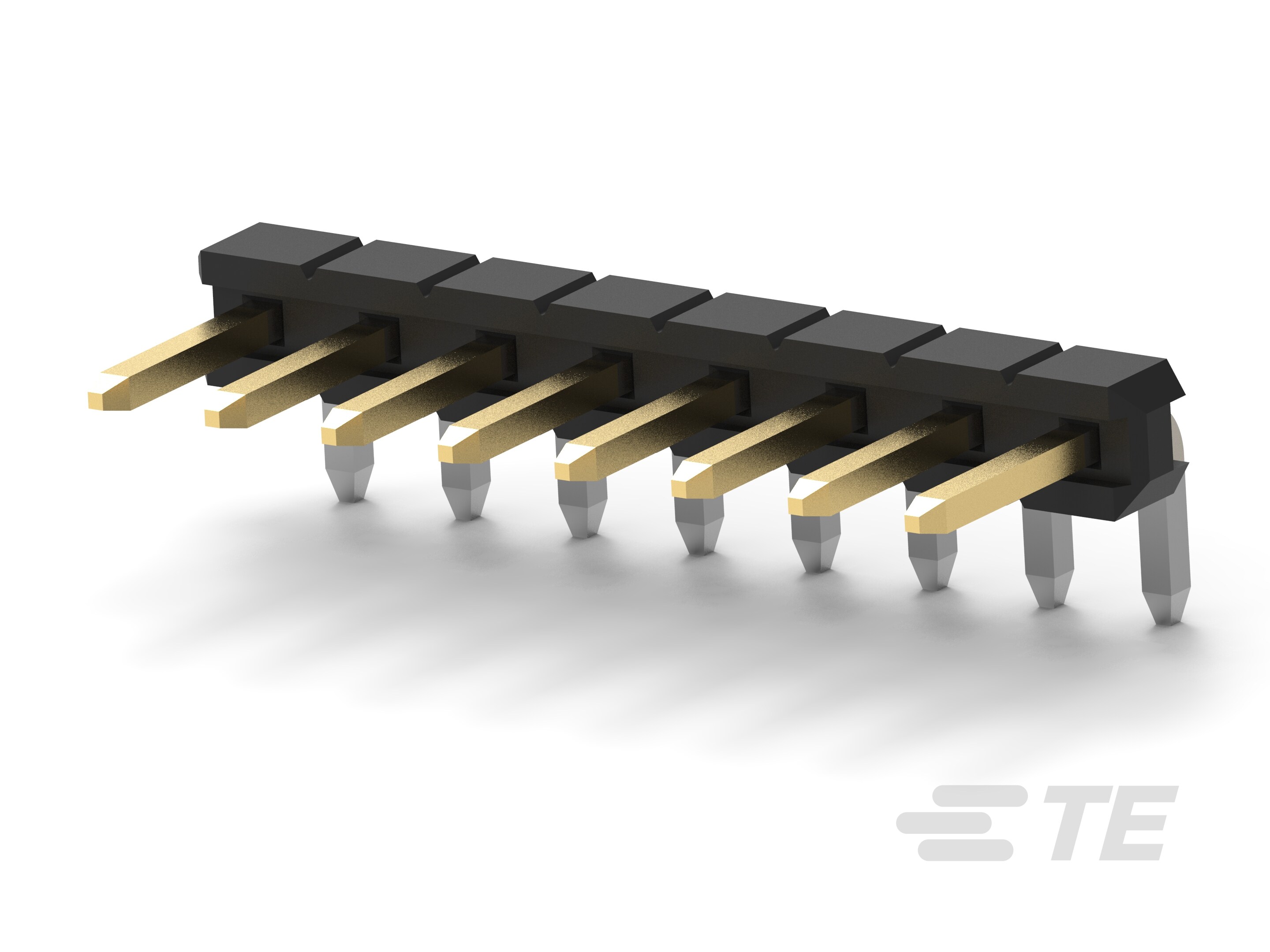

BOARD TO BOARD & MEZZANINE CONNECTORS 8P,2MM,BRK HDR,SRRT,2.8,0.1AU,BOX
| Part | Current Rating | Shrouding | Voltage Rating | Voltage Rating (Type) | Contact Shape | Contact Material | Mounting Type | Number of Positions | Contact Finish - Post | Insulation Material | Pitch - Mating | Contact Length - Post | Number of Rows | Termination | Connector Type | Contact Type | Number of Positions Loaded | Contact Finish Thickness - Mating | Style | Fastening Type | Insulation Color | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish - Mating | Contact Length - Mating | Material Flammability Rating | Insulation Height | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 A | Unshrouded | 125 V | DC | Square | Copper Alloy | Right Angle Through Hole | 8 | Tin | Thermoplastic | 0.079 in | 0.11 in | 1 | Solder | Breakaway Header | Male Pin | All | 3.94 µin | Board | Push-Pull | Black | 125 °C | -40 °C | Gold | 0.157 in | UL94 V-0 | 0.059 in | 78.7 µin |
 TE Connectivity AMP Connectors | 2 A | Unshrouded | 125 V | DC | Square | Copper Alloy | Right Angle Through Hole | 10 | Tin | Thermoplastic | 0.079 in | 0.11 in | 1 | Solder | Breakaway Header | Male Pin | All | 3.94 µin | Board | Push-Pull | Black | 125 °C | -40 °C | Gold | 0.157 in | UL94 V-0 | 0.059 in | 78.7 µin |
 TE Connectivity AMP Connectors | 2 A | Unshrouded | 125 V | DC | Square | Copper Alloy | Right Angle Through Hole | 2 | Tin | Thermoplastic | 0.079 in | 0.11 in | 1 | Solder | Breakaway Header | Male Pin | All | 3.94 µin | Board | Push-Pull | Black | 125 °C | -40 °C | Gold | 0.157 in | UL94 V-0 | 0.059 in | 78.7 µin |
 TE Connectivity AMP Connectors | 2 A | Unshrouded | 125 V | DC | Square | Copper Alloy | Right Angle Through Hole | 6 | Tin | Thermoplastic | 0.079 in | 0.11 in | 1 | Solder | Breakaway Header | Male Pin | All | 3.94 µin | Board | Push-Pull | Black | 125 °C | -40 °C | Gold | 0.157 in | UL94 V-0 | 0.059 in | 78.7 µin |
 TE Connectivity AMP Connectors | 2 A | Unshrouded | 125 V | DC | Square | Copper Alloy | Right Angle Through Hole | 3 | Tin | Thermoplastic | 0.079 in | 0.11 in | 1 | Solder | Breakaway Header | Male Pin | All | 3.94 µin | Board | Push-Pull | Black | 125 °C | -40 °C | Gold | 0.157 in | UL94 V-0 | 0.059 in | 78.7 µin |
 TE Connectivity AMP Connectors | 2 A | Unshrouded | 125 V | DC | Square | Copper Alloy | Right Angle Through Hole | 4 | Tin | Thermoplastic | 0.079 in | 0.11 in | 1 | Solder | Breakaway Header | Male Pin | All | 3.94 µin | Board | Push-Pull | Black | 125 °C | -40 °C | Gold | 0.157 in | UL94 V-0 | 0.059 in | 78.7 µin |
TE Connectivity AMP Connectors | 2 A | Unshrouded | 125 V | DC | Square | Copper Alloy | Right Angle Through Hole | 5 | Tin | Thermoplastic | 0.079 in | 0.11 in | 1 | Solder | Breakaway Header | Male Pin | All | 3.94 µin | Board | Push-Pull | Black | 125 °C | -40 °C | Gold | 0.157 in | UL94 V-0 | 0.059 in | 78.7 µin |
