641260 Series

Catalog

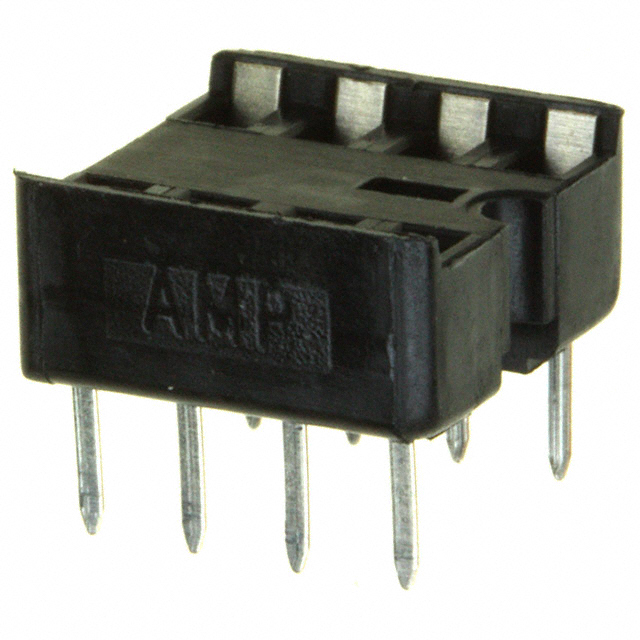

CONN IC DIP SOCKET 8POS GOLD

Part	Features	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Housing Material	Pitch - Mating	Row Spacing	Type	Contact Material - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Pitch - Post	Contact Finish - Post	Contact Material - Post	Grid Columns	Grid Rows	Number of Positions or Pins (Grid)	Mounting Type	Termination Post Length	Material Flammability Rating	Contact Resistance
TE Connectivity AMP Connectors 2-641260-4	Closed Frame	Solder	125 °C	-55 °C	Glass Filled Thermoplastic	0.1 in	0.3 in	0.3" (7.62mm) Row Spacing DIP	Phosphor Bronze	Gold	15 µin	30 µin	0.1 in	Gold	Phosphor Bronze	4	2	8	Through Hole	0.12 in	UL94 V-0	30 mOhm
TE Connectivity AMP Connectors 2-641260-1	Closed Frame	Solder	105 °C	-55 °C	Glass Filled Thermoplastic	0.1 in	0.3 in	0.3" (7.62mm) Row Spacing DIP	Beryllium Copper	Tin			0.1 in	Tin	Beryllium Copper	4	2	8	Through Hole	0.12 in	UL94 V-0	30 mOhm
