2367724 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

EP3.96 POTTED HEADER WITH BOSS,GWT,7P

Part	Contact Finish - Mating	Contact Finish - Post	Contact Length - Post	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Contact Shape	Termination	Shrouding	Style	Fastening Type	Mounting Type	Contact Length - Mating	Insulation Height	Material Flammability Rating	Number of Positions	Features	Connector Type	Current Rating	Pitch - Mating	Contact Type	Insulation Material	Contact Finish Thickness - Mating	Number of Rows	Contact Material	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Post

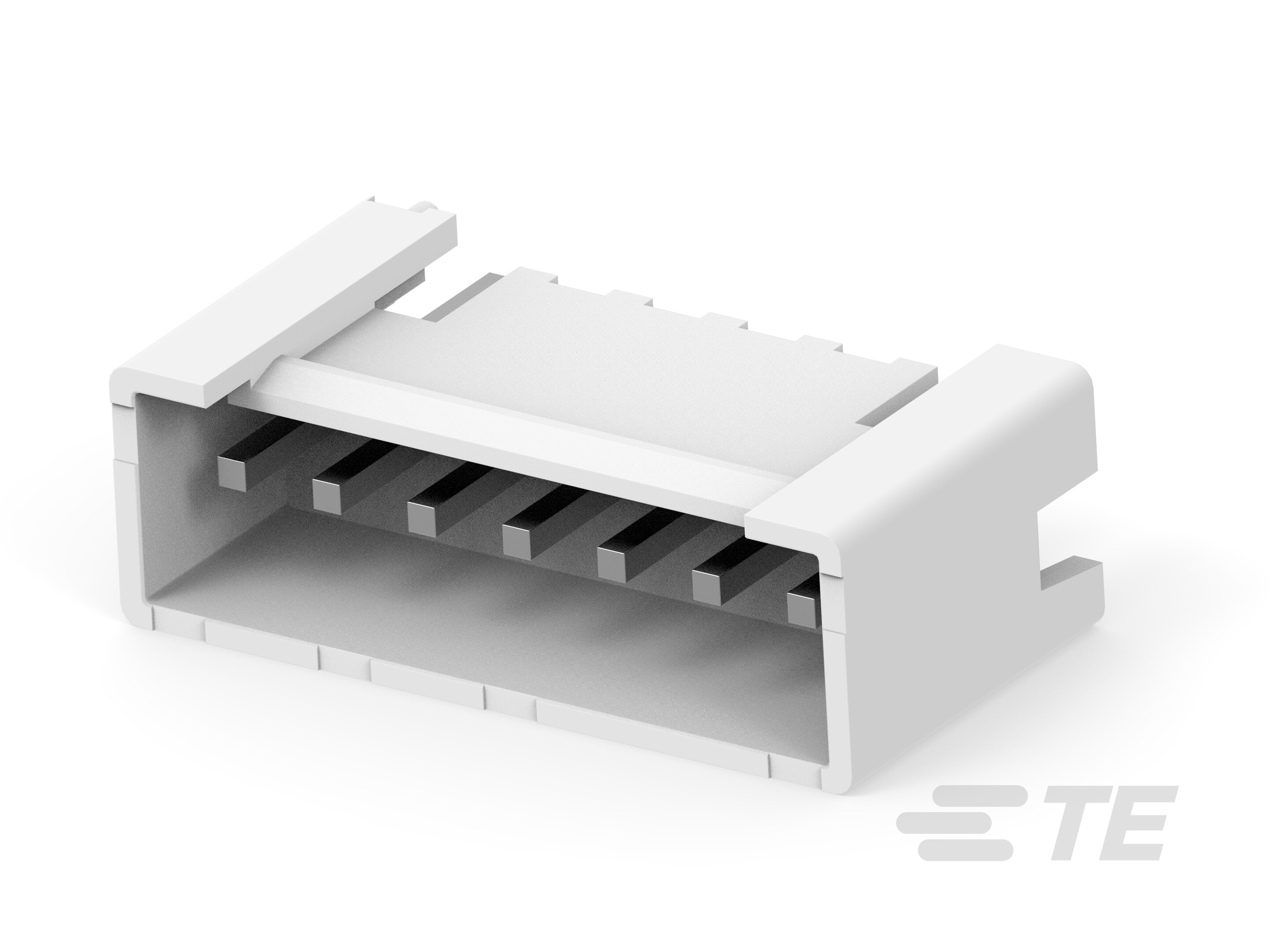

TE Connectivity AMP Connectors 2367724-7	Tin	Tin	0.138 in	-55 °C	105 °C	600 V	Square	Solder	Shrouded - 4 Wall	Board Cable/Wire	Locking Ramp	Through Hole	0.242 in	0.622 in	UL94 V-0	7	Board Guide	Header	12.3 A	0.156 in	Male Pin	Resin	78.7 Ąin	1	Copper Alloy	All	Natural	78.7 µin
TE Connectivity AMP Connectors 2367724-4	Tin	Tin	0.138 in	-55 °C	105 °C	600 V	Square	Solder	Shrouded - 4 Wall	Board Cable/Wire	Locking Ramp	Through Hole	0.242 in	0.622 in	UL94 V-0	4	Board Guide	Header	12.3 A	0.156 in	Male Pin	Resin	78.7 Ąin	1	Copper Alloy	All	Natural	78.7 µin
TE Connectivity AMP Connectors 2367724-5	Tin	Tin	0.138 in	-55 °C	105 °C	600 V	Square	Solder	Shrouded - 4 Wall	Board Cable/Wire	Locking Ramp	Through Hole	0.242 in	0.622 in	UL94 V-0	5	Board Guide	Header	12.3 A	0.156 in	Male Pin	Resin	78.7 Ąin	1	Copper Alloy	All	Natural

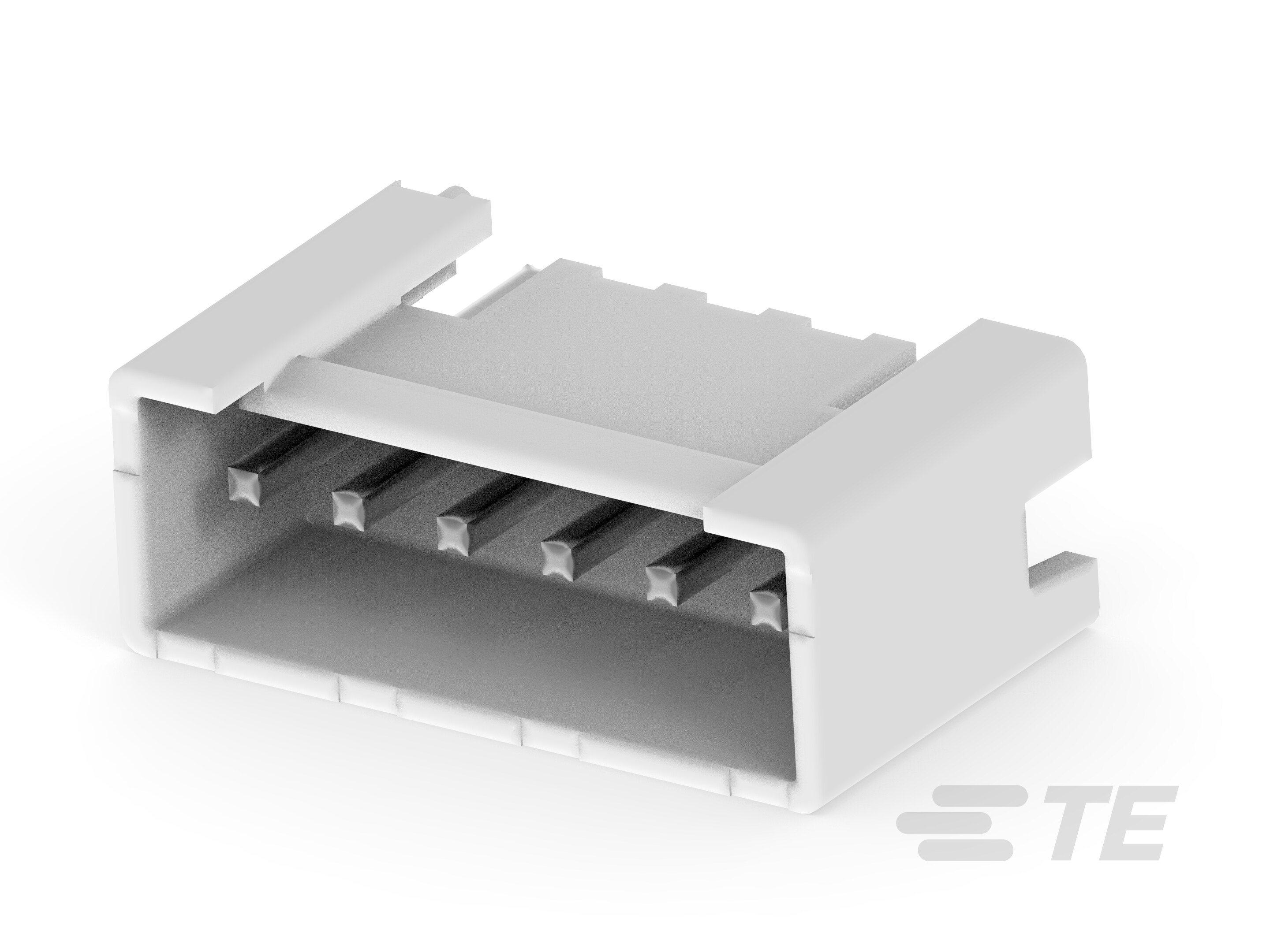

TE Connectivity AMP Connectors 2367724-6	Tin	Tin	0.138 in	-55 °C	105 °C	600 V	Square	Solder	Shrouded - 4 Wall	Board Cable/Wire	Locking Ramp	Through Hole	0.242 in	0.622 in	UL94 V-0	6	Board Guide	Header	12.3 A	0.156 in	Male Pin	Resin	78.7 Ąin	1	Copper Alloy	All	Natural	78.7 µin

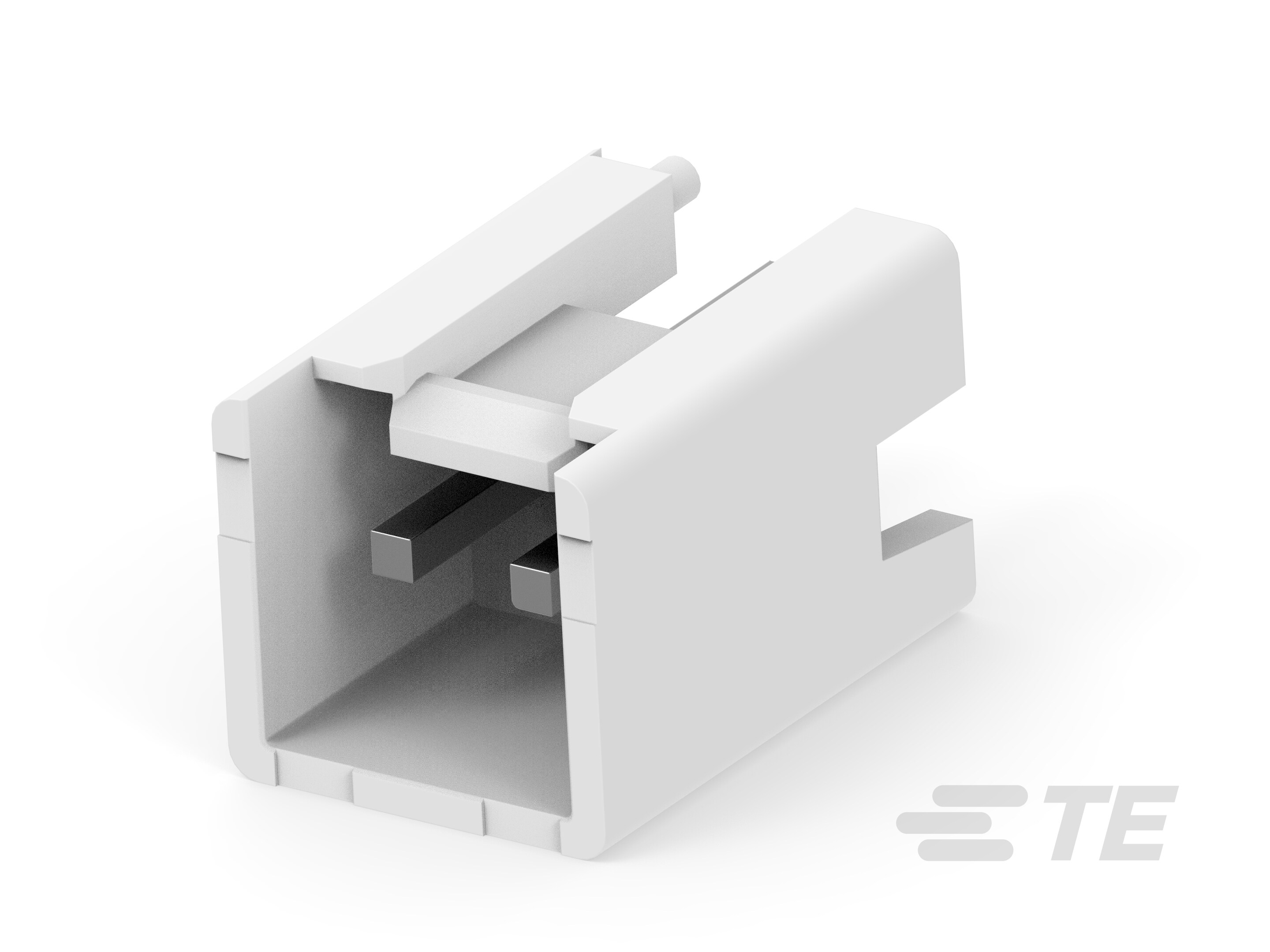

TE Connectivity AMP Connectors 2367724-2	Tin	Tin	0.138 in	-55 °C	105 °C	600 V	Square	Solder	Shrouded - 4 Wall	Board Cable/Wire	Locking Ramp	Through Hole	0.242 in	0.622 in	UL94 V-0	2	Board Guide	Header	12.3 A	0.156 in	Male Pin	Resin	78.7 Ąin	1	Copper Alloy	All	Natural
