MCP3562 Series

Newer Device Available MCP3562R

Catalog

Newer Device Available MCP3562R

Part	Configuration	Package Name	Mounting Type	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Package Length	Package Width	Features	Number of Bits	Operating Temperature (Max)	Operating Temperature (Min)	Sampling Rate (Per Second)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Number of A/D Converters	Architecture	Number of Inputs	Data Interface	Input Type	Package / Case	Ratio - S/H	Ratio - ADC
Microchip Technology MCP3562T-E/ST	MUX-PGA-ADC	20-TSSOP	Surface Mount	2.7 V	3.6 V	0.173 in	4.4 mm	Internal Oscillator PGA Temperature Sensor	24 bits	125 °C	-40 °C	153.6 kHz	1.8 V	3.7 V	2 count	Sigma-Delta	2 4	SPI	Differential Single Ended

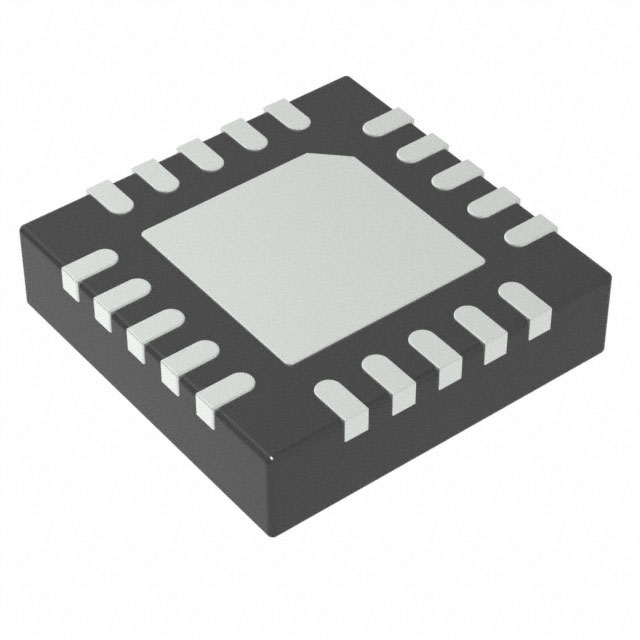

Microchip Technology MCP3562T-E/NC	MUX-PGA-ADC	20-UQFN	Surface Mount	2.7 V	3.6 V	3 mm	3 mm	Internal Oscillator PGA Temperature Sensor	24 bits	125 °C	-40 °C	153.6 kHz			1 count	Sigma-Delta	2 4	SPI	Differential Single Ended	20-UFQFN Exposed Pad
Microchip Technology MCP3562R-E/ST	MUX-ADC MUX-PGA-ADC	20-TSSOP	Surface Mount	2.7 V	3.6 V	0.173 in	4.4 mm	Internal Oscillator Temperature Sensor	24 bits	125 °C	-40 °C	153.6 kHz	1.8 V	3.7 V	2 count	Sigma-Delta	2 4	SPI	Differential Single Ended		0	2
Microchip Technology MCP3562RT-E/ST	MUX-ADC MUX-PGA-ADC	20-TSSOP	Surface Mount	2.7 V	3.6 V	0.173 in	4.4 mm	Internal Oscillator Temperature Sensor	24 bits	125 °C	-40 °C	153.6 kHz	1.8 V	3.7 V	2 count	Sigma-Delta	2 4	SPI	Differential Single Ended		0	2
Microchip Technology MCP3562RT-E/NC	MUX-ADC MUX-PGA-ADC	20-UQFN	Surface Mount	2.7 V	3.6 V	3 mm	3 mm	Internal Oscillator Temperature Sensor	24 bits	125 °C	-40 °C	153.6 kHz	1.8 V	3.7 V	2 count	Sigma-Delta	2 4	SPI	Differential Single Ended	20-UFQFN Exposed Pad	0	2
Microchip Technology MCP3562-E/ST	MUX-PGA-ADC	20-TSSOP	Surface Mount	2.7 V	3.6 V	0.173 in	4.4 mm	Internal Oscillator PGA Temperature Sensor	24 bits	125 °C	-40 °C	153.6 kHz	1.8 V	3.7 V	2 count	Sigma-Delta	2 4	SPI	Differential Single Ended

Catalog

Newer Device Available MCP3562R

Description

The [MCP3562R](https://www.microchip.com/en-us/product/MCP3562R) is a preferred, pin compatible option that should be used for new designs. The R version includes an onboard voltage reference which is not included in the MCP3562.
