1761685 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC LOW PRO HDR 34P VERT SHT LAT

Part	Insulation Color	Contact Material	Termination	Pitch - Mating	Material Flammability Rating	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Features	Insulation Material	Contact Length - Mating	Number of Positions Loaded	Connector Type	Style	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Voltage Rating	Mounting Type	Contact Length - Post	Number of Rows	Number of Positions	Contact Type	Insulation Height	Current Rating (Per Contact)	Contact Finish Thickness - Mating	Contact Shape	Row Spacing - Mating	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-1761685-1	Blue	Phosphor Bronze	Solder	0.1 in	UL94 V-0	Gold	Latch Lock/Eject Hooks Short	Tin	Keying Slot	Polybutylene Terephthalate (PBT)	0.24 in	All	Header	Board Cable/Wire	105 °C	-65 °C	Shrouded - 4 Wall	250 V	Through Hole	0.102 in	2	34	Male Pin	0.35 in	1 A	30 µin	Square	0.1 in	100 Ąin

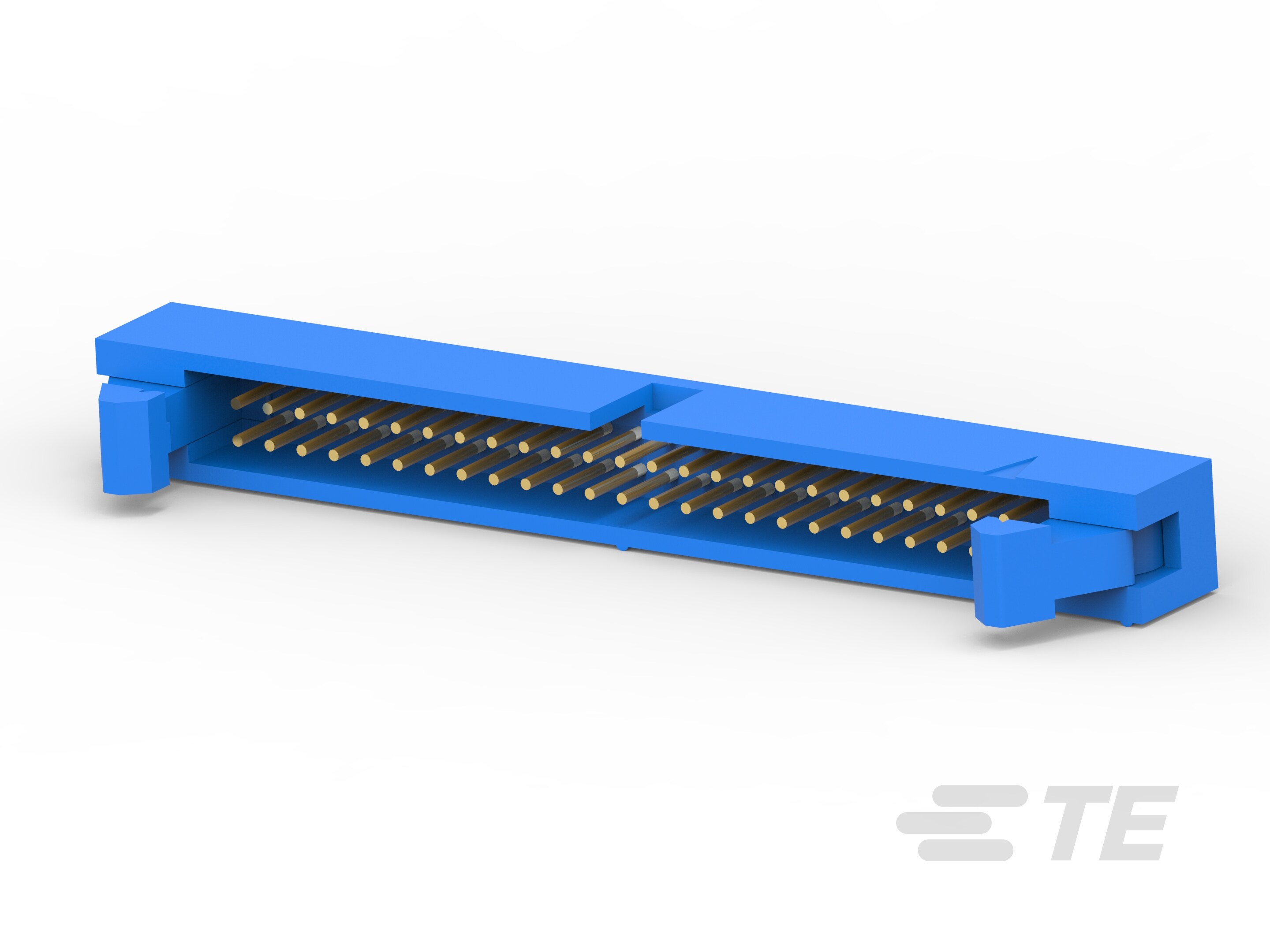

TE Connectivity AMP Connectors 1-1761685-5	Blue	Phosphor Bronze	Solder	0.1 in	UL94 V-0	Gold	Latch Lock/Eject Hooks Short	Tin	Keying Slot	Polybutylene Terephthalate (PBT)	0.24 in	All	Header	Board Cable/Wire	105 °C	-65 °C	Shrouded - 4 Wall	250 V	Through Hole	0.102 in	2	50	Male Pin	0.35 in	1 A	30 µin	Square	0.1 in	100 Ąin
TE Connectivity AMP Connectors 1-1761685-3	Blue	Phosphor Bronze	Solder	0.1 in	UL94 V-0	Gold	Latch Lock/Eject Hooks Short	Tin	Keying Slot	Polybutylene Terephthalate (PBT)	0.24 in	All	Header	Board Cable/Wire	105 °C	-65 °C	Shrouded - 4 Wall	250 V	Through Hole	0.102 in	2	40	Male Pin	0.35 in	1 A	30 µin	Square	0.1 in	100 Ąin
TE Connectivity AMP Connectors 1761685-7	Blue	Phosphor Bronze	Solder	0.1 in	UL94 V-0	Gold	Latch Lock/Eject Hooks Short	Tin	Keying Slot	Polybutylene Terephthalate (PBT)	0.24 in	All	Header	Board Cable/Wire	105 °C	-65 °C	Shrouded - 4 Wall	250 V	Through Hole	0.102 in	2	20	Male Pin	0.35 in	1 A	30 µin	Square	0.1 in	100 Ąin
TE Connectivity AMP Connectors 1761685-6	Blue	Phosphor Bronze	Solder	0.1 in	UL94 V-0	Gold	Latch Lock/Eject Hooks Short	Tin	Keying Slot	Polybutylene Terephthalate (PBT)	0.24 in	All	Header	Board Cable/Wire	105 °C	-65 °C	Shrouded - 4 Wall	250 V	Through Hole	0.102 in	2	16	Male Pin	0.35 in	1 A	30 µin	Square	0.1 in	100 Ąin
TE Connectivity AMP Connectors 1761685-9	Blue	Phosphor Bronze	Solder	0.1 in	UL94 V-0	Gold	Latch Lock/Eject Hooks Short	Tin	Keying Slot	Polybutylene Terephthalate (PBT)	0.24 in	All	Header	Board Cable/Wire	105 °C	-65 °C	Shrouded - 4 Wall	250 V	Through Hole	0.102 in	2	26	Male Pin	0.35 in	1 A	30 µin	Square	0.1 in	100 Ąin
