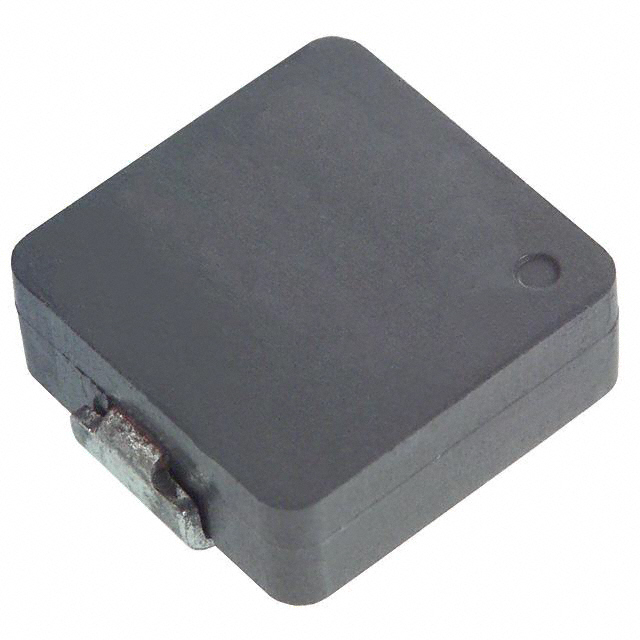

ETQ-P5 Series

Manufacturer: Panasonic Electronic Components

Catalog

POWER INDUCTOR (SMD), 3.3 ΜH, 14.7 A, SHIELDED, 23.4 A, PCC-M1050M SERIES

Part	Ratings	Tolerance	Shielding	Current Rating	Inductance	Type	Current - Saturation (Isat)	DC Resistance (DCR) (Max)	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Material - Core	Package / Case	Inductance Frequency - Test	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	DC Resistance (DCR)
Panasonic Electronic Components ETQ-P5M3R3YGC	AEC-Q200	20 %	Shielded	14.7 A	3.3 µH	Drum Core Wirewound	23.4 A	7.81 mOhm	Surface Mount	-40 °C	150 °C	Metal Composite	2-SMD J-Lead	100 kHz	0.394 in	0.429 in	0.197 in
Panasonic Electronic Components ETQ-P5M330YFC	AEC-Q200	20 %	Shielded	5 A	33 µH	Drum Core Wirewound	7.6 A	75.4 mOhm	Surface Mount	-40 °C	150 °C	Metal Composite	2-SMD J-Lead	100 kHz	0.394 in	0.421 in	0.213 in
Panasonic Electronic Components ETQ-P5LR50XFA		20 %	Shielded	30 A	500 nH	Drum Core Wirewound			Surface Mount			Metal Composite	2-SMD J-Lead	100 kHz	0.492 in	0.571 in	0.197 in	0.8 mOhm
Panasonic Electronic Components ETQ-P5M2R5YFK	AEC-Q200	20 %	Shielded	14 A	2.5 µH	Drum Core Wirewound	20.1 A	8.4 mOhm	Surface Mount	-40 °C	150 °C	Metal Composite	2-SMD J-Lead	100 kHz	0.315 in	0.335 in	0.213 in
Panasonic Electronic Components ETQ-P5M470YFK	AEC-Q200	20 %	Shielded	3.4 A	47 µH	Drum Core Wirewound	5.4 A	138 mOhm	Surface Mount	-40 °C	150 °C	Metal Composite	2-SMD J-Lead	100 kHz	0.315 in	0.335 in	0.213 in
Panasonic Electronic Components ETQ-P5M100YFM	AEC-Q200	20 %	Shielded	5.7 A	10 µH	Drum Core Wirewound	10.6 A	41.3 mOhm	Surface Mount	-40 °C	150 °C	Metal Composite	2-SMD J-Lead	100 kHz	0.276 in	0.295 in	0.213 in
Panasonic Electronic Components ETQ-P5M220YFM	AEC-Q200	20 %	Shielded	3.7 A	22 µH	Drum Core Wirewound	5.8 A	102 mOhm	Surface Mount	-40 °C	150 °C	Metal Composite	2-SMD J-Lead	100 kHz	0.276 in	0.295 in	0.213 in
Panasonic Electronic Components ETQ-P5M101YGK	AEC-Q200	20 %	Shielded	2.1 A	100 µH	Drum Core Wirewound	3 A	333 mOhm	Surface Mount	-40 °C	150 °C	Metal Composite	2-SMD J-Lead	100 kHz	0.315 in	0.335 in	0.197 in
Panasonic Electronic Components ETQ-P5M4R7YFM	AEC-Q200	20 %	Shielded	8 A	4.7 µH	Drum Core Wirewound	13.1 A	23 mOhm	Surface Mount	-40 °C	150 °C	Metal Composite	2-SMD J-Lead	100 kHz	0.276 in	0.295 in	0.213 in
Panasonic Electronic Components ETQ-P5M3R3YFC	AEC-Q200	20 %	Shielded	15.7 A	3.3 µH	Drum Core Wirewound	22.7 A	7.9 mOhm	Surface Mount	-40 °C	150 °C	Metal Composite	2-SMD J-Lead	100 kHz	0.394 in	0.421 in	0.213 in
