5103311 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 50POS 2.54MM

Part	Contact Finish - Post	Number of Rows	Style	Shrouding	Fastening Type	Contact Length - Post	Contact Type	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Material	Contact Shape	Contact Finish - Mating	Row Spacing - Mating	Insulation Color	Termination	Insulation Height	Contact Length - Mating	Current Rating (Per Contact)	Connector Type	Mounting Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Pitch - Mating	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-5103311-0	Tin	2	Board Cable/Wire	Shrouded - 4 Wall	Push-Pull	0.135 in	Male Pin	50	All	30 µin	Brass	Square	Gold Gold-Palladium	0.1 in	Black	Solder	0.36 in	0.24 in	1 A	Header	Right Angle Through Hole	Keying Slot	105 °C	-65 °C	UL94 V-0	0.1 in	100 Ąin
TE Connectivity AMP Connectors 5103311-2	Tin	2	Board Cable/Wire	Shrouded - 4 Wall	Push-Pull	0.135 in	Male Pin	14	All	30 µin	Brass	Square	Gold Gold-Palladium	0.1 in	Black	Solder	0.36 in	0.24 in	1 A	Header	Right Angle Through Hole	Keying Slot	105 °C	-65 °C	UL94 V-0	0.1 in	100 Ąin
TE Connectivity AMP Connectors 5103311-3	Tin	2	Board Cable/Wire	Shrouded - 4 Wall	Push-Pull	0.135 in	Male Pin	16	All	30 µin	Brass	Square	Gold Gold-Palladium	0.1 in	Black	Solder	0.36 in	0.24 in	1 A	Header	Right Angle Through Hole	Keying Slot	105 °C	-65 °C	UL94 V-0	0.1 in	100 Ąin

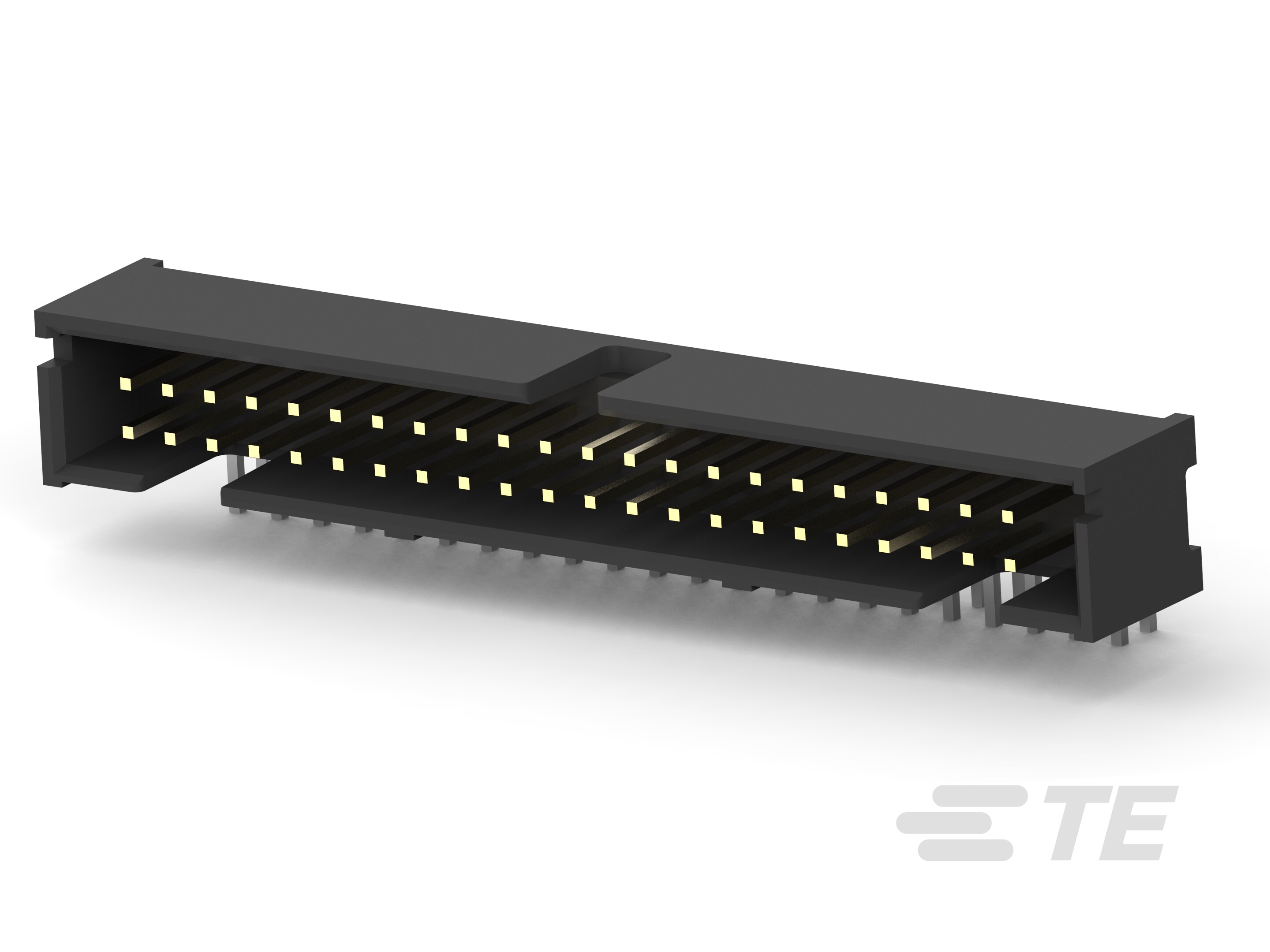

TE Connectivity AMP Connectors 5103311-9	Tin	2	Board Cable/Wire	Shrouded - 4 Wall	Push-Pull	0.135 in	Male Pin	44	All	30 µin	Brass	Square	Gold Gold-Palladium	0.1 in	Black	Solder	0.36 in	0.24 in	1 A	Header	Right Angle Through Hole	Keying Slot	105 °C	-65 °C	UL94 V-0	0.1 in	100 Ąin
TE Connectivity AMP Connectors 5103311-8	Tin	2	Board Cable/Wire	Shrouded - 4 Wall	Push-Pull	0.135 in	Male Pin	40	All	30 µin	Brass	Square	Gold Gold-Palladium	0.1 in	Black	Solder	0.36 in	0.24 in	1 A	Header	Right Angle Through Hole	Keying Slot	105 °C	-65 °C	UL94 V-0	0.1 in	100 Ąin
