322451 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

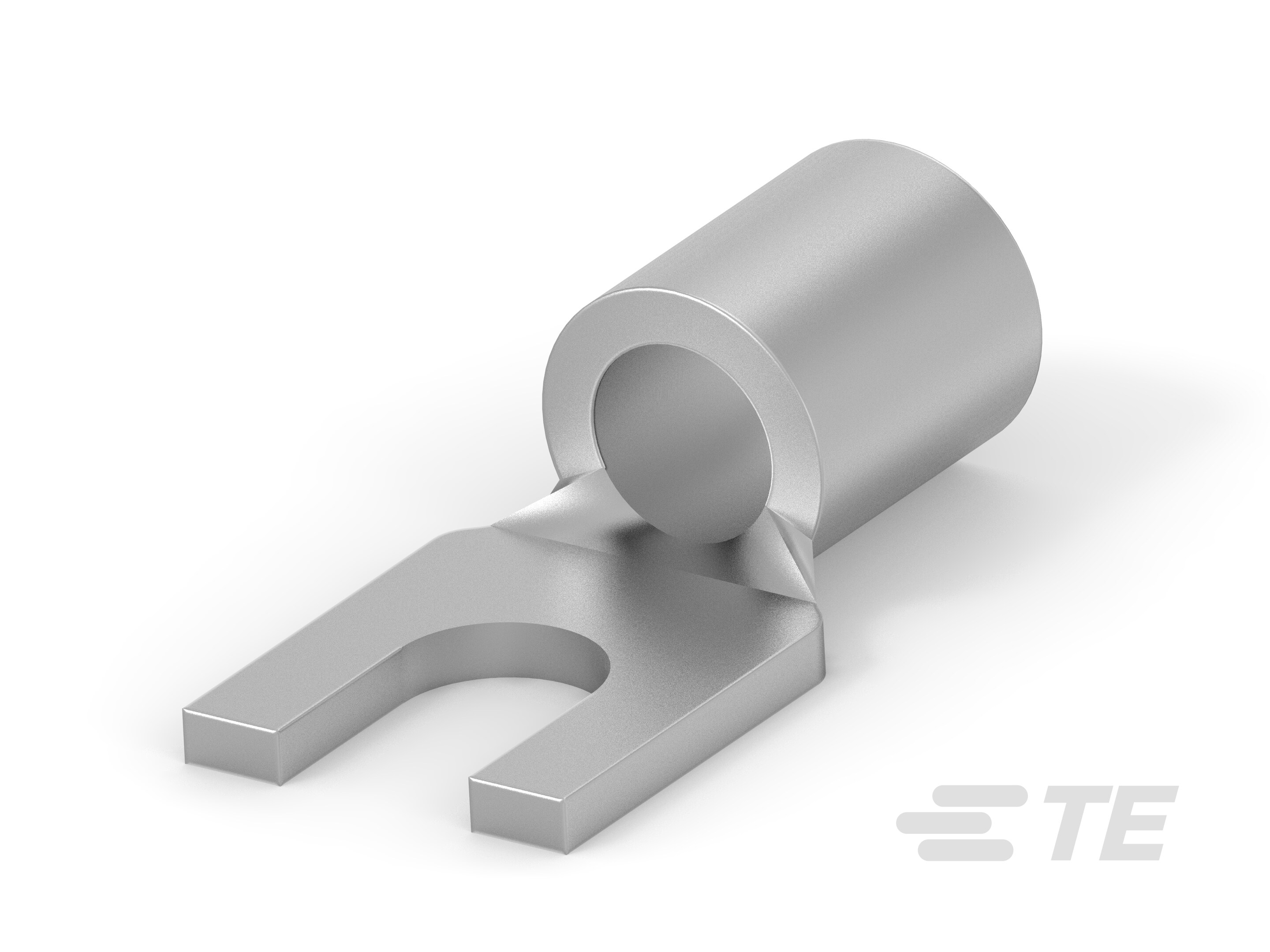

CONN SPADE TERM 10-12AWG #6
| Part | Length - Ring Center to Termination | Length - Termination | Tongue Inside Opening | Mounting Type | Termination | Length - Overall | Contact Finish | Contact Material | Terminal Type | Features | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Insulation | Width - Outer Edges | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.218 in | 0.268 in | 0.145 in | Free Hanging (In-Line) | Crimp | 0.631 in | Tin | Copper | Standard | Brazed Seam Serrated Termination | 12 AWG | 10 AWG | Non-Insulated | 0.282 in | 6 Stud |
