DCNLR Series

DCNLR 200A 48V NP 48Vcoil

Catalog

DCNLR 200A 48V NP 48Vcoil

Part	Switching Voltage DC (Max)	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Must Release Voltage	Contact Rating (Current)	Termination Style	Coil Voltage	Must Operate Voltage	Form A Count	Contact Form
LITTELFUSE DCNLR200NB60	60 VDC	Chassis Mount	-40 °C	85 °C	5 VDC	200 A	Stud	60 VDC	45 VAC	1	SPST-NO
LITTELFUSE DCNLR200NB48	60 VDC	Chassis Mount	-40 °C	85 °C	4 VDC	200 A	Stud	48 V	36 VDC	1	SPST-NO

Catalog

DCNLR 200A 48V NP 48Vcoil

Description

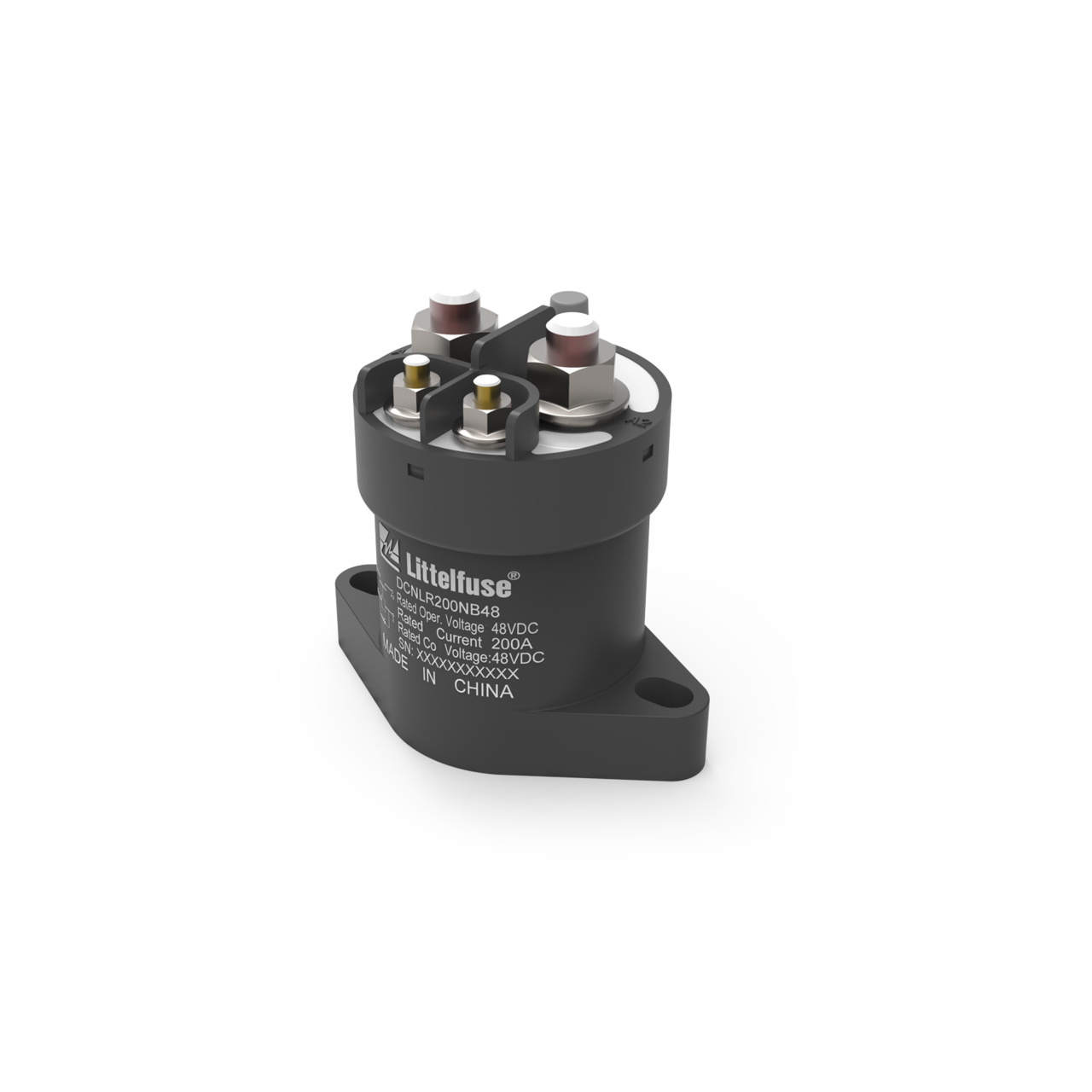

Ideal for safely disconnecting DC energy sources in applications that require continuous run time, the DCNLR Series 60V DC Max 200A Contactor Relay with a 60V Coil features thermoplastic housing and an IP67 rating for protection against water and dust common in harsh environmental conditions. The remote-operated contactor has a space-saving design and can be easily installed in any orientation, making it simple to incorporate into battery electric vehicles (BEV), hybrid electric vehicles (HEV), material handling equipment, telecom power supplies, battery energy storage systems, construction machinery, heavy-duty trucks, buses, and more. This model of the DCNLR Series contactor (DCNLR200NB60) has a 200A continuous current rating and a 60V coil.
