PT02H Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

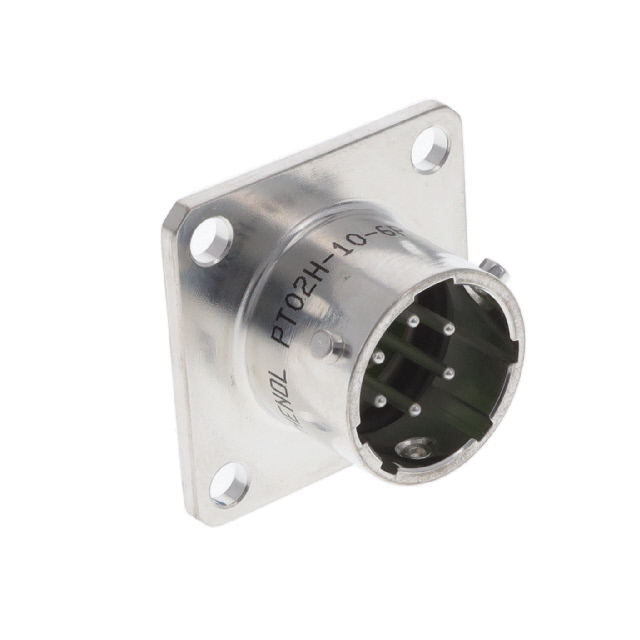

CONN RCPT MALE 6P TIN SOLDER CUP
| Part | Primary Material | Termination | Current Rating | Backshell Material, Plating | Shell Finish | Qualification | Shielding | Shell Size - Insert Length | Shell Size - Insert Width | Shell Material | Number of Positions | Fastening Type | Applications | Mounting Type | Color | Contact Material | Insert Material | Contact Finish - Mating | Orientation | Mounting Feature | Operating Temperature (Max) | Operating Temperature (Min) | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Metal | Solder Cup | 5 A | Aluminum Olive Drab Cadmium | Cadmium Olive Drab Chromate | MIL-DTL-26482 Series I | Unshielded | 10 mm | 6 mm | Aluminum | 6 | Bayonet Lock | Aerospace Industrial Instrumentation Mass Transit Military | Panel Mount | Olive Drab | Copper Alloy | Neoprene | Tin | N (Normal) | Flange | 125 °C | -55 °C | Male Pins Receptacle | Hermetically Sealed |
