215510 Series

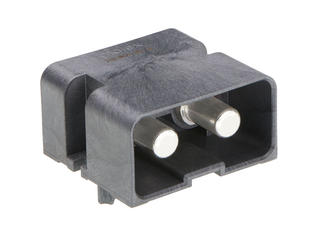

PowerWize BMI 3.40mm, 2-circuit, Solder Tail, Right-Angle Header, Tray
Manufacturer: Molex
Catalog
PowerWize BMI 3.40mm, 2-circuit, Solder Tail, Right-Angle Header, Tray
Beta
⌘K
PowerWize BMI 3.40mm, 2-circuit, Solder Tail, Right-Angle Header, Tray
PowerWize BMI 3.40mm, 2-circuit, Solder Tail, Right-Angle Header, Tray
PowerWize BMI 3.40mm, 2-circuit, Solder Tail, Right-Angle Header, Tray
| Part | Current Rating | Current Rating | Insulation Material | Termination | Contact Finish Thickness - Mating | Contact Material | Pitch - Mating | Contact Finish - Mating | Voltage Rating | Number of Rows | Contact Shape | Contact Length - Post | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish - Post | Insulation Height | Insulation Color | Material Flammability Rating | Number of Positions Loaded | Features | Fastening Type | Contact Type | Number of Positions | Connector Type | Shrouding | Mounting Type | Style | Contact Length - Mating | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0 A | Varies by Wire Gauge | Liquid Crystal Polymer (LCP) | Solder | 125 µin | Copper Alloy | 0.748 in | Silver | 400 V | 1 | Circular | 0.138 in | 125 °C | -40 °C | Silver | 0.951 in | Black | UL94 V-0 | All | Board Guide | Push-Pull | Male Pin Power | 2 | Header | Shrouded - 4 Wall | Right Angle Through Hole | Board Cable/Wire | ||
 Molex | 0 A | Varies by Wire Gauge | Liquid Crystal Polymer (LCP) | Solder | 125 µin | Copper Alloy | 0.669 in | Silver | 600 V | 1 | Circular | 0.138 in | 125 °C | -40 °C | Silver | 0.872 in | Black | UL94 V-0 | All | Board Guide | Push-Pull | Male Pin | 2 | Header | Shrouded - 4 Wall | Right Angle Through Hole | Board | 0.604 in | 125 µin |
 Molex | 0 A | Varies by Wire Gauge | Liquid Crystal Polymer (LCP) | Screw | 125 µin | Copper Alloy | 0.492 in | Silver | 400 V | 1 | Circular | 0.138 in | 125 °C | -40 °C | Silver | 0.687 in | Black | UL94 V-0 | All | Board Guide | Push-Pull | Male Pin | 2 | Header | Shrouded - 4 Wall | Right Angle Through Hole | Board | 0.33 in | 125 µin |
Molex | 0 A | Varies by Wire Gauge | Liquid Crystal Polymer (LCP) | Solder | 125 µin | Copper Alloy | 0.748 in | Silver | 400 V | 1 | Circular | 0.053 in | 125 °C | -40 °C | Silver | 0.951 in | Black | UL94 V-0 | All | Board Guide | Push-Pull | Male Pin Power | 2 | Header | Shrouded - 4 Wall | Right Angle Through Hole | Board Cable/Wire | ||
 Molex | 0 A | Varies by Wire Gauge | Liquid Crystal Polymer (LCP) | Screw | 125 µin | Copper Alloy | 0.669 in | Silver | 600 V | 1 | Circular | 0.053 in | 125 °C | -40 °C | Silver | 0.872 in | Black | UL94 V-0 | All | Board Guide | Push-Pull | Male Pin | 2 | Header | Shrouded - 4 Wall | Right Angle Through Hole | Board | 0.604 in | 125 µin |
