3281 Series

Catalog

CONN SPLICE 16-22 AWG CRIMP

Part	Number of Wire Entries	Insulation	Termination	Features	Terminal Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Contact Material	Diameter - Barrel OD	Diameter - Barrel ID	Wire Gauge	Tab Thickness	Width - Outer Edges	Terminal Style	Length - Overall	Mounting Type	Diameter - Ring ID	Stud/Tab Size	Stud/Tab Size	Stud/Tab Size (Type)
TE Connectivity AMP Connectors 328134	2	Non-Insulated	Crimp	Brazed Seam Serrated Mating Area	Butt Splice Individual Openings Inline	16 AWG	22 AWG
TE Connectivity AMP Connectors 328160		Non-Insulated	Barrel Crimb		Standard			Tin	Copper	0.376 in	0.275 in	4 AWG	0.08 in	0.69 in	No Stud Hole	1.41 in	Free Hanging (In-Line)
TE Connectivity AMP Connectors 328144		Non-Insulated	Crimp		Standard			Tin	Copper	0.314 in	0.219 in	6 AWG	0.06 in	0.66 in	Single Stud Hole	1.41 in	Free Hanging (In-Line)	0.39 in	0.375 in	3 Stud 8 Stud

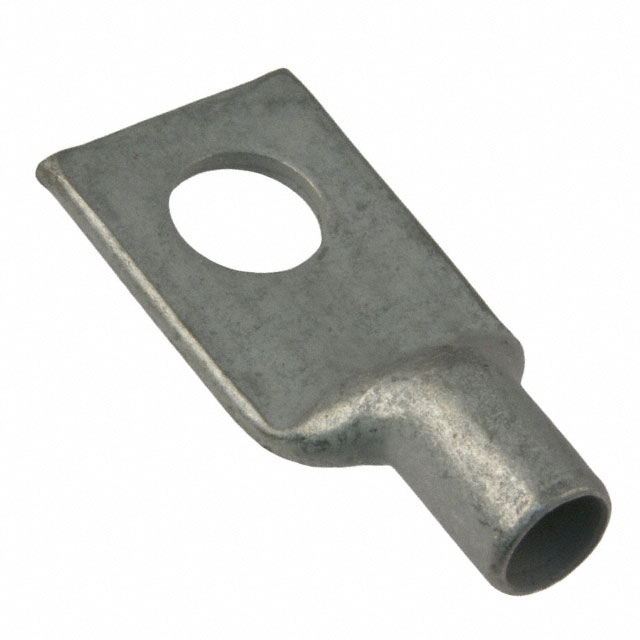

TE Connectivity AMP Connectors 328143		Non-Insulated	Barrel Crimb		Standard			Tin	Copper	0.314 in	0.219 in	6 AWG	0.08 in	0.69 in	Single Stud Hole	1.41 in	Free Hanging (In-Line)	0.328 in	0.3125 in	16 Stud 5 Stud	Stud
TE Connectivity AMP Connectors 328164		Non-Insulated	Barrel Crimb		Standard			Tin	Copper	0.376 in	0.275 in	4 AWG	0.08 in	0.69 in	Single Stud Hole	1.41 in	Free Hanging (In-Line)	0.39 in	0.375 in	3 Stud 8 Stud
