3524 Series

Catalog

RING TONGUE TERMINAL, M6, 1/4", 8 AWG, 8 MM², SOLISTRAND SERIES

Part	Width - Outer Edges	Contact Finish	Contact Material	Thickness	Mounting Type	Wire Gauge	Insulation	Terminal Type	Stud/Tab Size	Termination	Features	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Number of Wire Entries	Color
TE Connectivity AMP Connectors 35247	0.594 in	Tin	Copper	0.048 in	Free Hanging (In-Line)	8 AWG	Non-Insulated	Circular	0.25 Stud	Crimp	Brazed Seam Serrated Termination	1.168 in
TE Connectivity AMP Connectors 35247	0.594 in	Tin	Copper	0.048 in	Free Hanging (In-Line)	8 AWG	Non-Insulated	Circular	0.25 Stud	Crimp	Brazed Seam Serrated Termination	1.168 in

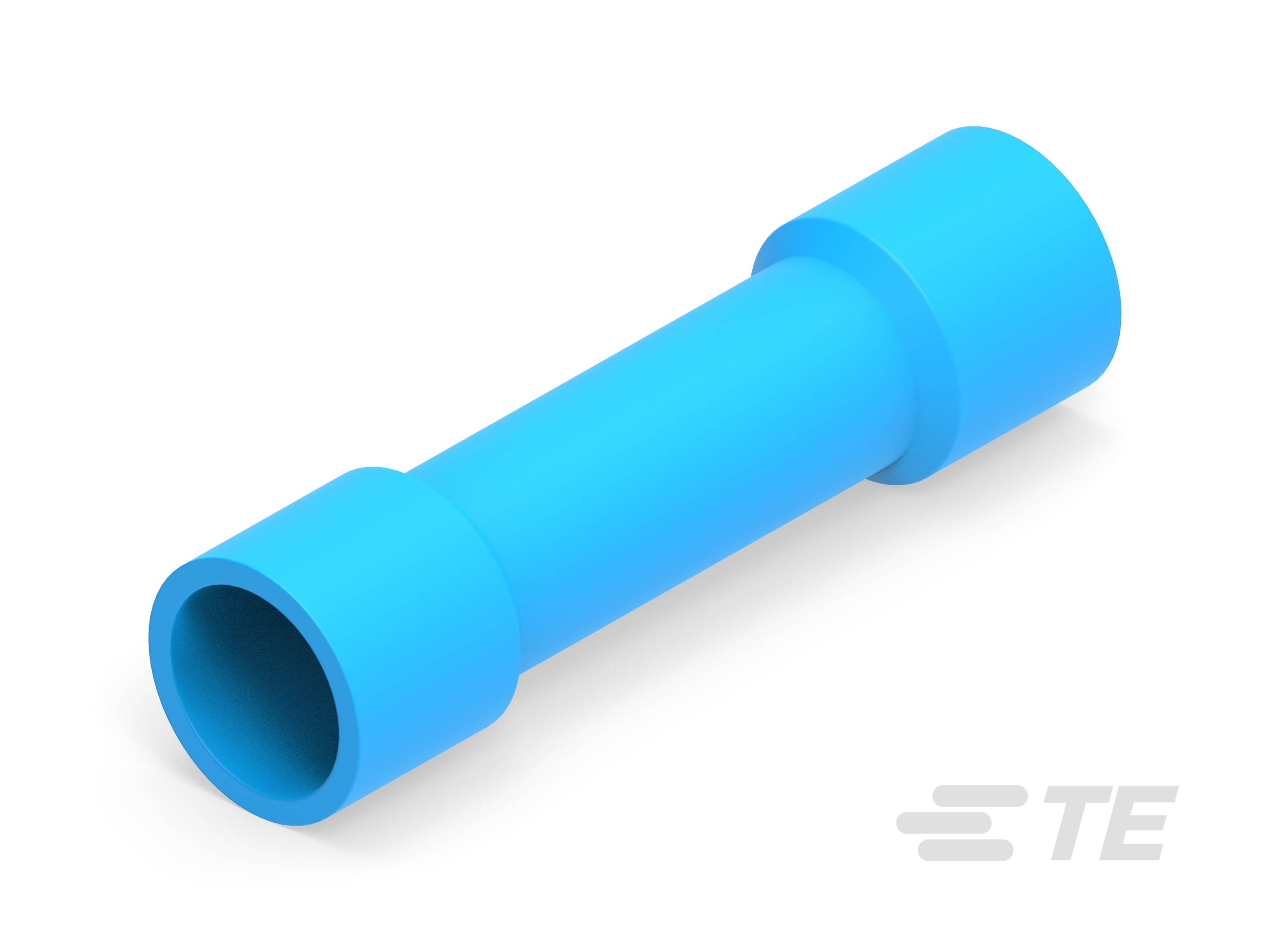

TE Connectivity AMP Connectors 35244							Fully Insulated	Butt Splice Individual Openings Inline		Crimp	Serrated Mating Area		16 AWG	14 AWG	2	Blue
