ITV9550L5045 Series

ITV 9.5*5.0mm 50V 45A

Catalog

ITV 9.5*5.0mm 50V 45A

Part	Mounting Type	Features	Triggerable (Max)	Triggerable (Min)	Fuse Type	Breaking Capacity	Package / Case	Voltage Rating - DC	Current Rating	Approval Agency	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Response Time	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length

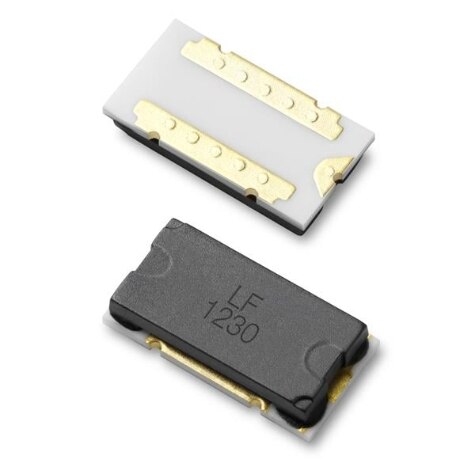

LITTELFUSE ITV9550L5045MR	Surface Mount	43.7 ~ 62V Triggerable	62 V	43.7 V	Board Mount	120 A	Nonstandard SMD	62 VDC	45 A	cURus TUV	Battery Protection	65 °C	-10 °C	Fast Blow	0.079 in	0.197 in	0.366 in

Catalog

ITV 9.5*5.0mm 50V 45A

Description

ITV is a three-terminal surface mountable li-ion battery protector designed to guard against the damage caused by both overcurrent and overcharging. A fuse element is embedded to cut off the circuit when overcurrent issue happens. A heater is also directly embedded under the fuse element, it will generate heat to blow the fuse once overvoltage detected by IC or FET.
