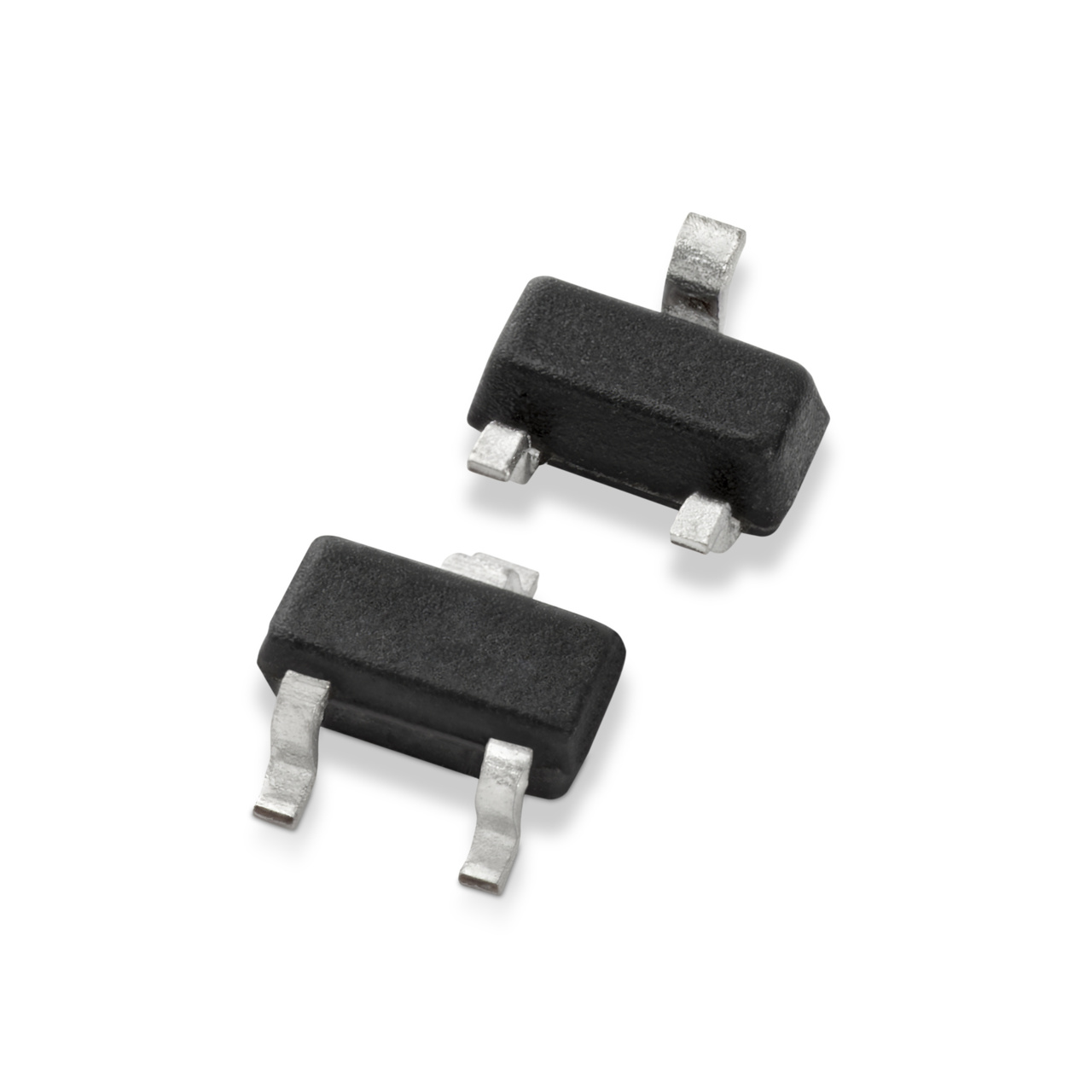

5V 10A 1.2pF 30kV SOT523 2ch Uni-dir TVS
5V 10A 1.2pF 30kV SOT523 2ch Uni-dir TVS
| Part | Voltage - Clamping (Max) (Typ) | Power Line Protection | Grade | Mounting Type | Qualification | Applications | Current - Peak Pulse | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Breakdown (Min) | Capacitance (Max) | Type | Voltage - Reverse Standoff (Max) | Unidirectional Channels | Package Name | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 14 V | No | Automotive | Surface Mount | AEC-Q101 | Ethernet USB | 10 A | -40 °C | 150 °C | 6 V | 1 pF | Zener | 5 V | 2 | SOT-523 | SOT-523 |
