644613 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 9POS 3.96MM

Part	Material Flammability Rating	Contact Material	Pitch - Mating	Contact Finish - Mating	Features	Shrouding	Insulation Material	Insulation Color	Voltage Rating	Contact Finish - Post	Current Rating	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Style	Termination	Fastening Type	Connector Type	Contact Length - Post	Insulation Height	Number of Positions Loaded	Contact Length - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Shape	Mounting Type	Number of Rows	Contact Finish Thickness - Post	Applications
TE Connectivity AMP Connectors 3-644613-9	UL94 V-0	Copper Alloy	0.156 in	Tin	Keying Slot	Shrouded - 1 Wall	Glass Filled Thermoplastic	Natural	600 V	Tin	Varies by Wire Gauge	Male Pin	-55 °C	105 °C	Board Cable/Wire	Solder	Friction Lock	Header	0.125 in	0.3 in	All	0.45 in	150 µin	9	Square	Right Angle Through Hole	1	150 µin	General Purpose Industrial
TE Connectivity AMP Connectors 4-644613-0	UL94 V-0	Copper Alloy	0.156 in	Tin	Keying Slot	Shrouded - 1 Wall	Glass Filled Thermoplastic	Natural	600 V	Tin	Varies by Wire Gauge	Male Pin	-55 °C	105 °C	Board Cable/Wire	Solder	Friction Lock	Header	0.125 in	0.3 in	All	0.45 in	150 µin	10	Square	Right Angle Through Hole	1	150 µin	General Purpose Industrial
TE Connectivity AMP Connectors 644613-2	UL94 V-0	Copper Alloy	0.156 in	Tin-Lead		Shrouded - 1 Wall	Glass Filled Thermoplastic	Natural	600 V	Tin-Lead	Varies by Wire Gauge	Male Pin	-55 °C	105 °C	Board Cable/Wire	Solder	Friction Lock	Header	0.125 in	0.3 in	All	0.45 in	150 µin	2	Square	Right Angle Through Hole	1	150 µin	General Purpose Industrial
TE Connectivity AMP Connectors 644613-3	UL94 V-0	Copper Alloy	0.156 in	Tin-Lead		Shrouded - 1 Wall	Glass Filled Thermoplastic	Natural	600 V	Tin-Lead	Varies by Wire Gauge	Male Pin	-55 °C	105 °C	Board Cable/Wire	Solder	Friction Lock	Header	0.125 in	0.3 in	All	0.45 in	150 µin	3	Square	Right Angle Through Hole	1	150 µin	General Purpose Industrial

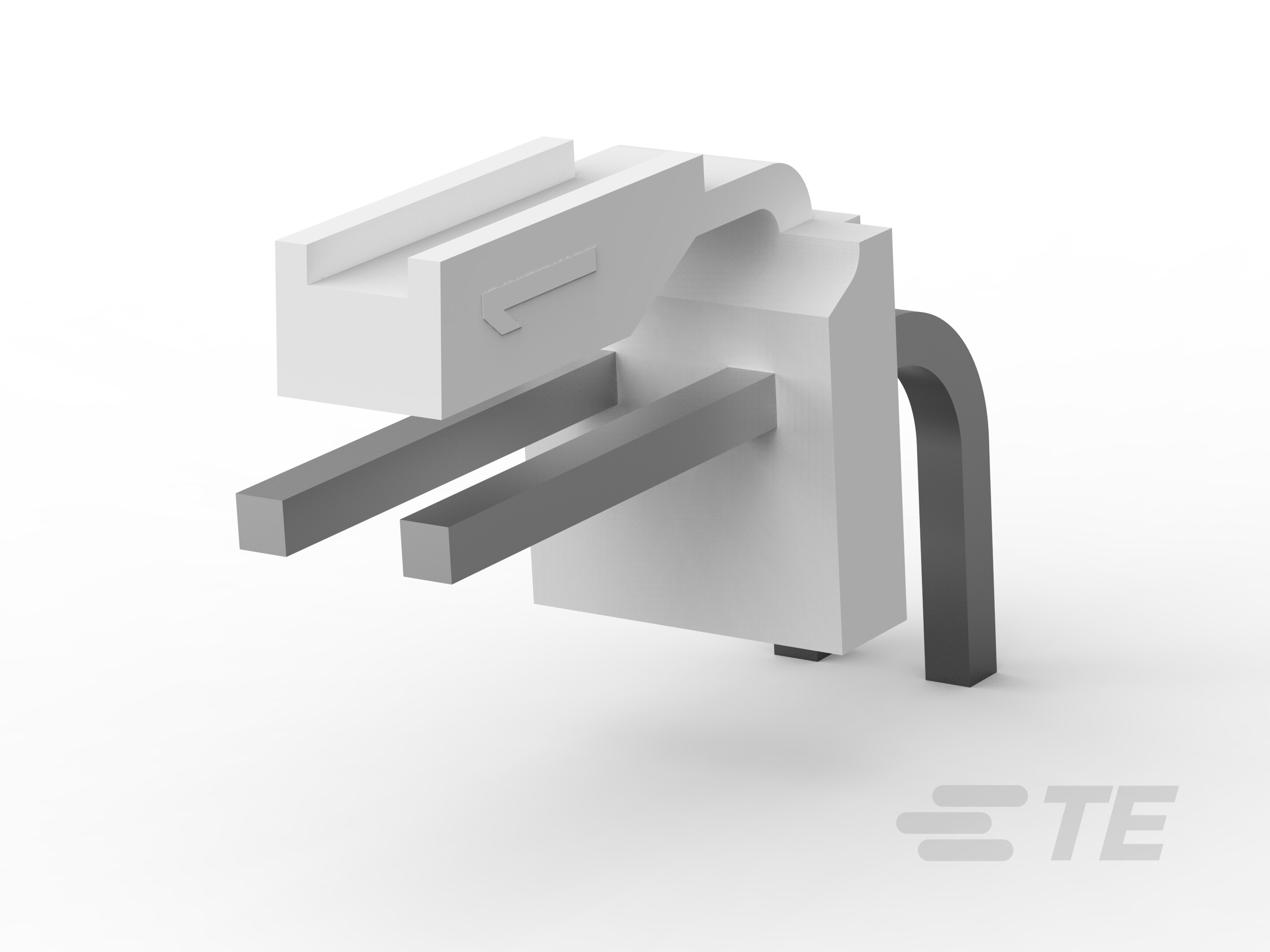

TE Connectivity AMP Connectors 3-644613-2	UL94 V-0	Copper Alloy	0.156 in	Tin		Shrouded - 1 Wall	Glass Filled Thermoplastic	Natural	600 V	Tin	Varies by Wire Gauge	Male Pin	-55 °C	105 °C	Board Cable/Wire	Solder	Friction Lock	Header	0.125 in	0.3 in	All	0.45 in	150 µin	2	Square	Right Angle Through Hole	1	150 µin	General Purpose Industrial
TE Connectivity AMP Connectors 644613-8	UL94 V-0	Copper Alloy	0.156 in	Tin-Lead	Keying Slot	Shrouded - 1 Wall	Glass Filled Thermoplastic	Natural	600 V	Tin-Lead	Varies by Wire Gauge	Male Pin	-55 °C	105 °C	Board Cable/Wire	Solder	Friction Lock	Header	0.125 in	0.3 in	All	0.45 in	150 µin	8	Square	Right Angle Through Hole	1	150 µin	General Purpose Industrial

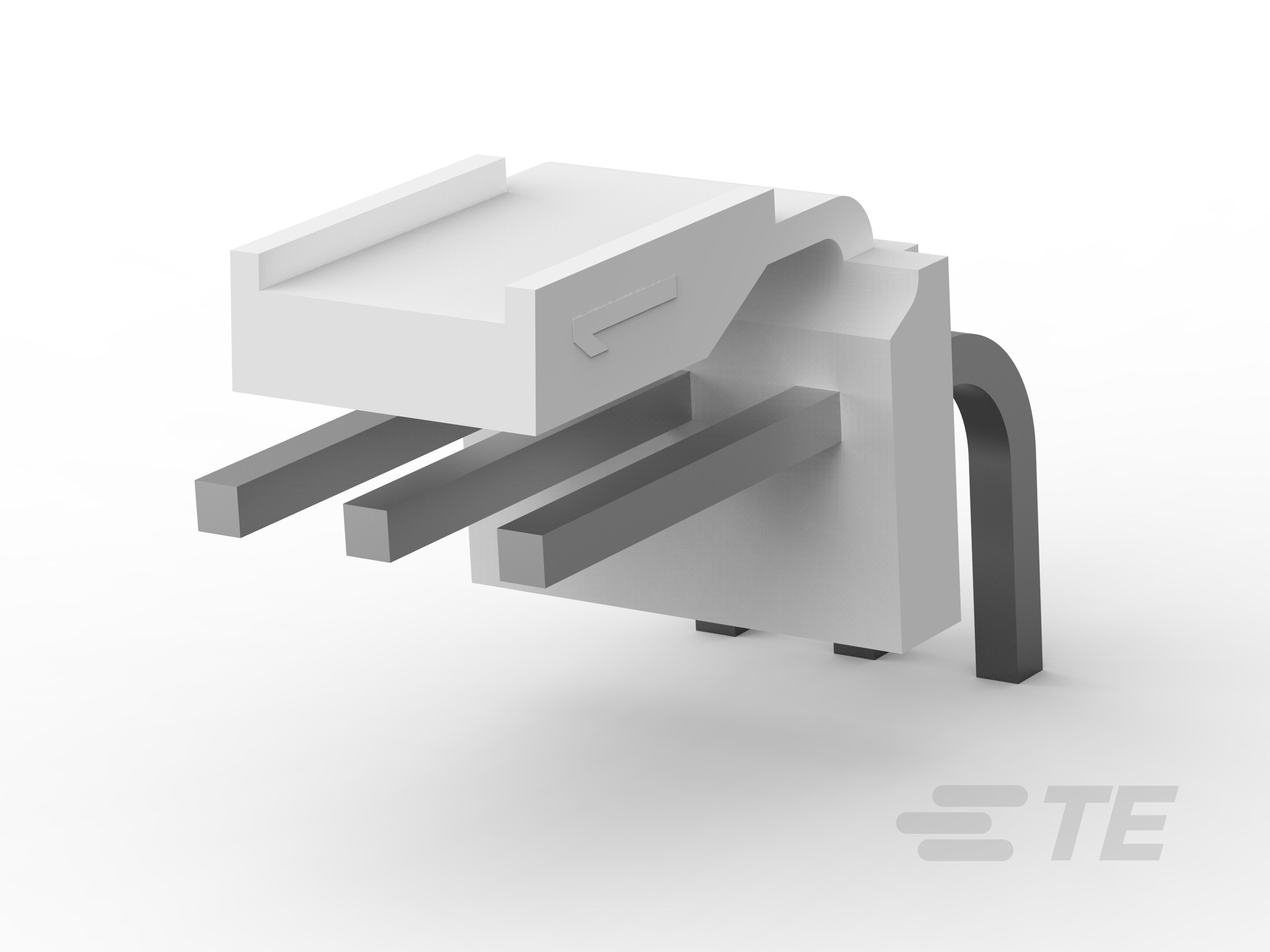

TE Connectivity AMP Connectors 3-644613-3	UL94 V-0	Copper Alloy	0.156 in	Tin		Shrouded - 1 Wall	Glass Filled Thermoplastic	Natural	600 V	Tin	Varies by Wire Gauge	Male Pin	-55 °C	105 °C	Board Cable/Wire	Solder	Friction Lock	Header	0.125 in	0.3 in	All	0.45 in	150 µin	3	Square	Right Angle Through Hole	1	150 µin	General Purpose Industrial
