MW-38-03 Series

Catalog

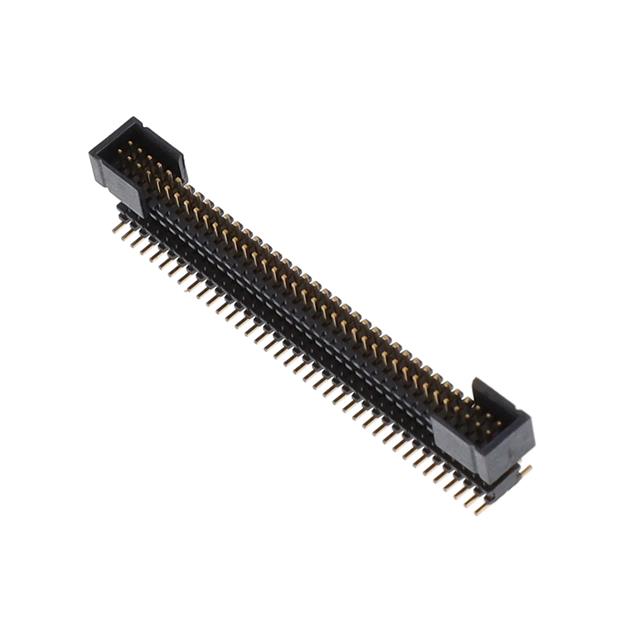

CONN HDR 76POS 0.039 STACK SMD

Part	Length - Stack Height [z]	Length - Stack Height [z]	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Positions	Number of Rows	Termination	Row Spacing	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Contact Finish - Post (Mating)	Color	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]
Samtec Inc. MW-38-03-G-D-095-134	0.095 in	2.413 mm	5.817 mm	0.229 in	76	2	Solder	0.039 in	1 mm	3.404 mm	0.134 in	0.25 Ám	10 Áin	Surface Mount	Gold	Black	0.039 in	1 mm
Samtec Inc. MW-38-03-G-D-095-105-P	0.095 in	2.413 mm	5.08 mm	0.2 in	76	2	Solder	0.039 in	1 mm	2.667 mm	0.105 in	0.25 Ám	10 Áin	Surface Mount	Gold	Black	0.039 in	1 mm
Samtec Inc. MW-38-03-H-D-221-075-EP-A			7.518 mm	0.296 in	76	2	Solder	0.039 in	1 mm	1.905 mm	0.075 in	0.76 µm	30 µin	Surface Mount	Gold	Black Natural	0.039 in	1 mm	5.613 mm	0.221 in
