350502 Series

Catalog

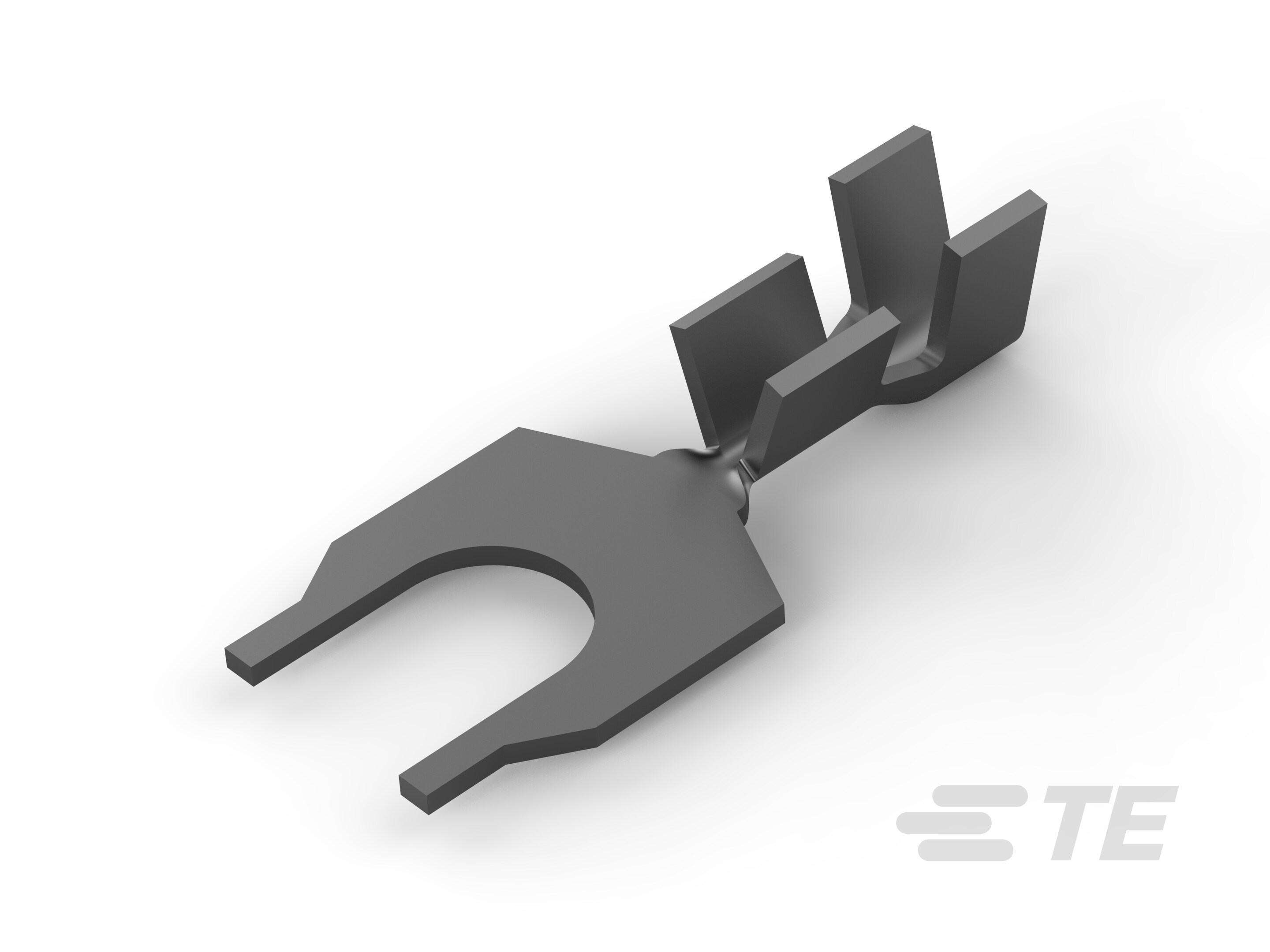

SPADE TONGUE TERMINAL 22-28AWG BRASS 13.84MM REEL/STRIP

Part	Length - Termination	Tongue Inside Opening	Insulation Diameter (Max)	Insulation Diameter (Min)	Length - Ring Center to Termination	Terminal Type	Contact Material	Mounting Type	Insulation	Width - Outer Edges	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size	Termination	Contact Finish
TE Connectivity AMP Connectors 350502-2	0.22 in	0.133 in	0.045 in	0.035 in	0.215 in	Standard	Brass	Free Hanging (In-Line)	Non-Insulated	0.24 in	0.545 in	28 AWG	22 AWG	5 Stud	Crimp
TE Connectivity AMP Connectors 350502-1	0.22 in	0.133 in	0.045 in	0.035 in	0.215 in	Standard	Brass	Free Hanging (In-Line)	Non-Insulated	0.24 in	0.545 in	28 AWG	22 AWG	5 Stud	Crimp	Tin
