44764 Series

Manufacturer: Molex

Catalog

MICRO-FIT BMI RECEPTACLE HEADER, DUAL ROW, RIGHT-ANGLE, WITH PRESS-FIT PLASTIC PEGS, 0.80ΜM GOLD (AU) SELECTIVE, 8 CIRCUITS

Part	Current Rating	Current Rating	Pitch - Mating	Insulation Height	Connector Type	Applications	Termination	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Material	Number of Rows	Voltage Rating	Voltage Rating (Type)	Contact Shape	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Material	Features	Style	Mounting Type	Insulation Color	Contact Type	Number of Positions	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Row Spacing - Mating	Fastening Type
Molex 447640803	0 A	Varies by Wire Gauge	0.118 in	0.41 in	Receptacle	General Purpose Telecommunications	Solder	100 Ąin	Tin	Glass Filled Liquid Crystal Polymer (LCP)	2	600 V	DC	Square	0.155 in	Gold	3 µin	All	Phosphor Bronze Alloy	Blind Mating Board Guide	Board Board or Cable	Right Angle Through Hole	Black	Female Socket	8	UL94 V-0	-40 °C	105 °C	0.118 in	Push-Pull
Molex 447642402	0 A	Varies by Wire Gauge	0.118 in	0.41 in	Receptacle	General Purpose Telecommunications	Solder	100 Ąin	Tin	Glass Filled Liquid Crystal Polymer (LCP)	2	600 V	DC	Square	0.155 in	Gold	15 µin	All	Phosphor Bronze Alloy	Blind Mating Board Guide	Board Board or Cable	Right Angle Through Hole	Black	Female Socket	24 pos	UL94 V-0	-40 °C	105 °C	0.118 in	Push-Pull
Molex 447642201

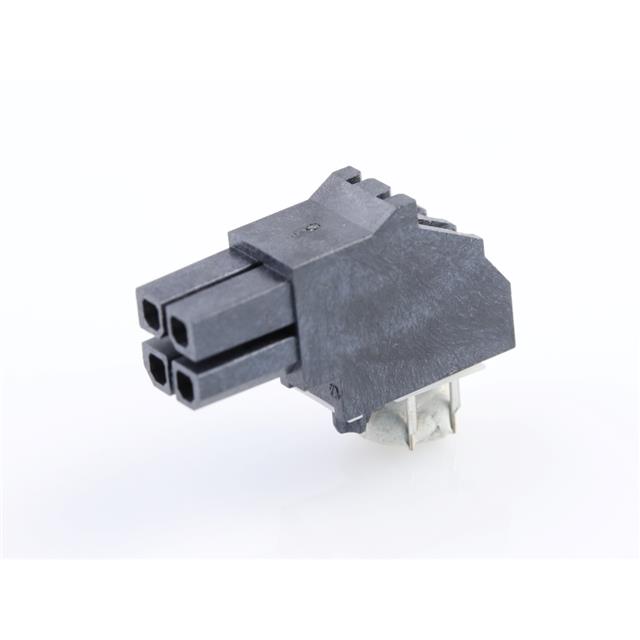

Molex 447640403	0 A	Varies by Wire Gauge	0.118 in	0.41 in	Receptacle	General Purpose Telecommunications	Solder	100 Ąin	Tin	Glass Filled Liquid Crystal Polymer (LCP)	2	600 V	DC	Square	0.155 in	Gold	3 µin	All	Phosphor Bronze Alloy	Blind Mating Board Guide	Board Board or Cable	Right Angle Through Hole	Black	Female Socket	4	UL94 V-0	-40 °C	105 °C	0.118 in	Push-Pull
Molex 447641403	0 A	Varies by Wire Gauge	0.118 in	0.41 in	Receptacle	General Purpose Telecommunications	Solder	100 Ąin	Tin	Glass Filled Liquid Crystal Polymer (LCP)	2	600 V	DC	Square	0.155 in	Gold	3 µin	All	Phosphor Bronze Alloy	Blind Mating Board Guide	Board Board or Cable	Right Angle Through Hole	Black	Female Socket	14	UL94 V-0	-40 °C	105 °C	0.118 in	Push-Pull
