8L3010I Series

Crystal Or Differential to LVCMOS/LVTTL Clock Buffer

Manufacturer: Renesas Electronics Corporation

Catalog

Crystal Or Differential to LVCMOS/LVTTL Clock Buffer

Part	Mounting Type	Differential Input	Differential Output	Package / Case	Package Length	Package Name	Package Width	Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Frequency - Max	Input Ratio	Output Ratio	Number of Circuits	Operating Temperature (Min)	Operating Temperature (Max)	Input	Output
Renesas Electronics Corporation 8L3010ANLGI	Surface Mount	Yes	No	32-VFQFN Exposed Pad	5 mm	32-VFQFPN	5 mm	Fanout Buffer (Distribution) Multiplexer	3.465 V	1.35 V	200 MHz	3	10	1	-40 °C	85 °C	Crystal HCSL LVDS LVPECL	LVCMOS LVTTL
Renesas Electronics Corporation 8L3010ANLGI8	Surface Mount	Yes	No	32-VFQFN Exposed Pad	5 mm	32-VFQFPN	5 mm	Fanout Buffer (Distribution)	3.465 V	1.35 V	200 MHz	2	10	1	-40 °C	85 °C	Crystal HCSL LVDS LVPECL	LVCMOS LVTTL

Catalog

Crystal Or Differential to LVCMOS/LVTTL Clock Buffer

Description

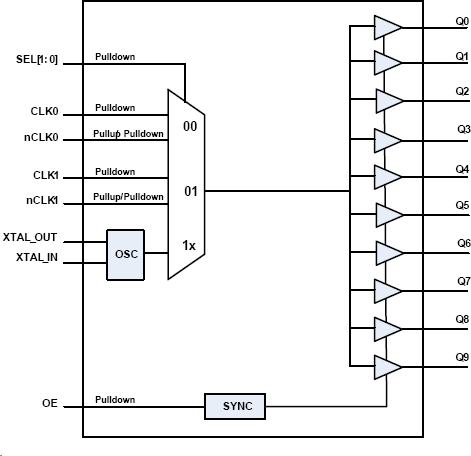

The 8L3010I is a low skew, 1-to-10 LVCMOS / LVTTL Fanout Buffer. The low impedance LVCMOS/LVTTL outputs are designed to drive 50? series or parallel terminated transmission lines. The 8L3010I is characterized at full 3.3V and 2.5V, mixed 3.3V/2.5V, 3.3V/1.8V, 3.3V/1.5V, 2.5V/1.8V and 2.5V/1.5V output operating supply modes. The input clock is selected from two differential clock inputs or a crystal input. The differential input can be wired to accept a single-ended input. The internal oscillator circuit is automatically disabled if the crystal input is not selected.
