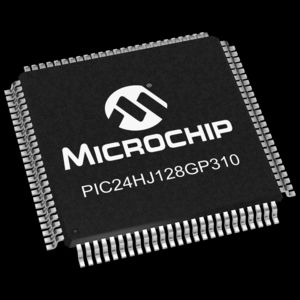

PIC24HJ128GP310 Series

Catalog

IC MCU 16BIT 128KB FLASH 100TQFP

Part	Peripherals	Package Width	Package Name	Package Length	A/D Resolution (bits)	A/D Channels	Program Memory Type	Connectivity	Number of I/O	Mounting Type	Speed	Core Size (Bit Width)	RAM Size Width	RAM Size Depth	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Program Memory Size	Program Memory Depth	Program Memory Width	Package / Case	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Oscillator Type
Microchip Technology PIC24HJ128GP310AT-I/PF	Brown-out Detect DMA POR PWM Reset WDT	14 mm	100-TQFP	14 mm	10 bit 12 bit	32 count	FLASH	I2C IrDA LINbus SPI UART USART	85	Surface Mount	40 MIPs	16 Bit	8 bit	16 K	3.6 V	3 V	128 KB	43 K	24	100-TQFP	PIC	85 °C	-40 °C	Internal
Microchip Technology PIC24HJ128GP310-I/PF	Brown-out Detect DMA POR PWM Reset WDT	14 mm	100-TQFP	14 mm	10 bit 12 bit	32 count	FLASH	I2C IrDA LINbus SPI UART USART	85	Surface Mount	40 MIPs	16 Bit	8 bit	16 K	3.6 V	3 V	128 KB	43 K	24	100-TQFP	PIC	85 °C	-40 °C	Internal
Microchip Technology PIC24HJ128GP310A-I/PF	Brown-out Detect DMA POR PWM Reset WDT	14 mm	100-TQFP	14 mm	10 bit 12 bit	32 count	FLASH	I2C IrDA LINbus SPI UART USART	85	Surface Mount	40 MIPs	16 Bit	8 bit	16 K	3.6 V	3 V	128 KB	43 K	24	100-TQFP	PIC	85 °C	-40 °C	Internal
Microchip Technology PIC24HJ128GP310-I/PT	Brown-out Detect DMA POR PWM Reset WDT	12 mm	100-TQFP	12 mm	10 bit 12 bit	32 count	FLASH	I2C IrDA LINbus SPI UART USART	85	Surface Mount	40 MIPs	16 Bit	8 bit	16 K	3.6 V	3 V	128 KB	43 K	24	100-TQFP	PIC	85 °C	-40 °C	Internal
Microchip Technology PIC24HJ128GP310T-I/PF	Brown-out Detect DMA POR PWM Reset WDT	14 mm	100-TQFP	14 mm	10 bit 12 bit	32 count	FLASH	I2C IrDA LINbus SPI UART USART	85	Surface Mount	40 MIPs	16 Bit	8 bit	16 K	3.6 V	3 V	128 KB	43 K	24	100-TQFP	PIC	85 °C	-40 °C	Internal
Microchip Technology PIC24HJ128GP310AT-I/PT	Brown-out Detect DMA POR PWM Reset WDT	12 mm	100-TQFP	12 mm	10 bit 12 bit	32 count	FLASH	I2C IrDA LINbus SPI UART USART	85	Surface Mount	40 MIPs	16 Bit	8 bit	16 K	3.6 V	3 V	128 KB	43 K	24	100-TQFP	PIC	85 °C	-40 °C	Internal

Catalog

Description

The PIC24H 16-bit device family employs a powerful 16-bit architecture, ideal for applications that rely on high-speed, repetitive computations, as well as control. The devices are pin compatible with the dsPIC33F family of devices, and share a very high degree of compatibility with the dsPIC30F family devices. This allows seamless migration options from/to PIC24F, dsPIC30F and dsPIC33F devices.
