1775443 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

EMIX CONN., 1.5MM PITCH, HDR, V/T, 4P

Part	Insulation Material	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Contact Material	Number of Positions	Contact Length - Mating	Shrouding	Voltage Rating	Insulation Height	Current Rating	Contact Shape	Pitch - Mating	Style	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness - Mating	Number of Rows	Termination	Connector Type	Material Flammability Rating	Contact Type	Contact Finish - Mating	Mounting Type	Applications	Features

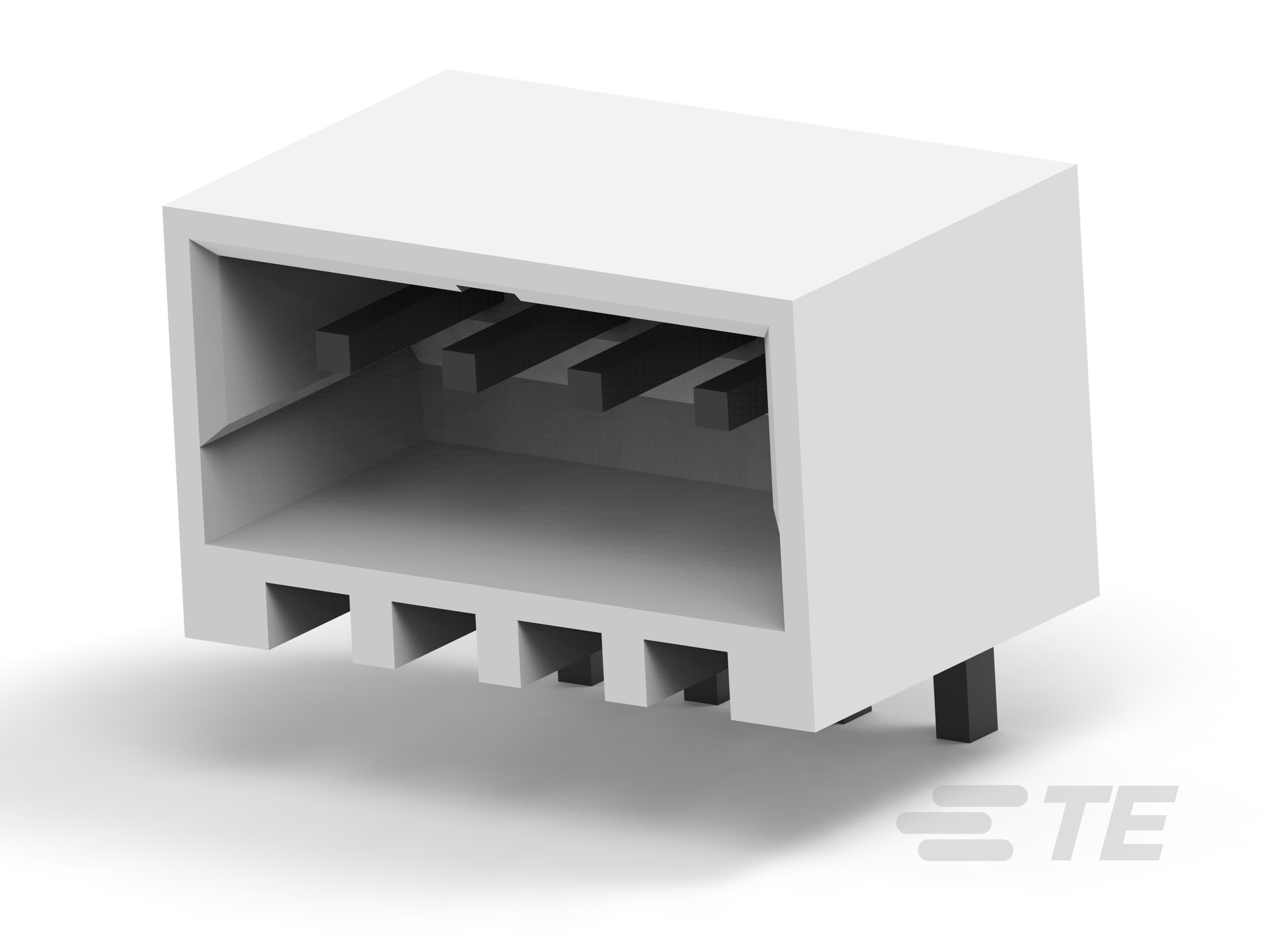

TE Connectivity AMP Connectors 1775443-4	Thermoplastic	All	Tin	Natural	Brass	4	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical

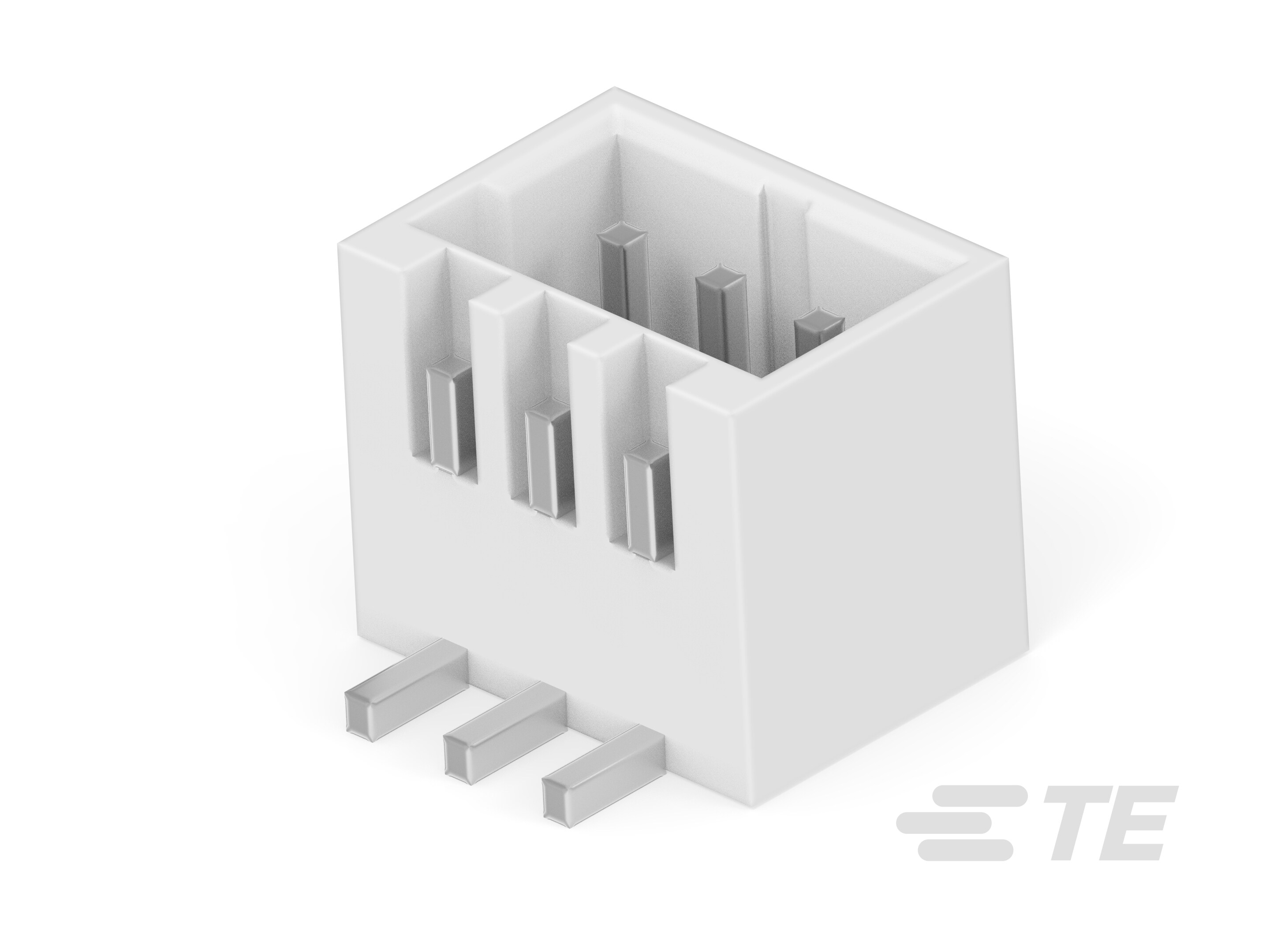

TE Connectivity AMP Connectors 5-1775443-3	Thermoplastic	All	Tin	Natural	Brass	3	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical	Pick and Place
TE Connectivity AMP Connectors 5-1775443-4	Thermoplastic	All	Tin	Natural	Brass	4	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical	Pick and Place
TE Connectivity AMP Connectors 5-1775443-6	Thermoplastic	All	Tin	Natural	Brass	6	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical	Pick and Place

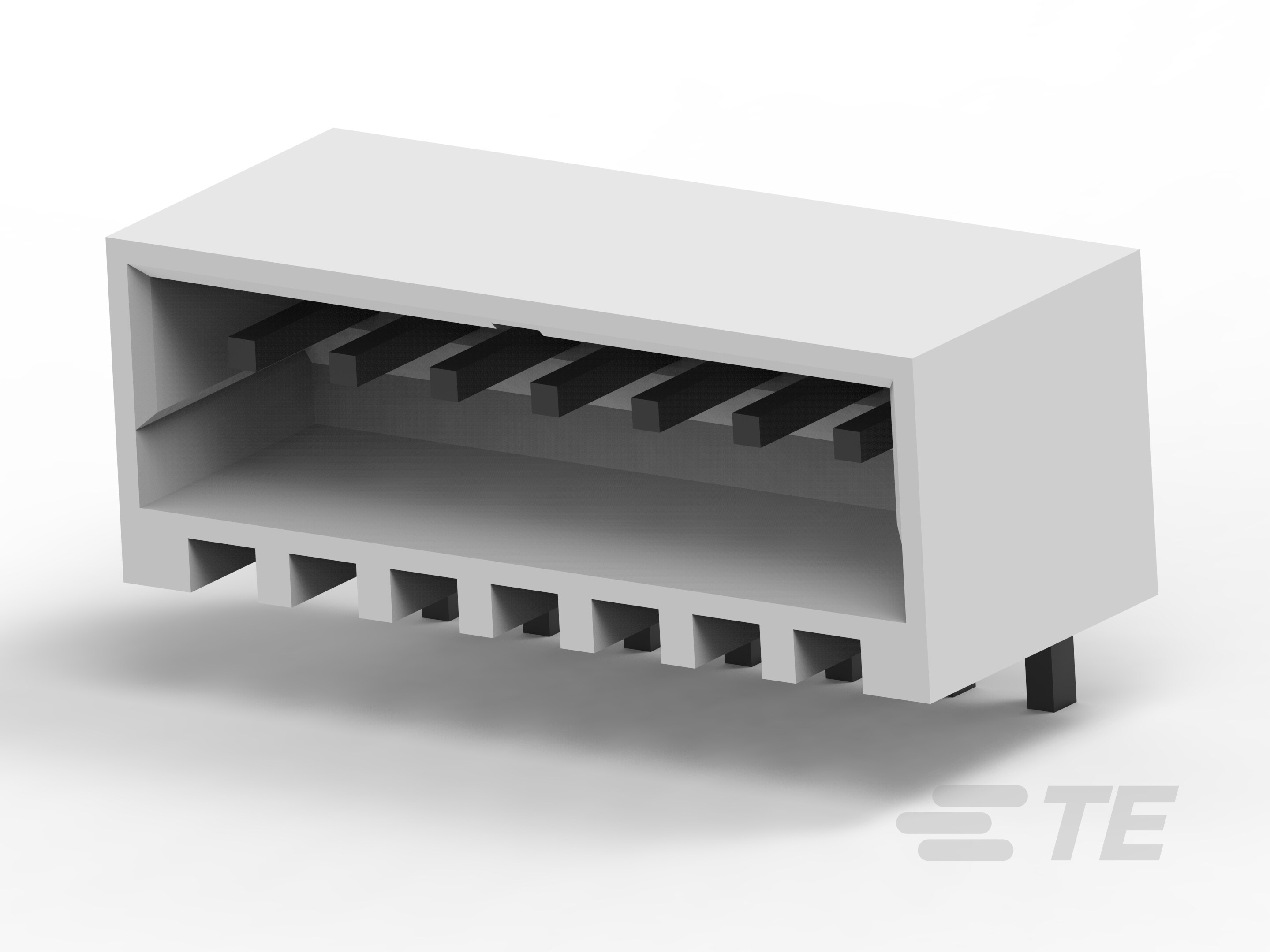

TE Connectivity AMP Connectors 1775443-7	Thermoplastic	All	Tin	Natural	Brass	7	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical

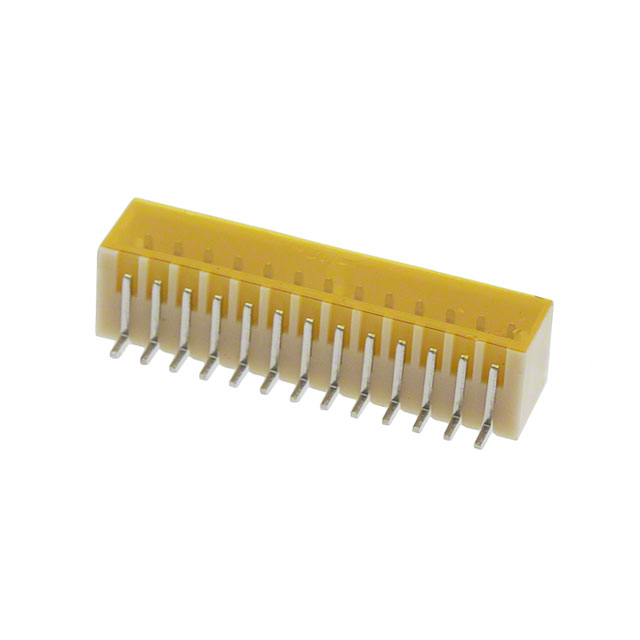

TE Connectivity AMP Connectors 6-1775443-3	Thermoplastic	All	Tin	Natural	Brass	13	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical	Pick and Place
TE Connectivity AMP Connectors 5-1775443-8	Thermoplastic	All	Tin	Natural	Brass	8	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical	Pick and Place
TE Connectivity AMP Connectors 5-1775443-2	Thermoplastic	All	Tin	Natural	Brass	2	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical	Pick and Place
TE Connectivity AMP Connectors 6-1775443-0	Thermoplastic	All	Tin	Natural	Brass	10	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical	Pick and Place
TE Connectivity AMP Connectors 5-1775443-7	Thermoplastic	All	Tin	Natural	Brass	7	0.106 in	Shrouded - 4 Wall	250 V	0.197 in	3 A	Square	0.059 in	Board Cable/Wire	-55 °C	105 °C	100 µin	1	Solder	Header	UL94 V-0	Male Pin	Tin	Surface Mount	Automotive General Purpose Industrial Medical	Pick and Place
