640432 Series

Catalog

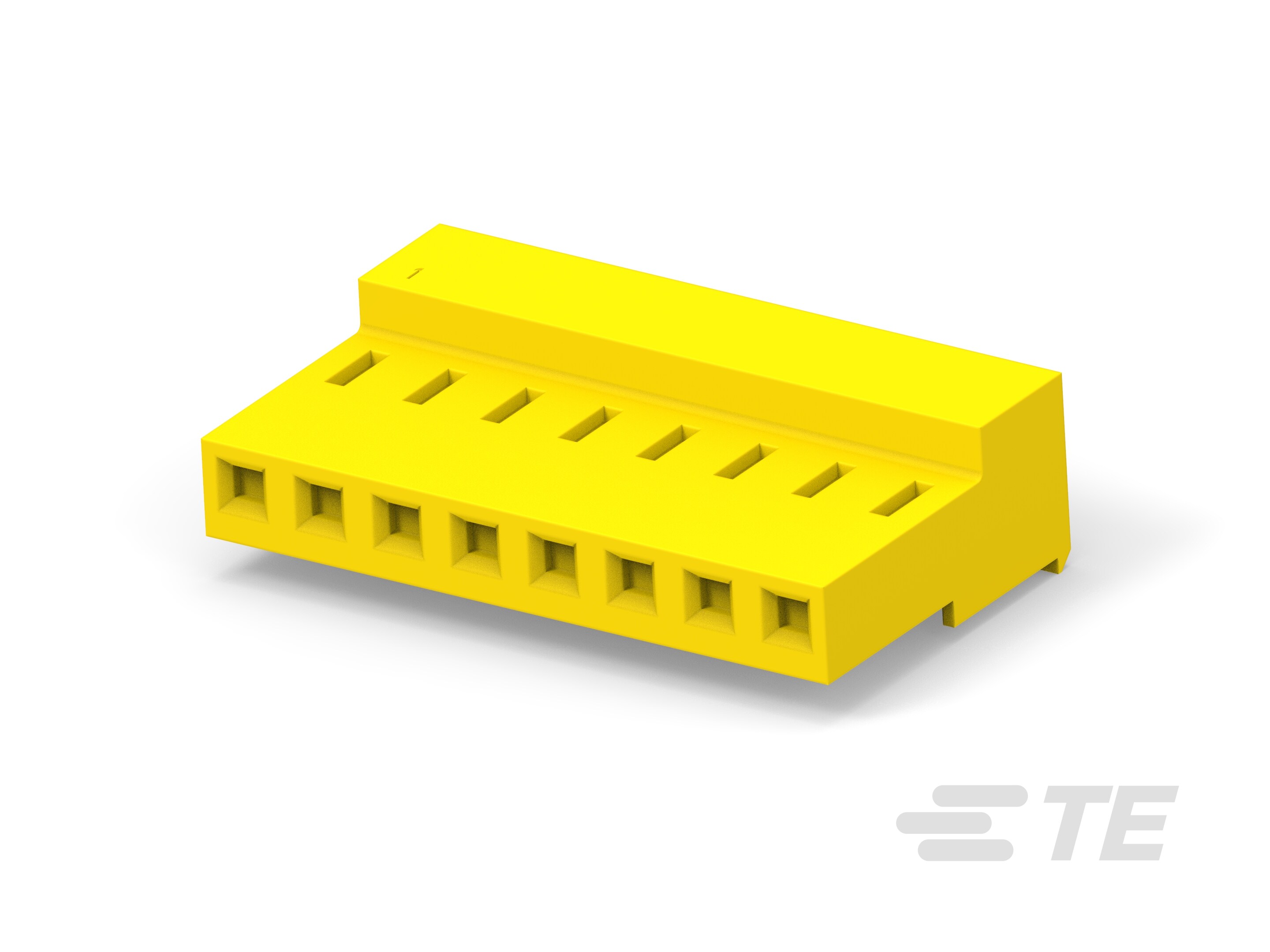

08P MTA156 CONN ASSY 20AWG YEL

Part	Wire Type	Mounting Type	Connector Type	Contact Finish	Cable Termination	Wire Gauge	Contact Type	Features	Number of Positions	Color	Pitch	Contact Finish Thickness	Number of Rows
TE Connectivity AMP Connectors 3-640432-8	Discrete Ribbon Cable	Free Hanging (In-Line)	Receptacle	Tin	IDC	20 AWG	Female Socket	Closed End	8	Yellow	0.156 in	80 µin	1

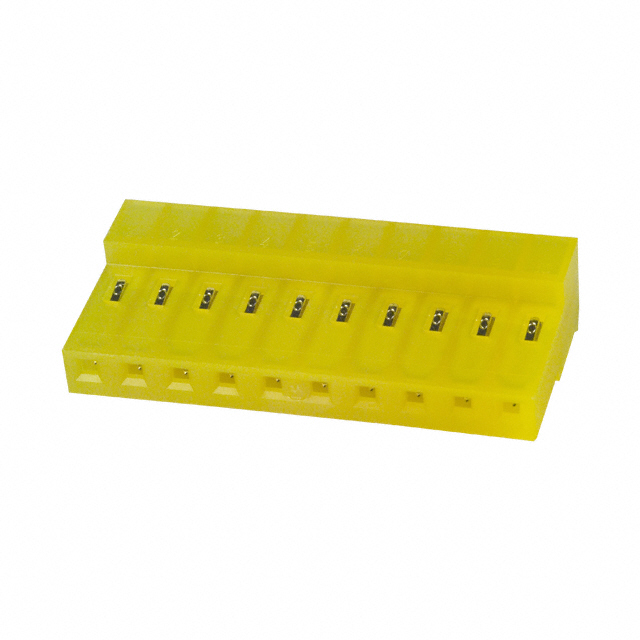

TE Connectivity AMP Connectors 4-640432-0	Discrete Ribbon Cable	Free Hanging (In-Line)	Receptacle	Tin	IDC	20 AWG	Female Socket	Closed End	10	Yellow	0.156 in	80 µin	1

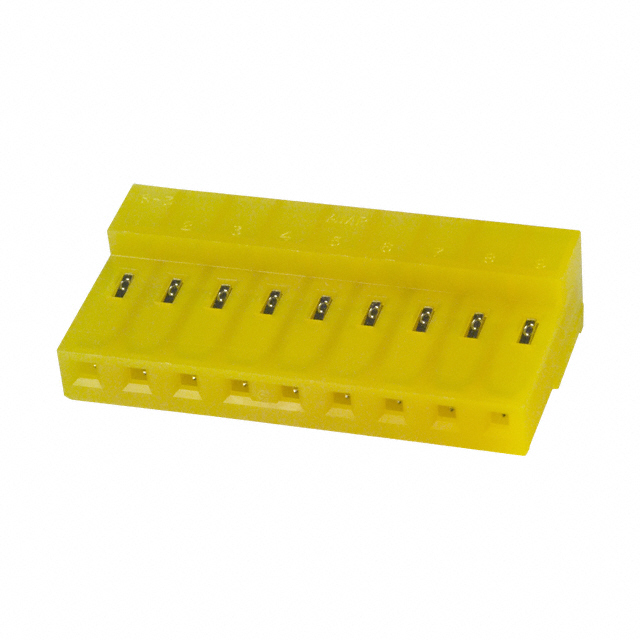

TE Connectivity AMP Connectors 3-640432-9	Discrete Ribbon Cable	Free Hanging (In-Line)	Receptacle	Tin	IDC	20 AWG	Female Socket	Closed End	9	Yellow	0.156 in	80 µin	1
TE Connectivity AMP Connectors 4-640432-2	Discrete Ribbon Cable	Free Hanging (In-Line)	Receptacle	Tin	IDC	20 AWG	Female Socket	Closed End	12	Yellow	0.156 in	80 µin	1
TE Connectivity AMP Connectors 3-640432-7	Discrete Ribbon Cable	Free Hanging (In-Line)	Receptacle	Tin	IDC	20 AWG	Female Socket	Closed End	7	Yellow	0.156 in	80 µin	1

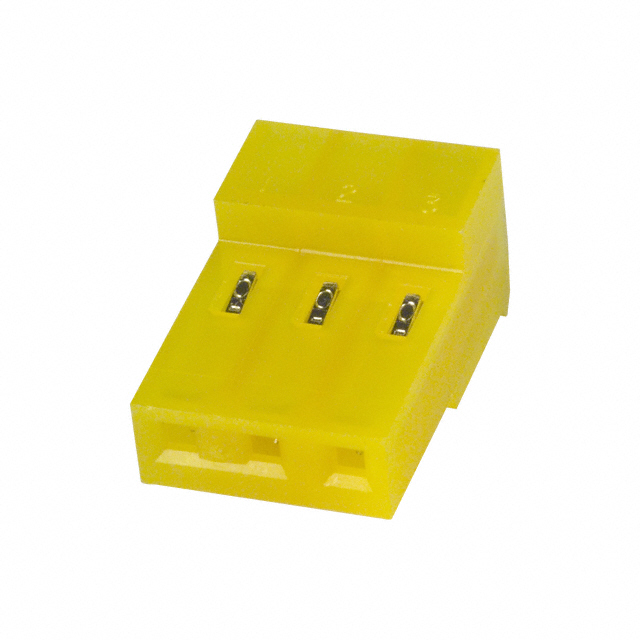

TE Connectivity AMP Connectors 640432-3	Discrete Ribbon Cable	Free Hanging (In-Line)	Receptacle	Tin-Lead	IDC	20 AWG	Female Socket	Closed End	3	Yellow	0.156 in	80 µin	1
