085003 Series

Manufacturer: Molex

Catalog

CONN DIN HDR 96POS PCB RA GOLD

Part	Material - Insulation	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Connector Type	Number of Positions Loaded	Features	Style	Mounting Type	Contact Finish	Level, Class	Number of Positions	Termination	Number of Rows	Contact Finish Thickness	Pitch	Number of Positions Loaded
Molex 0850031483	Polyester Thermoplastic	125 °C	-55 °C	UL94 V-0	Header Male Pins	All	Mounting Clips	C	Right Angle Through Hole	Gold	2	96	Solder	3	24 µin	0.1 in
Molex 0850032385
Molex 0850030218	Polyester Thermoplastic	125 °C	-55 °C	UL94 V-0	Header Male Pins	All		C	Through Hole	Gold	2	96	Solder	3	24 µin	0.1 in
Molex 0850033249	Polyester Thermoplastic	125 °C	-55 °C	UL94 V-0	Header Male Pins		Mounting Clips	C	Right Angle Through Hole	Gold	2	96	Solder	3	24 µin	0.1 in	16
Molex 0850030191	Polyester Thermoplastic	125 °C	-55 °C	UL94 V-0	Header Male Pins	All		C	Right Angle Through Hole	Gold	2	96	Solder	3	24 µin	0.1 in

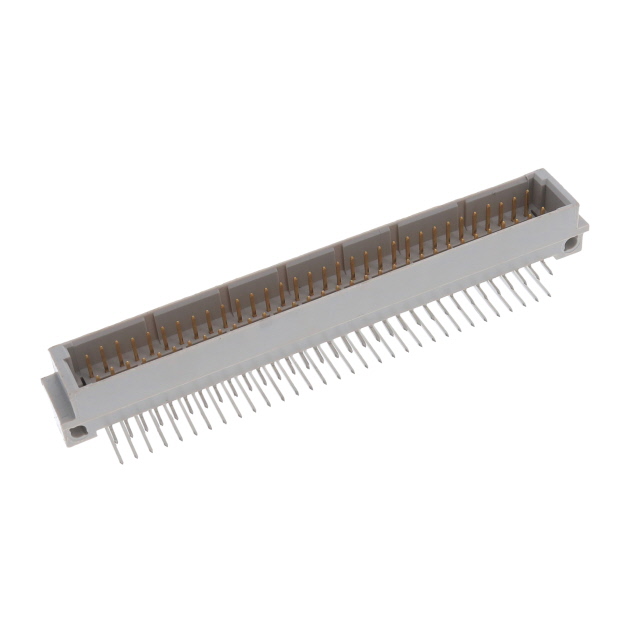

Molex 0850033134	Polyester Thermoplastic	125 °C	-55 °C	UL94 V-0	Header Male Pins	All		C	Right Angle Through Hole	Gold	2	64	Solder	3	24 µin	0.1 in
Molex 0850030189	Polyester Thermoplastic	125 °C	-55 °C	UL94 V-0	Header Male Pins	All		C	Right Angle Through Hole	Gold	2	96	Solder	3	24 µin	0.1 in
Molex 0850032529	Polyester Thermoplastic	125 °C	-55 °C	UL94 V-0	Header Male Pins	All		C	Right Angle Through Hole	Gold	1	96	Solder	3	39.4 Ąin	0.1 in
Molex 0850030050	Polyester Thermoplastic	125 °C	-55 °C	UL94 V-0	Header Male Pins			C/2 (1/2 C)	Right Angle Through Hole	Gold	2	48	Solder	3	24 µin	0.1 in	32
Molex 0850032799	Polyester Thermoplastic	125 °C	-55 °C	UL94 V-0	Header Male Pins	All	Mounting Clips	C	Right Angle Through Hole	Gold	3	96	Solder	3	10 Ąin	0.1 in
