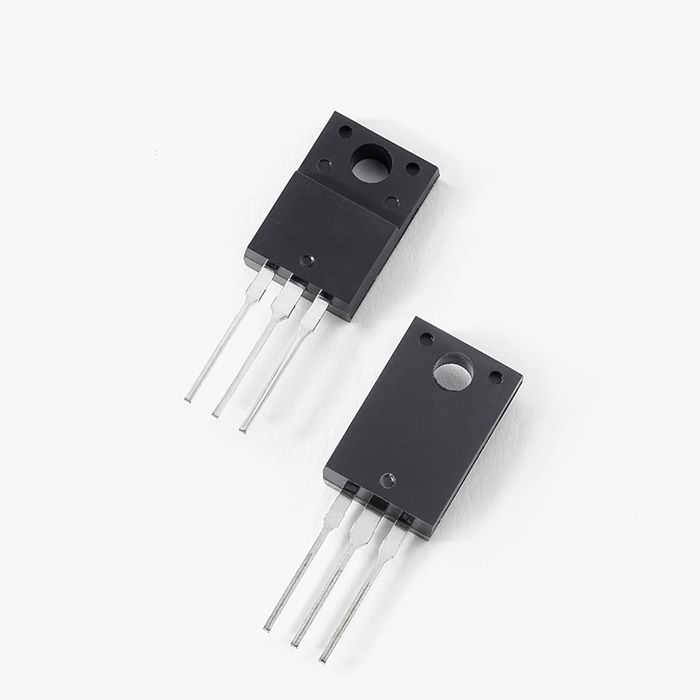

DURF Series
Manufacturer: LITTELFUSE
Beta
⌘K
600V 30A ULTRAFAST RECTIFIER DUR SERIES
| Part | Technology | Diode Pair Count | Diode Configuration | Package / Case | Current - Reverse Leakage | Reverse Recovery Time (trr) | Current - Average Rectified (Io) (per Diode) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Voltage - DC Reverse (Vr) (Max) | Package Name | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Voltage - Forward (Vf) (Max) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | Standard | 1 pair | Common Cathode | Isolated Tab TO-220-3 Full Pack | 100 µA | 50 ns | 15 A | 150 °C | -55 °C | 600 V | ITO-220AB | 500 ns | 200 mA | 2.03 V | Through Hole |
