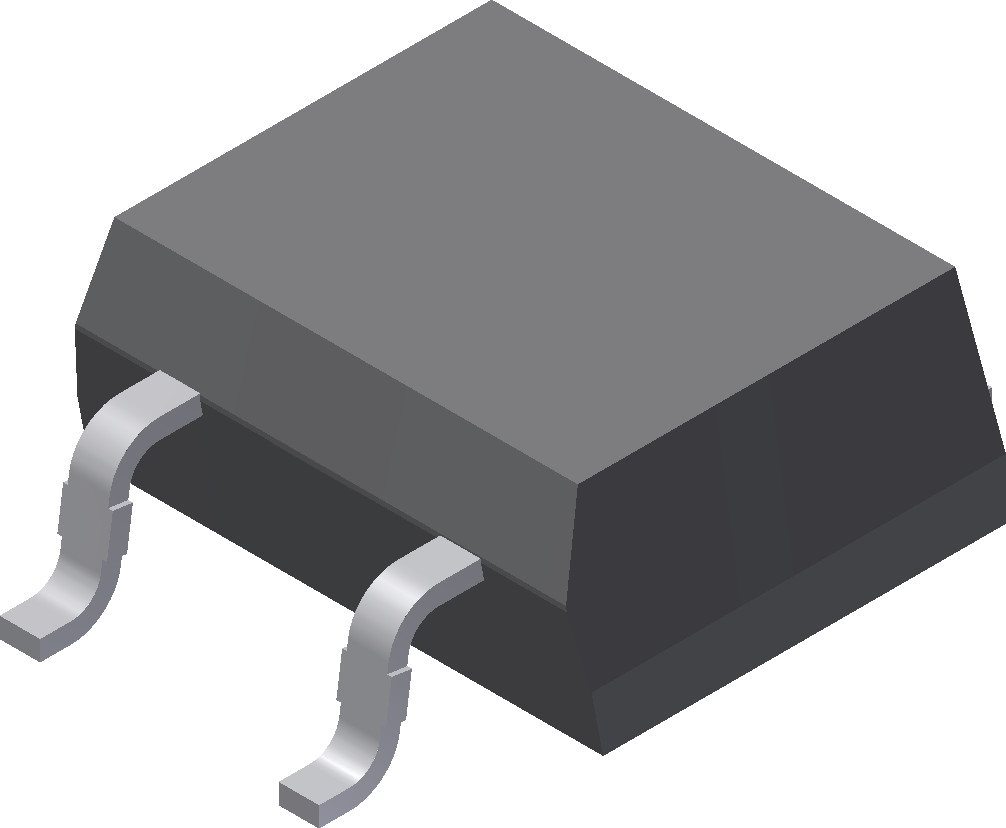

Power Diode Discretes-Rectifier TO-252D
Description
AI
The discrete Standard Diode series comes with a broad variety of packages and breakdown voltages up to 1800V.
Beta
⌘K
Power Diode Discretes-Rectifier TO-252D
Power Diode Discretes-Rectifier TO-252D
| Part | Technology | Package / Case | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Speed - Recovery Time | Package Name | Current - Average Rectified (Io) | Current - Reverse Leakage | Voltage - DC Reverse (Vr) (Max) | Voltage - Forward (Vf) (Max) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Mounting Type | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Standard | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | TO-252AA | 10 A | 5 µA | 1600 V | 1.55 V | 175 °C | -55 °C | Surface Mount | 1 pF |
LITTELFUSE | Standard | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | TO-252AA | 10 A | 5 µA | 1600 V | 1.55 V | 175 °C | -55 °C | Surface Mount | 1 pF |
