AVR128DB48 Series

Catalog

AVR128DB48 CURIOSITY NANO EVALUATION KIT ELMCU TOOLS ROHS COMPLIANT: YES

Part	Board Type	Suggested Programming Environment	Contents	Core Processor	Platform	Mounting Type	Utilized IC / Part	Type	Number of I/O	Program Memory Type	Package / Case	Package Length	Package Name	Package Width	Core Size (Bit Width)	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)	Oscillator Type	Operating Temperature (Max)	Operating Temperature (Min)	Peripherals	D/A Channels	D/A Resolution (bits)	A/D Resolution (bits)	A/D Channels	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Speed	RAM Size Width	RAM Size Depth	Connectivity

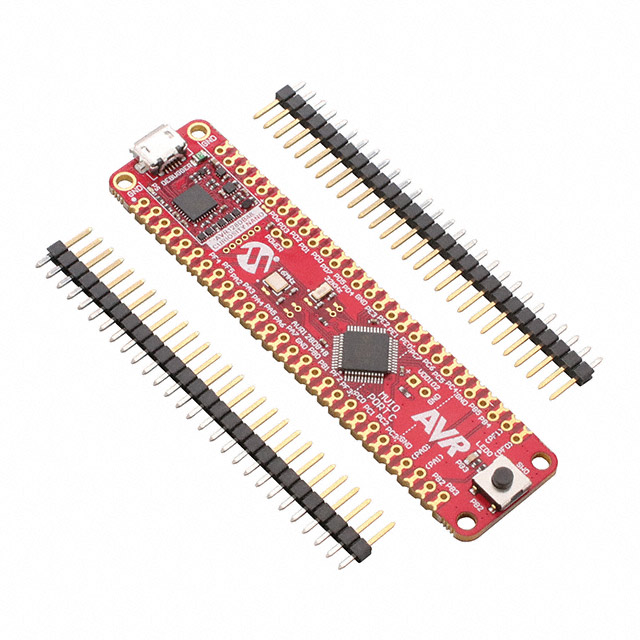

Microchip Technology EV35L43A	Evaluation Platform	Atmel Studio MPLAB X	Accessories Board	AVR	Curiosity Nano	Fixed	AVR128DB48	MCU 8-Bit
Microchip Technology AVR128DB48-I/PT				AVR		Surface Mount			41	FLASH	48-TQFP	7 mm	48-TQFP	7 mm	8 Bit	128 K	128KB	8	Internal	85 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	1 count	10 bit	12 bit	18 count	1.8 V	5.5 V	24 MHz	8 bit	16 K	I2C SPI UART USART
Microchip Technology AVR128DB48-I/6LX				AVR		Surface Mount			41	FLASH	48-VFQFN Exposed Pad	6 mm	48-VQFN	6 mm	8 Bit	128 K	128KB	8	Internal	85 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	1 count	10 bit	12 bit	18 count	1.8 V	5.5 V	24 MHz	8 bit	16 K	I2C SPI UART USART
Microchip Technology AVR128DB48T-E/PT				AVR		Surface Mount			41	FLASH	48-TQFP	7 mm	48-TQFP	7 mm	8 Bit	128 K	128KB	8	Internal	125 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	1 count	10 bit	12 bit	18 count	1.8 V	5.5 V	24 MHz	8 bit	16 K	I2C SPI UART USART
Microchip Technology AVR128DB48T-I/PT				AVR		Surface Mount			41	FLASH	48-TQFP	7 mm	48-TQFP	7 mm	8 Bit	128 K	128KB	8	Internal	85 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	1 count	10 bit	12 bit	18 count	1.8 V	5.5 V	24 MHz	8 bit	16 K	I2C SPI UART USART
Microchip Technology AVR128DB48T-I/6LX				AVR		Surface Mount			41	FLASH	48-VFQFN Exposed Pad	6 mm	48-VQFN	6 mm	8 Bit	128 K	128KB	8	Internal	85 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	1 count	10 bit	12 bit	18 count	1.8 V	5.5 V	24 MHz	8 bit	16 K	I2C SPI UART USART
Microchip Technology AVR128DB48T-E/6LX				AVR		Surface Mount			41	FLASH	48-VFQFN Exposed Pad	6 mm	48-VQFN	6 mm	8 Bit	128 K	128KB	8	Internal	125 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	1 count	10 bit	12 bit	18 count	1.8 V	5.5 V	24 MHz	8 bit	16 K	I2C SPI UART USART
Microchip Technology AVR128DB48-E/6LX				AVR		Surface Mount			41	FLASH	48-VFQFN Exposed Pad	6 mm	48-VQFN	6 mm	8 Bit	128 K	128KB	8	Internal	125 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	1 count	10 bit	12 bit	18 count	1.8 V	5.5 V	24 MHz	8 bit	16 K	I2C SPI UART USART
Microchip Technology AVR128DB48-E/PT				AVR		Surface Mount			41	FLASH	48-TQFP	7 mm	48-TQFP	7 mm	8 Bit	128 K	128KB	8	Internal	125 °C	-40 °C	Brown-out Detect POR PWM Reset WDT	1 count	10 bit	12 bit	18 count	1.8 V	5.5 V	24 MHz	8 bit	16 K	I2C SPI UART USART
