524 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

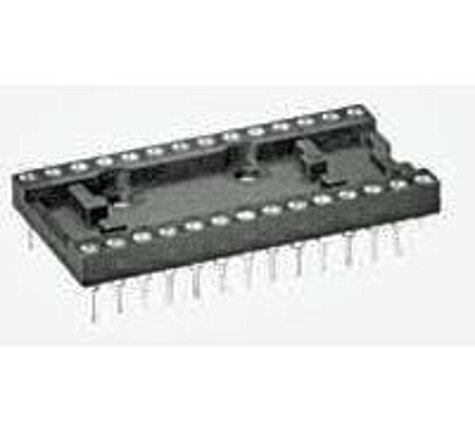

IC & COMPONENT SOCKETS 24P MACH DIP SKT
| Part | Termination Post Length | Contact Resistance | Pitch - Post | Pitch - Mating | Contact Material - Mating | Contact Material - Post | Row Spacing | Type | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Grid Rows | Number of Positions or Pins (Grid) | Grid Columns | Termination | Contact Finish Thickness - Mating | Contact Finish - Mating | Features | Material Flammability Rating | Current Rating | Housing Material | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 in | 10 mOhm | 0.1 in | 0.1 in | Beryllium Copper | Brass | 0.4 in | 0.4" (10.16mm) Row Spacing DIP | 125 °C | -55 °C | Through Hole | 2 | 24 | 12 | Solder | 25 µin | Gold | Closed Frame | ||||
 TE Connectivity AMP Connectors | 0.125 in | 10 mOhm | 0.1 in | 0.1 in | Beryllium Copper | Brass Copper | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | 105 °C | -55 °C | Through Hole | 2 | 24 | 12 | Solder | Tin-Lead | Closed Frame | UL94 V-0 | 3 A | Polyester | Tin-Lead |
