3299 Series

Catalog

CONN SPADE TERM 10-12AWG #8

Part	Length - Ring Center to Termination	Length - Termination	Tongue Inside Opening	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Termination	Mounting Type	Insulation	Terminal Type	Contact Finish	Features	Width - Outer Edges	Stud/Tab Size	Length - Overall	Thickness	Color	Insulation Diameter (Max)	Insulation Diameter (Min)	Material - Insulation	Wire Gauge
TE Connectivity AMP Connectors 32995	0.296 in	0.268 in	0.171 in	12 AWG	10 AWG	Copper	Crimp	Free Hanging (In-Line)	Non-Insulated	Standard	Tin	Brazed Seam Serrated Termination	0.406 in	8 Stud	0.772 in

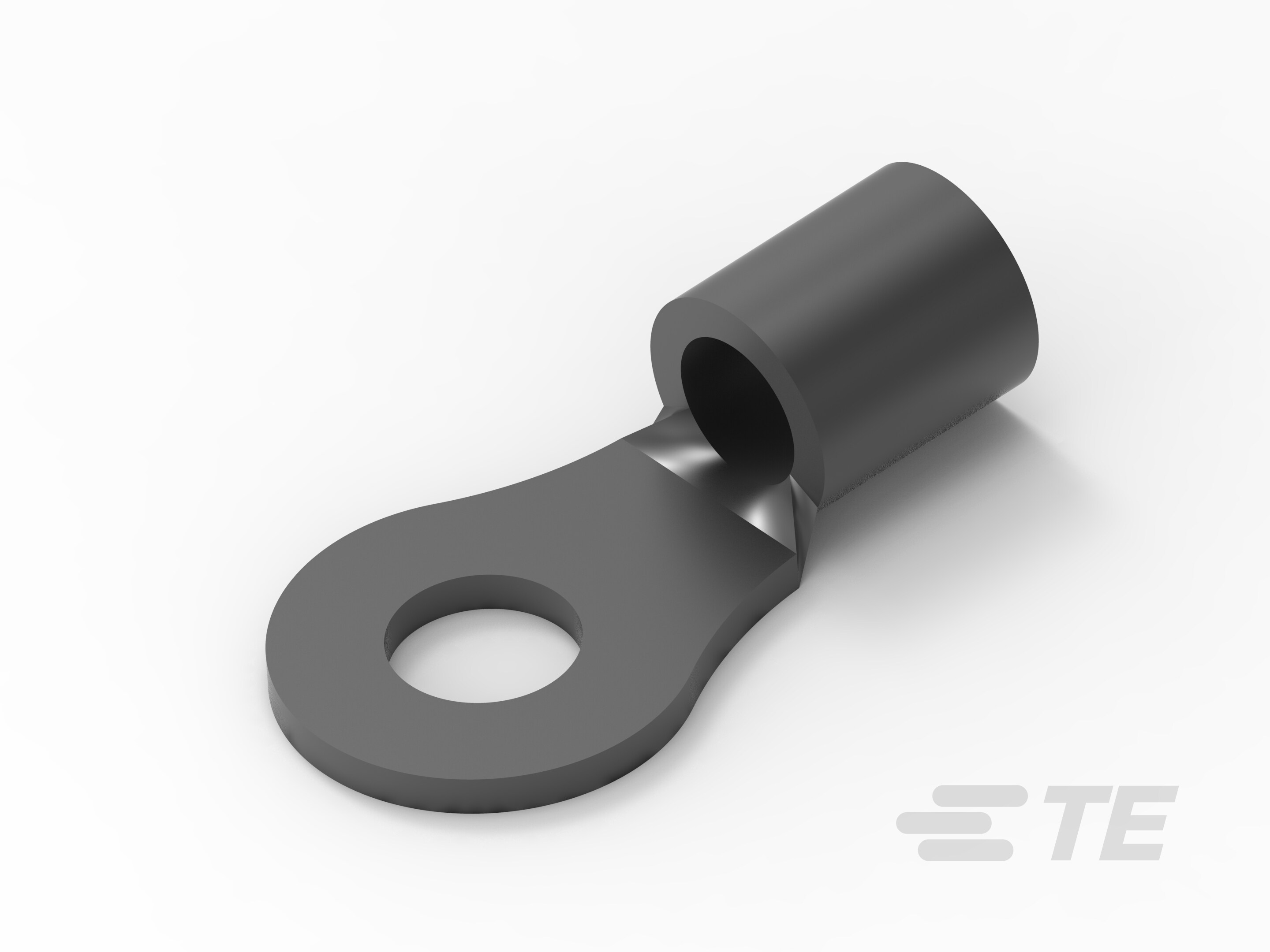

TE Connectivity AMP Connectors 32994				12 AWG	10 AWG	Copper	Crimp	Free Hanging (In-Line)	Non-Insulated	Circular	Tin	Brazed Seam Serrated Termination	0.375 in	8 Stud	0.765 in	0.039 in
TE Connectivity AMP Connectors 329966				22 AWG	16 AWG	Copper	Crimp	Free Hanging (In-Line)	Non-Insulated	Circular	Tin	Brazed Seam Serrated Termination	0.713 in	0.5 Stud	1.07 in	0.031 in

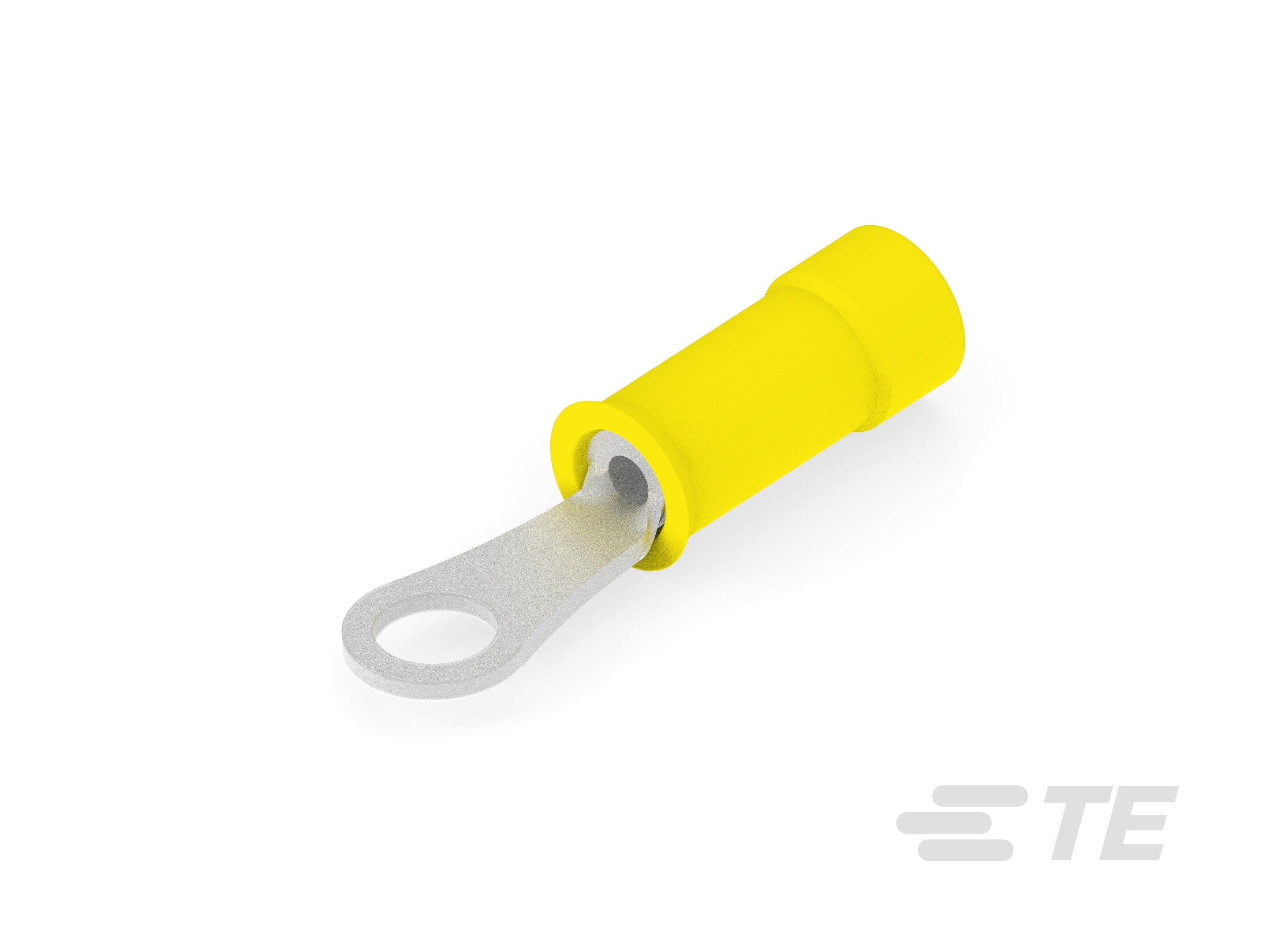

TE Connectivity AMP Connectors 329951				26 AWG	22 AWG	Copper	Crimp	Free Hanging (In-Line)	Insulated	Circular	Tin	Serrated Termination	0.14 in	2 Stud	0.615 in	0.018 in	Yellow	0.082 in	0.05 in	Nylon PA Polyamide
TE Connectivity AMP Connectors 32996						Copper	Crimp	Free Hanging (In-Line)	Non-Insulated	Circular	Tin	Brazed Seam Serrated Termination	0.469 in	8 Stud	0.933 in	0.048 in					8 AWG
