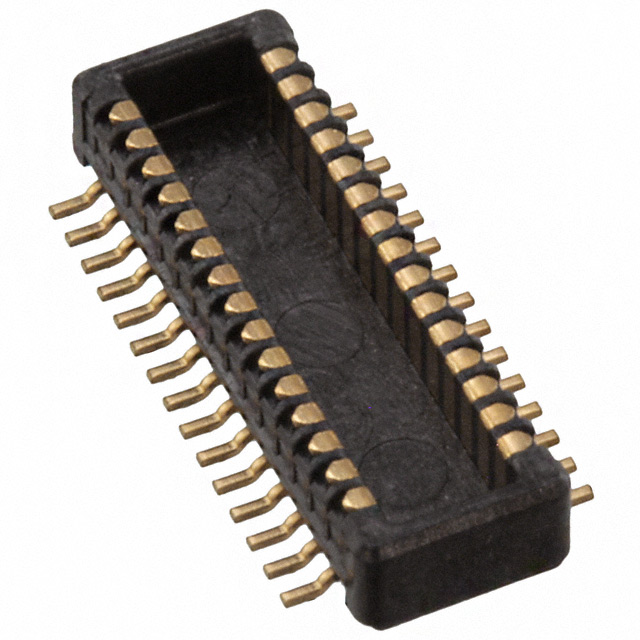

500334 Series
0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack Height, 80 Circuits
Manufacturer: Molex
Catalog
0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack Height, 80 Circuits
Beta
⌘K
0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack Height, 80 Circuits
0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack Height, 80 Circuits
0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack Height, 80 Circuits
| Part | Number of Positions | Pitch | Contact Finish Thickness | Mounting Type | Number of Rows | Height Above Board | Connector Type | Contact Finish | Mated Stacking Height |
|---|---|---|---|---|---|---|---|---|---|
 Molex | 20 | 0.02 in | 10 Ąin | Surface Mount | 2 | 0.058 in | Outer Shroud Contacts Plug | Gold | 2.5 mm |
 Molex | 16 | 0.02 in | 10 Ąin | Surface Mount | 2 | 0.058 in | Outer Shroud Contacts Plug | Gold | 2.5 mm |
 Molex | 30 | 0.02 in | 10 Ąin | Surface Mount | 2 | 0.058 in | Outer Shroud Contacts Plug | Gold | 2.5 mm |
 Molex | 80 | 0.02 in | 10 Ąin | Surface Mount | 2 | 0.058 in | Outer Shroud Contacts Plug | Gold | 2.5 mm |
