320552 Series

Catalog

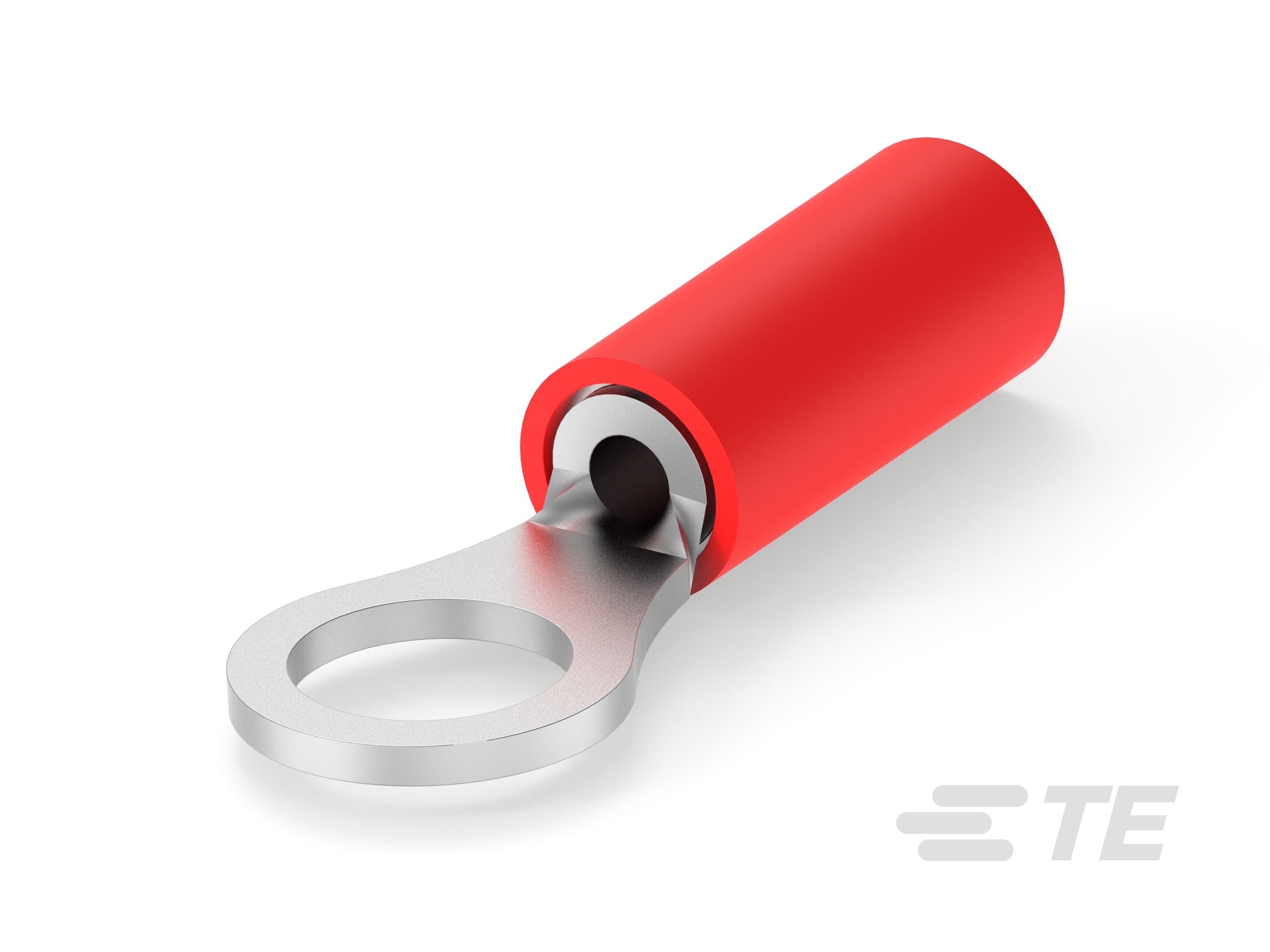

RING TONGUE TERMINAL, M5, #10, 16 AWG, 1.42 MM², PIDG SERIES, RED

Part	Width - Outer Edges	Mounting Type	Termination	Stud/Tab Size	Length - Overall	Color	Thickness	Insulation	Contact Finish	Contact Material	Features	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Terminal Type	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)
TE Connectivity AMP Connectors 2-320552-1	0.281 in	Free Hanging (In-Line)	Crimp	10 Stud	0.797 in	Red	0.031 in	Insulated	Tin	Copper	Serrated Termination	16 AWG	22 AWG	Circular	Nylon PA Polyamide	0.08 in	0.125 in
TE Connectivity AMP Connectors 8-320552-1	0.281 in	Free Hanging (In-Line)	Crimp	10 Stud	0.797 in	Red	0.031 in	Insulated	Tin	Copper	Serrated Termination	16 AWG	22 AWG	Circular	Nylon PA Polyamide	0.08 in	0.125 in
