207778 Series

Manufacturer: Molex

Catalog

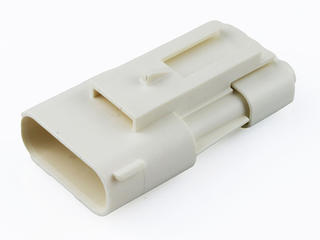

SQUBA 3.6 SEALED PLUG ASSEMBLY, 3.60MM PITCH, 3 CIRCUITS, SINGLE ROW, GLOW-WIRE CAPABLE, WITH CLIPSLOT, KEY I, MINT, UL1007/UL1061 COMPATIBLE

Part	Insulation Material	Number of Positions	Connector Type	Number of Rows	Mounting Type	Pitch	Contact Type	Features	Contact Termination	Operating Temperature (Min)	Operating Temperature (Max)	Color	Fastening Type	Note
Molex 2077781903	Nylon Polyamide (PA)	3	Plug	1	Free Hanging (In-Line)	0.142 in	Female Socket	Sealed	Crimp	-40 °C	105 °C	Mint	Latch Lock
Molex 2077781203	Nylon Polyamide (PA)	3	Plug	1	Free Hanging (In-Line)	0.142 in	Male Pin	Sealed	Crimp	-40 °C	105 °C	Natural	Locking Ramp
Molex 2077780102	Nylon Polyamide (PA)	2	Plug	1	Free Hanging (In-Line)	0.142 in	Male Pin	Sealed	Crimp	-40 °C	105 °C	Red	Locking Ramp
Molex 2077780413	Nylon Polyamide (PA)	3	Plug	1	Free Hanging (In-Line)	0.142 in	Male Pin	Sealed	Crimp	-40 °C	105 °C	Yellow	Locking Ramp
Molex 2077780313	Nylon Polyamide (PA)	3	Plug	1	Free Hanging (In-Line)	0.142 in	Male Pin	Sealed	Crimp	-40 °C	105 °C	Gray	Locking Ramp
Molex 2077780503	Nylon Polyamide (PA)	3	Plug	1	Free Hanging (In-Line)	0.142 in	Male Pin	Sealed	Crimp	-40 °C	105 °C	Brown	Locking Ramp
Molex 2077780002	Nylon Polyamide (PA)	2	Plug	1	Free Hanging (In-Line)	0.142 in	Male Pin	Sealed	Crimp	-40 °C	105 °C	Black	Locking Ramp	Contacts Not Included
Molex 2077780012	Nylon Polyamide (PA)	2	Plug	1	Free Hanging (In-Line)	0.142 in	Male Pin	Sealed	Crimp	-40 °C	105 °C	Black	Locking Ramp
Molex 2077781204	Nylon Polyamide (PA)	4	Plug	1	Free Hanging (In-Line)	0.142 in	Male Pin	Sealed	Crimp	-40 °C	105 °C	Natural	Locking Ramp

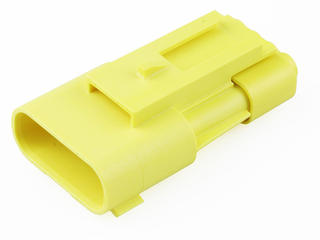

Molex 2077781404	Nylon Polyamide (PA)	4	Plug	1	Free Hanging (In-Line)	0.142 in	Male Pin	Sealed	Crimp	-40 °C	105 °C	Yellow	Locking Ramp
