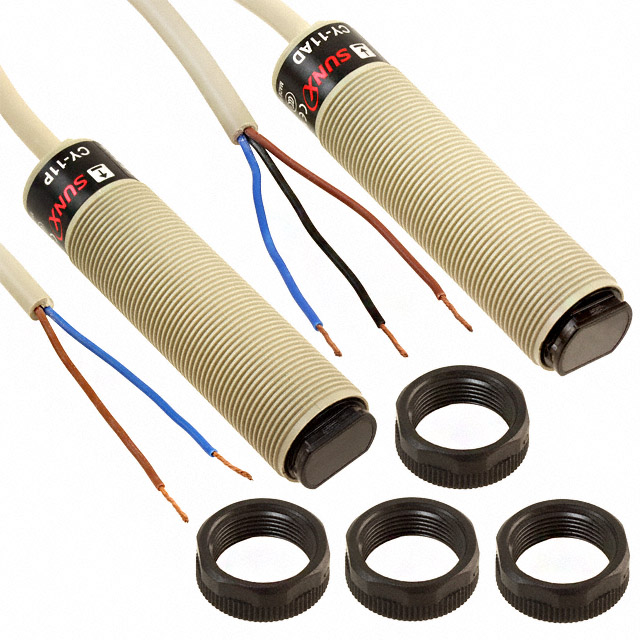

CY-11 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SENSOR THROUGH-BEAM 12M DO
| Part | Ingress Protection | Response Time | Output Configuration | Sensing Distance (Alt) | Sensing Distance | Sensing Method | Light Source | Connection Method | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | IP67 | 20 ms | Dark-ON | 39.4 ' | 39.4 ' 472.4 " | Through-Beam | Infrared | Cable | -25 °C | 55 °C | 24 VAC | 240 VAC |
 Panasonic Industrial Automation Sales | IP67 | 20 ms | Dark-ON | 39.4 ' | 39.4 ' 472.4 " | Through-Beam | Infrared | Cable | -25 °C | 55 °C | 24 VAC | 240 VAC |
Panasonic Industrial Automation Sales | IP67 | 20 ms | Light-ON | 39.4 ' | 39.4 ' 472.4 " | Through-Beam | Infrared | Cable | -25 °C | 55 °C | 24 VAC | 240 VAC |
 Panasonic Industrial Automation Sales | IP67 | 20 ms | Light-ON | 39.4 ' | 39.4 ' 472.4 " | Through-Beam | Infrared | Cable | -25 °C | 55 °C | 24 VAC | 240 VAC |
