749877 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN SCSI RCP 50 POS 1.27MM IDT RA PANEL MOUNT 50 TERMINAL 1 PORT TUBE

Part	Connector Style	Color	Shell Material, Finish	Number of Positions	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Rows	Flange Feature	Features	Termination	Contact Finish	Dielectric Material	Voltage Rating	Connector Type	Contact Material	Contact Type
TE Connectivity Raychem Cable Protection 749877-5	D-Type	Black	Nickel Plated Steel	50	0.05	0.1	105 ░C	-55 °C	UL94 V-0	2	Housing/Shell (4-40)	Terminating Cover	IDC Ribbon Cable	Gold	Thermoplastic	30 VDC	Receptacle Female Sockets	Phosphor Bronze	Signal
TE Connectivity Raychem Cable Protection 749877-7	D-Type	Black	Nickel Plated Steel	68	0.05	0.1	105 ░C	-55 °C	UL94 V-0	2	Housing/Shell (4-40)	Terminating Cover	IDC Ribbon Cable	Gold	Thermoplastic	30 VDC	Receptacle Female Sockets	Phosphor Bronze	Signal

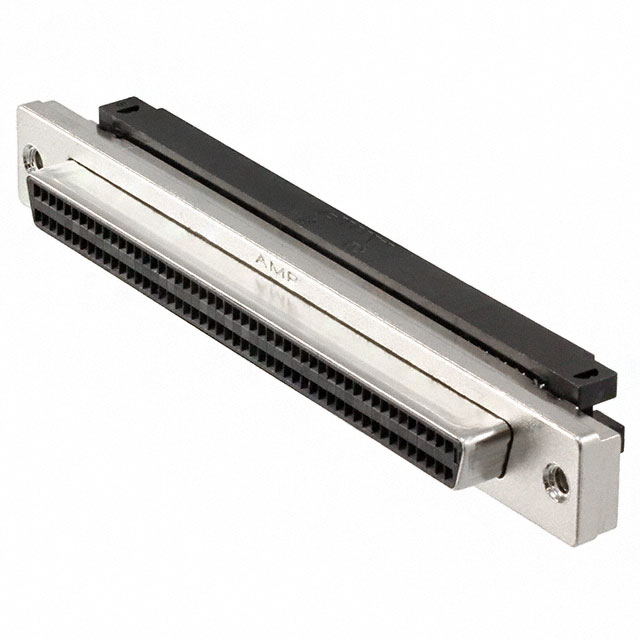

TE Connectivity Raychem Cable Protection 5-749877-9	D-Type	Black	Nickel Plated Steel	100	0.05	0.1	105 ░C	-55 °C	UL94 V-0	2	Housing/Shell (4-40)	Terminating Cover	IDC Ribbon Cable	Gold	Thermoplastic	30 VDC	Receptacle Female Sockets	Phosphor Bronze	Signal

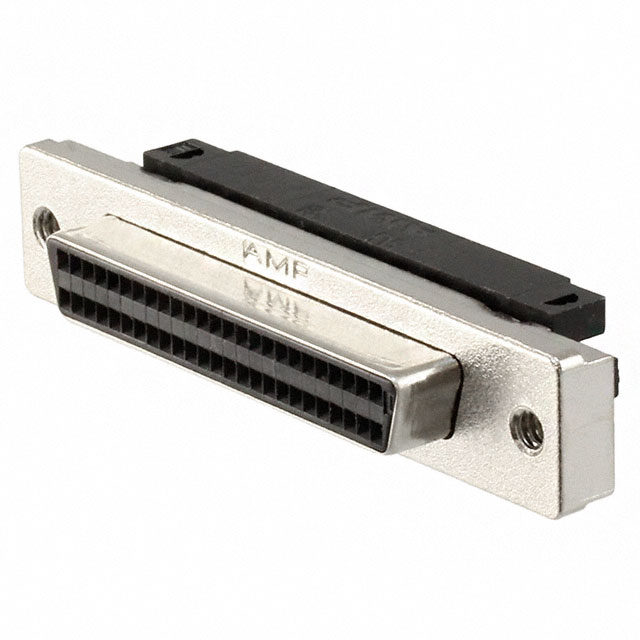

TE Connectivity Raychem Cable Protection 5-749877-5	D-Type	Black	Nickel Plated Steel	50	0.05	0.1	105 ░C	-55 °C	UL94 V-0	2	Housing/Shell (4-40)	Terminating Cover	IDC Ribbon Cable	Gold	Thermoplastic	30 VDC	Receptacle Female Sockets	Phosphor Bronze	Signal

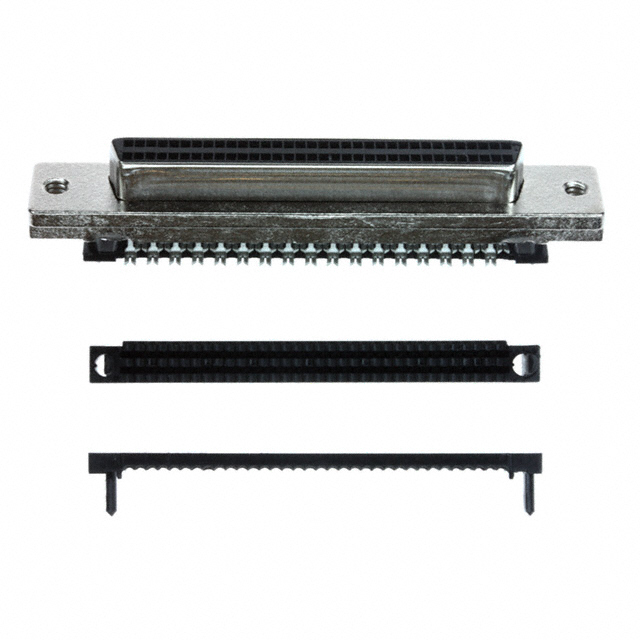

TE Connectivity Raychem Cable Protection 5-749877-7	D-Type	Black	Nickel Plated Steel	68	0.05	0.1	105 ░C	-55 °C	UL94 V-0	2	Housing/Shell (4-40)	Terminating Cover	IDC Ribbon Cable	Gold	Thermoplastic	30 VDC	Receptacle Female Sockets	Phosphor Bronze	Signal
