3-PH OLR/100-240V/12.5-800FLA/
Description
AI

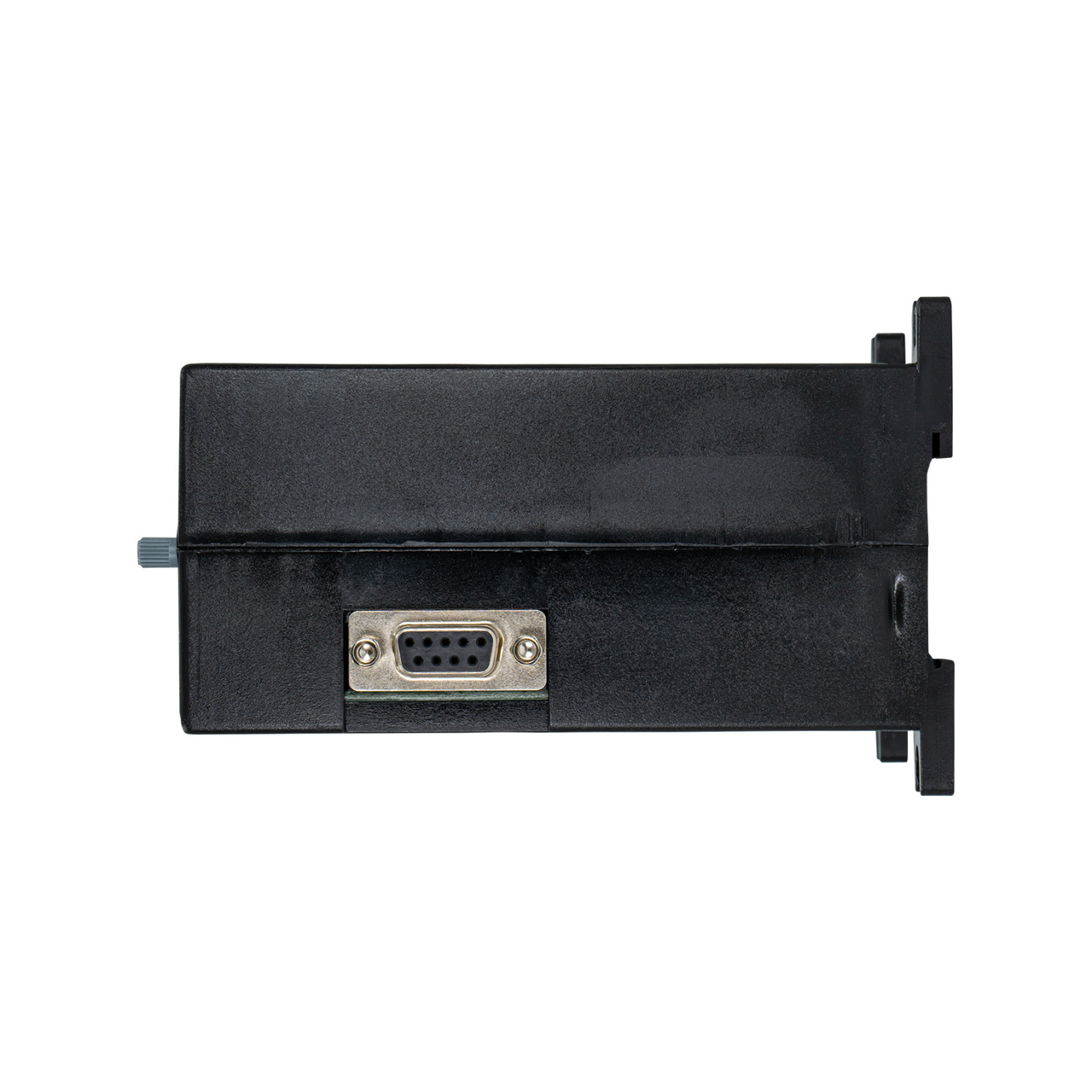

The 777-MV-P2 three-phase current and voltage monitor provides motor protection with input voltage from 100–240 V ac and motor full load ampere range of 10–800 A (external CTs required).
Beta
⌘K
3-PH OLR/100-240V/12.5-800FLA/
3-PH OLR/100-240V/12.5-800FLA/
| Part | Function | Termination Style | Delay Time (Minimum) | Delay Time (Maximum) | Mounting Type | Trip Voltage (Max) | Trip Voltage (Min) | Trip Current (Max) | Trip Current (Min) | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Multiple | Screw Terminal | 0 Sec | 999 Sec | Chassis Mount | 264 VAC | 85 VAC | 800 A | 10 A | 70 °C | -20 °C | 100 VAC | 240 VAC |
