292174 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CT BOX HDR V SMT 7P O/TAPE NAT
| Part | Contact Type | Style | Voltage Rating | Contact Finish - Post | Fastening Type | Termination | Pitch - Mating | Current Rating | Current Rating | Number of Positions Loaded | Contact Finish - Mating | Contact Length - Mating | Connector Type | Insulation Height | Contact Material | Number of Rows | Shrouding | Insulation Color | Mounting Type | Contact Shape | Number of Positions | Insulation Material | Features | Material Flammability Rating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Male Pin | Board Cable/Wire | 125 V | Tin | Detent Lock | Solder | 0.079 in | 0 A | Varies by Wire Gauge | All | Tin | 0.177 in | Header | 0.307 in | Brass | 1 | Shrouded - 4 Wall | Natural | Surface Mount | Square | 7 | Glass Filled Nylon Polyamide (PA) | Board Guide Solder Retention | UL94 V-0 | General Purpose |
 TE Connectivity AMP Connectors | Male Pin | Board Cable/Wire | 125 V | Tin | Detent Lock | Solder | 0.079 in | 0 A | Varies by Wire Gauge | All | Tin | 0.177 in | Header | 0.307 in | Brass | 1 | Shrouded - 4 Wall | Natural | Surface Mount | Square | 9 | Glass Filled Nylon Polyamide (PA) | Board Guide Solder Retention | UL94 V-0 | General Purpose |
 TE Connectivity AMP Connectors | Male Pin | Board Cable/Wire | 125 V | Tin | Detent Lock | Solder | 0.079 in | 0 A | Varies by Wire Gauge | All | Tin | 0.177 in | Header | 0.307 in | Brass | 1 | Shrouded - 4 Wall | Natural | Surface Mount | Square | 4 | Glass Filled Nylon Polyamide (PA) | Board Guide Solder Retention | UL94 V-0 | General Purpose |
 TE Connectivity AMP Connectors | Male Pin | Board Cable/Wire | 125 V | Tin | Detent Lock | Solder | 0.079 in | 0 A | Varies by Wire Gauge | All | Tin | 0.177 in | Header | 0.307 in | Brass | 1 | Shrouded - 4 Wall | Natural | Surface Mount | Square | 8 | Glass Filled Nylon Polyamide (PA) | Board Guide Solder Retention | UL94 V-0 | General Purpose |

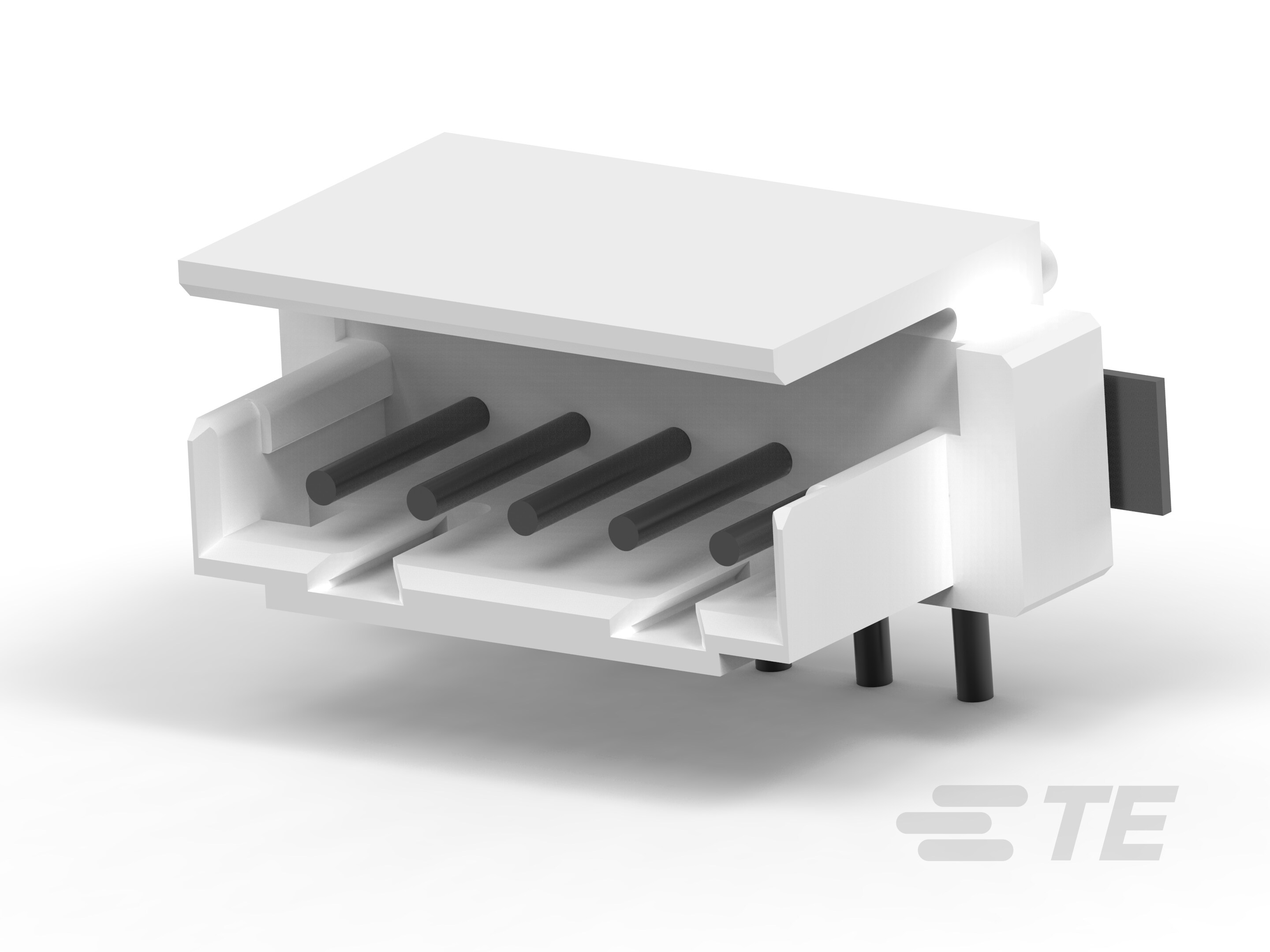

 TE Connectivity AMP Connectors | Male Pin | Board Cable/Wire | 125 V | Tin | Detent Lock | Solder | 0.079 in | 0 A | Varies by Wire Gauge | All | Tin | 0.177 in | Header | 0.307 in | Brass | 1 | Shrouded - 4 Wall | Natural | Surface Mount | Square | 5 | Glass Filled Nylon Polyamide (PA) | Board Guide Solder Retention | UL94 V-0 | General Purpose |
 TE Connectivity AMP Connectors | Male Pin | Board Cable/Wire | 125 V | Tin | Detent Lock | Solder | 0.079 in | 0 A | Varies by Wire Gauge | All | Tin | 0.177 in | Header | 0.307 in | Brass | 1 | Shrouded - 4 Wall | Natural | Surface Mount | Square | 6 | Glass Filled Nylon Polyamide (PA) | Board Guide Solder Retention | UL94 V-0 | General Purpose |
 TE Connectivity AMP Connectors | Male Pin | Board Cable/Wire | 125 V | Tin | Detent Lock | Solder | 0.079 in | 0 A | Varies by Wire Gauge | All | Tin | 0.177 in | Header | 0.307 in | Brass | 1 | Shrouded - 4 Wall | Black | Surface Mount | Square | 4 | Glass Filled Nylon Polyamide (PA) | Board Guide Solder Retention | UL94 V-0 | General Purpose |
