AQ24CANFD-02HTG Series

2Ch 21KV 24V 210W TVS Diode Array

Catalog

2Ch 21KV 24V 210W TVS Diode Array

Part	Capacitance	Applications	Grade	Power - Peak Pulse	Package / Case	Qualification	Voltage - Breakdown (Min)	Type	Power Line Protection	Bidirectional Channels	Voltage - Clamping (Max)	Voltage - Reverse Standoff (Max)	Current - Peak Pulse	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Mounting Type

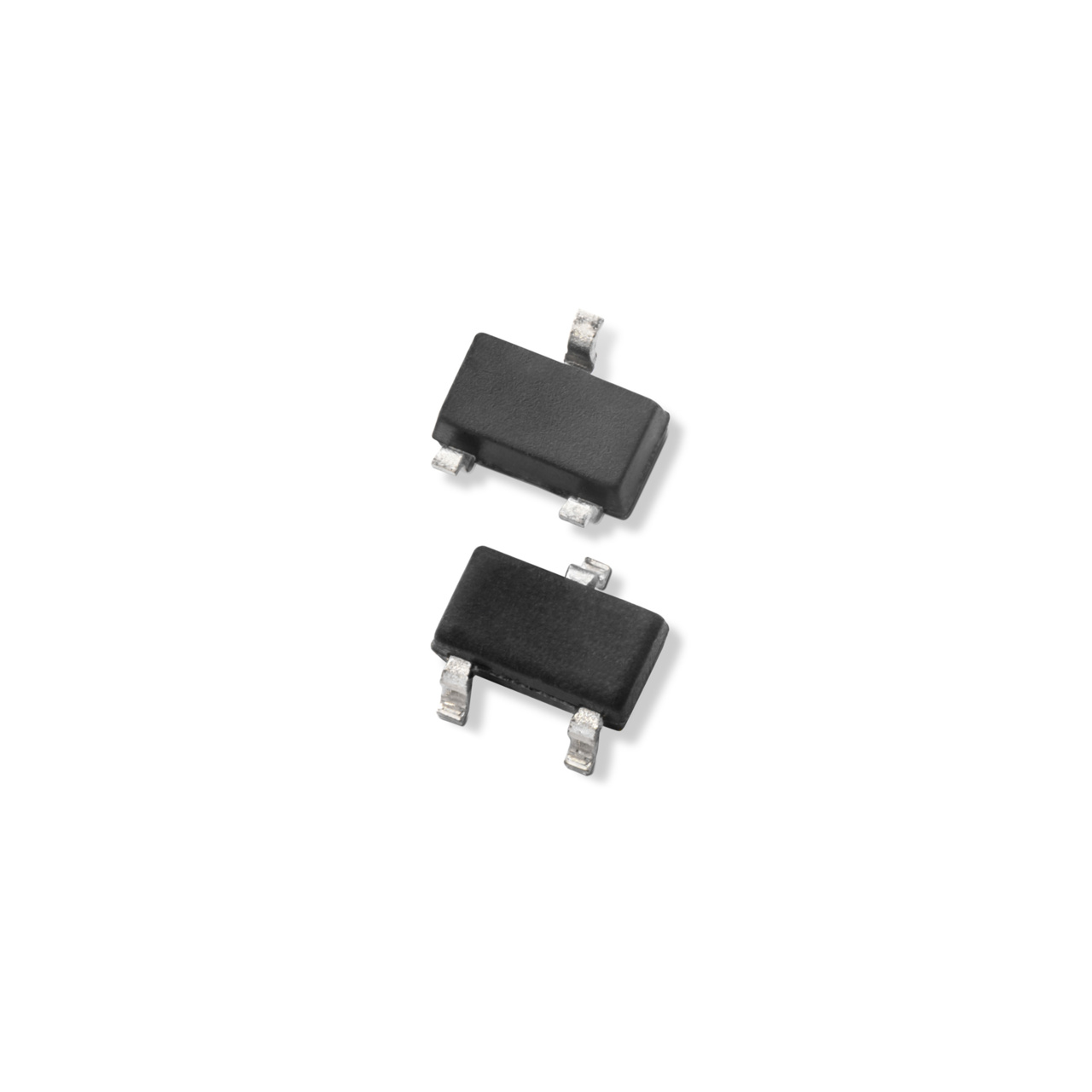

LITTELFUSE AQ24CANFD-02HTG	11.5 pF	CAN	Automotive	200 W	SC-59 SOT-23-3 TO-236-3	AEC-Q101	26.7 V	Zener	No	2	50 V	24 V	3 A	-40 °C	150 °C	SOT-23-3	Surface Mount

Catalog

2Ch 21KV 24V 210W TVS Diode Array

Description

The AQ24CANFD is designed to protect automotive Controller Area Network (CAN) lines from damage due to electrostatic discharge (ESD), electrical fast transient (EFT), and other overvoltage transients. The AQ24CANFD can absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard without performance degradation and can safely withstand 3A surge (8/20 waveshape as defined in IEC 61000-4-5 2nd edition) at a very low clamping voltages.
