747908 Series

Catalog

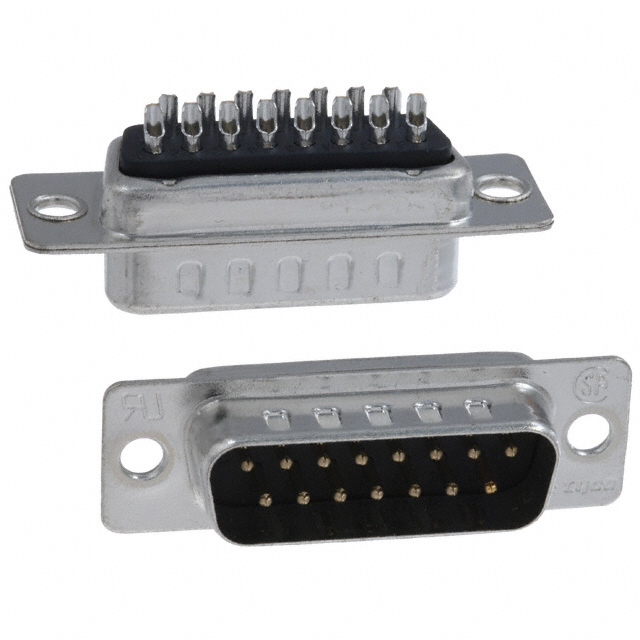

CONN D-SUB PLUG 15POS SLDR CUP

Part	Contact Finish Thickness	Finish	Shell Material	Termination	Connector Type	Number of Positions	Flange Feature	Material Flammability Rating	Contact Type	Current Rating	Number of Rows	Mounting Type	Contact Finish	Connector Style	Features	Shell Size	Connector Layout	Dielectric Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Voltage Rating
TE Connectivity AMP Connectors 747908-9	8 µin	Tin Plated	Steel	Solder Cup	Male Pins Plug	15	Housing Shell (Unthreaded)	UL94 V-0	Signal	3 A	2	Free Hanging (In-Line)	Gold	D-Sub	Grounding Indents	2	A DA	Glass Filled Polybutylene Terephthalate (PBT)	Black	-55 °C	105 °C	Brass	250 V
TE Connectivity AMP Connectors 747908-2	8 µin	Tin Plated	Steel	Solder Cup	Male Pins Plug	15	Housing Shell (Unthreaded)	UL94 V-0	Signal	3 A	2	Free Hanging (In-Line)	Gold	D-Sub	Grounding Indents	2	A DA	Glass Filled Polybutylene Terephthalate (PBT)	Black	-55 °C	105 °C	Brass	250 V
