PS8551 Series

Manufacturer: Renesas Electronics Corporation

Catalog

OPTICALLY ISOLATED AMPLIFIERS HI-SPD OPTOCPLR 8-PIN DIP

Part	Current - Input Bias	-3db Bandwidth	Voltage - Supply Span (Max)	Number of Circuits	Voltage - Input Offset	Voltage - Supply Span (Min)	Mounting Type	Package / Case	Amplifier Type	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Output Type	Current - Supply	Current - Output / Channel
Renesas Electronics Corporation PS8551L4-AX	500 nA	100 kHz	5.5 V	1	300 µV	4.5 V	Surface Mount	8-SMD Gull Wing	Isolation	8-SMD Gull Wing	-40 °C	85 °C	Differential	16 mA	18.6 mA
Renesas Electronics Corporation PS8551L4-E3-AX	500 nA	100 kHz	5.5 V	1	300 µV	4.5 V	Surface Mount	8-SMD Gull Wing	Isolation	8-DIP Gull Wing	-40 °C	85 °C	Differential	16 mA	18.6 mA
Renesas Electronics Corporation PS8551AL4-E3-AX	1 µA	100 kHz	5.5 V	1	2 mV	4.5 V	Surface Mount	8-SMD Gull Wing	Isolation	8-DIP Gull Wing	-40 °C	105 °C		13.5 mA	7.8 mA

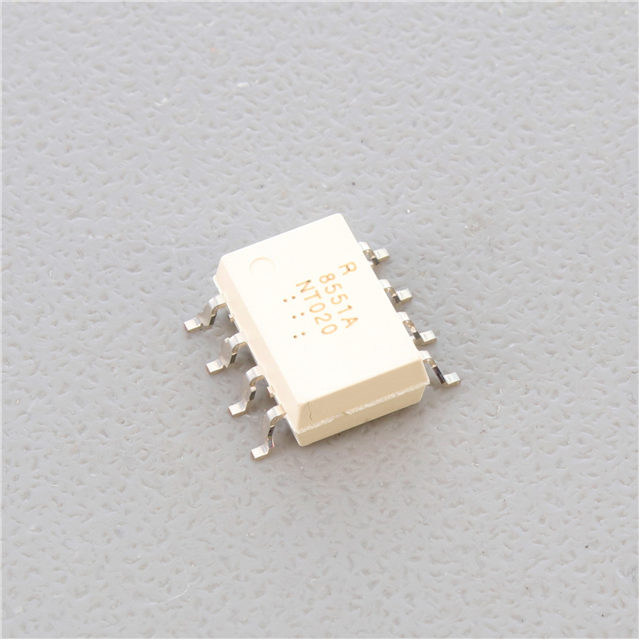

Renesas Electronics Corporation PS8551AL4-AX	1 µA	100 kHz	5.5 V	1	2 mV	4.5 V	Surface Mount	8-SMD Gull Wing	Isolation	8-DIP Gull Wing	-40 °C	105 °C		13.5 mA	7.8 mA
Renesas Electronics Corporation PS8551L4-V-E3-AX	500 nA	100 kHz	5.5 V	1	300 µV	4.5 V	Surface Mount	8-SMD Gull Wing	Isolation	8-SMD	-40 °C	85 °C		16 mA	18.6 mA
Renesas Electronics Corporation PS8551L4-V-AX	500 nA	100 kHz	5.5 V	1	300 µV	4.5 V	Surface Mount	8-SMD Gull Wing	Isolation	8-DIP Gull Wing	-40 °C	85 °C	Differential	16 mA	18.6 mA
Renesas Electronics Corporation PS8551AL4-E3-AX	1 µA	100 kHz	5.5 V	1	2 mV	4.5 V	Surface Mount	8-SMD Gull Wing	Isolation	8-DIP Gull Wing	-40 °C	105 °C		13.5 mA	7.8 mA
Renesas Electronics Corporation PS8551AL4-V-E3-AX	1 µA	100 kHz	5.5 V	1	2 mV	4.5 V	Surface Mount	8-SMD Gull Wing	Isolation	8-DIP Gull Wing	-40 °C	105 °C		13.5 mA	7.8 mA
Renesas Electronics Corporation PS8551L4-V-AX	500 nA	100 kHz	5.5 V	1	300 µV	4.5 V	Surface Mount	8-SMD Gull Wing	Isolation	8-DIP Gull Wing	-40 °C	85 °C	Differential	16 mA	18.6 mA
