HLE-139 Series
Manufacturer: Samtec Inc.
Beta
⌘K

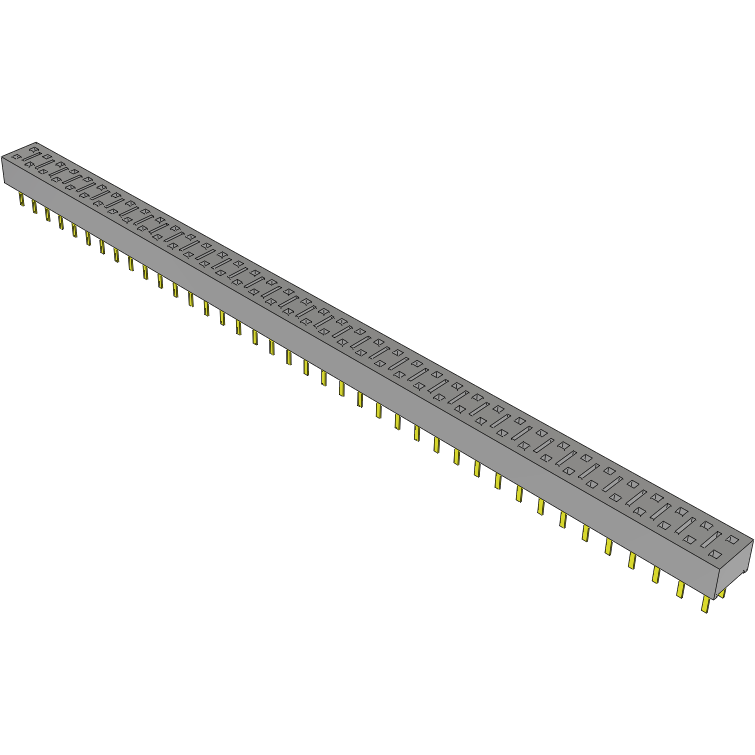

CONN SOCKET STRIP SKT 78 POS 2.54MM SOLDER ST THRU-HOLE TUBE
| Part | Pitch - Mating | Row Spacing - Mating | Mounting Type | Contact Length - Post | Contact Type | Contact Finish - Mating | Number of Positions | Current Rating (Per Contact) | Contact Finish Thickness - Mating | Connector Type | Insulation Height | Number of Rows | Operating Temperature (Max) | Operating Temperature (Min) | Fastening Type | Style | Termination | Number of Positions Loaded | Contact Finish - Post | Insulation Color | Voltage Rating | Contact Material | Contact Finish Thickness - Post | Insulation Material | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | 0.1 in | 0.1 in | Through Hole | 0.12 in | Female Socket | Gold | 78 | 4.1 A | 10 µin | Receptacle | 0.138 in | 2 | 125 °C | -55 °C | Push-Pull | Board | Solder | All | Gold | Black | 400 V | Beryllium Copper | 3 µin | Liquid Crystal Polymer (LCP) | Square |
 Samtec Inc. | 0.1 in | 0.1 in | Through Hole | 0.12 in | Female Socket | Gold | 78 | 4.1 A | 10 µin | Receptacle | 0.138 in | 2 | 125 °C | -55 °C | Push-Pull | Board | Solder | All | Tin | Black | 400 V | Beryllium Copper | Liquid Crystal Polymer (LCP) | Square |
