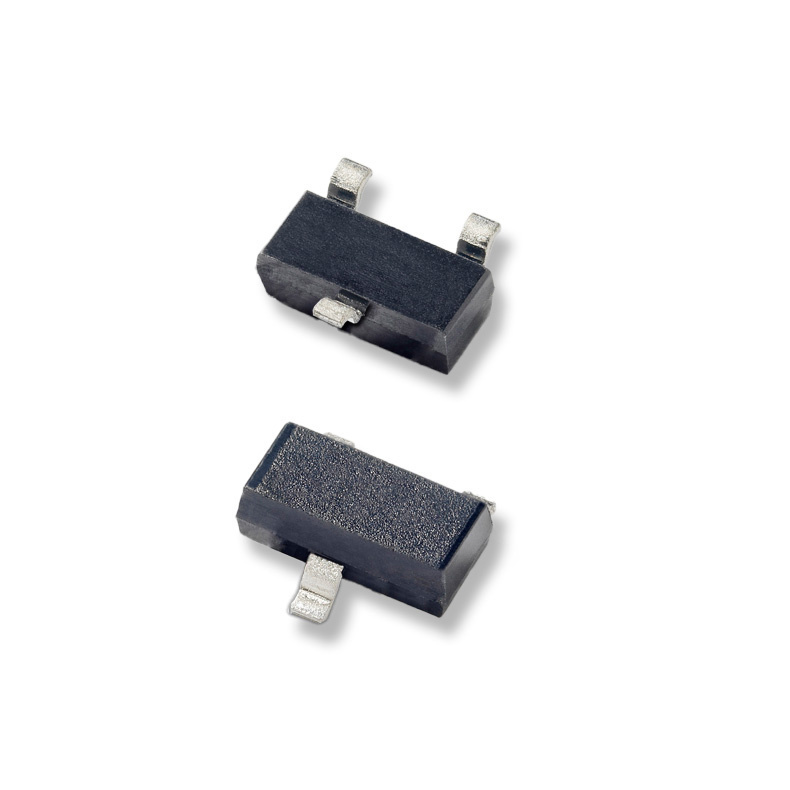

AQ24 Series
Manufacturer: LITTELFUSE
Beta
⌘K

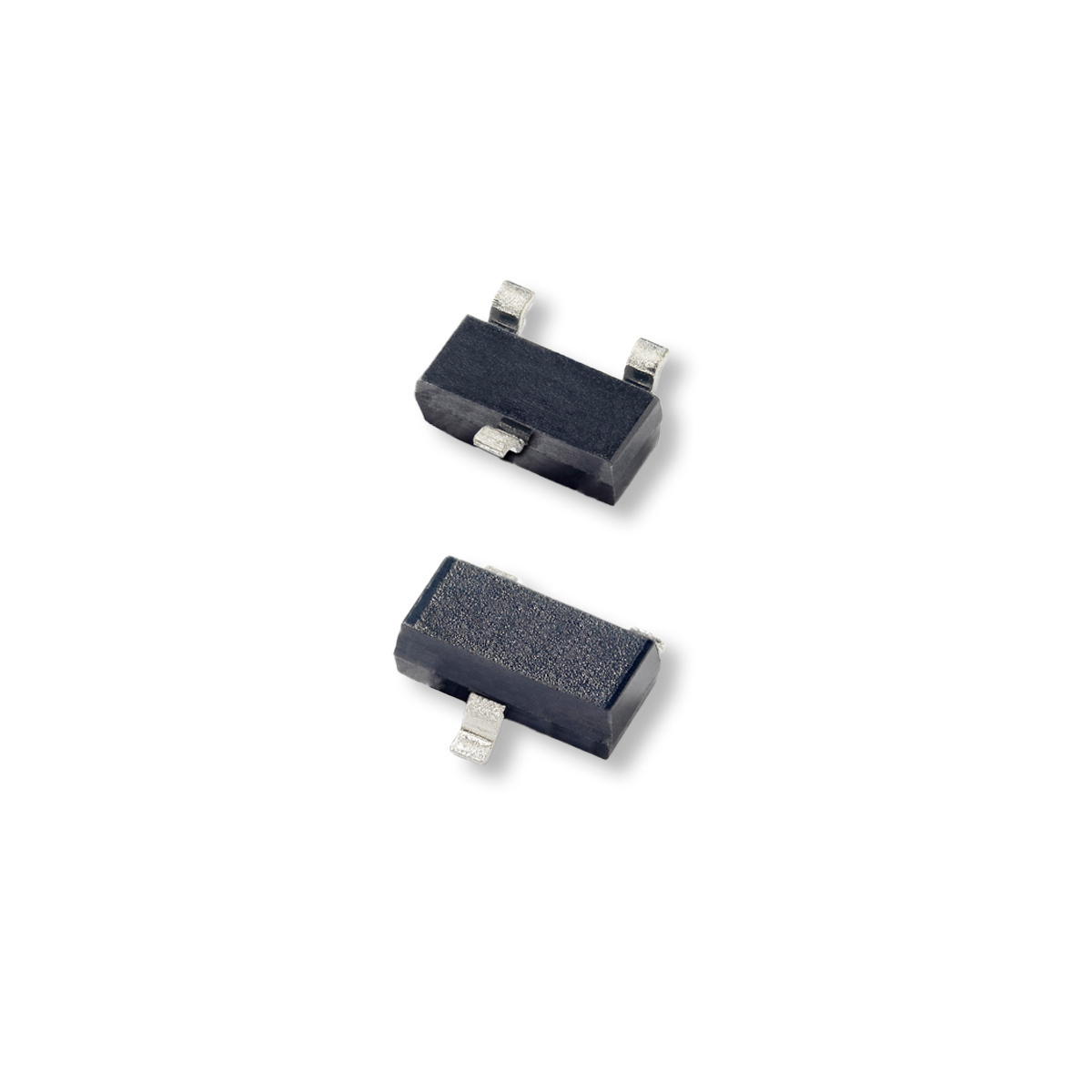

2CH 25KV 250W TVS DIODE ARRAY SOT23-3/ TR ROHS COMPLIANT: YES
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Bidirectional Channels | Power Line Protection | Voltage - Breakdown (Min) | Voltage - Reverse Standoff (Max) | Type | Grade | Package / Case | Package Name | Mounting Type | Power - Peak Pulse | Capacitance | Current - Peak Pulse | Applications | Qualification | Voltage - Clamping (Max) | Voltage - Clamping (Max) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | -40 °C | 150 °C | 2 | No | 26.7 V | 24 V | Zener | Automotive | SC-59 SOT-23-3 TO-236-3 | SOT-23-3 | Surface Mount | 250 W | 15 pF | 5 A | CAN | AEC-Q101 | 50 V | |
 LITTELFUSE | -40 °C | 150 °C | 2 | No | 26 V | 24 V | Zener | Automotive | SC-59 SOT-23-3 TO-236-3 | SOT-23-3 | Surface Mount | 450 W | 22 pF | 9 A | CAN | AEC-Q101 | 51 V |
