644875 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
16P MTA100 HDR ASSY F/L,SP BND
| Part | Termination | Voltage Rating | Connector Type | Contact Type | Pitch - Mating | Number of Positions | Contact Finish - Post | Contact Material | Insulation Color | Style | Fastening Type | Contact Finish - Mating | Insulation Material | Number of Positions Loaded | Current Rating | Current Rating | Material Flammability Rating | Insulation Height | Contact Length - Post | Mounting Type | Number of Rows | Contact Shape | Operating Temperature (Min) | Operating Temperature (Max) | Shrouding | Contact Length - Mating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Solder | 250 V | Header | Male Pin | 0.1 in | 16 | Tin | Copper Alloy | Natural | Board Cable/Wire | Friction Lock | Tin | Thermoplastic | All | 0 A | Varies by Wire Gauge | UL94 V-0 | 0.225 in | 0.135 in | Right Angle Through Hole | 1 | Square | -55 °C | 105 °C | Shrouded - 1 Wall | 0.295 in | General Purpose |

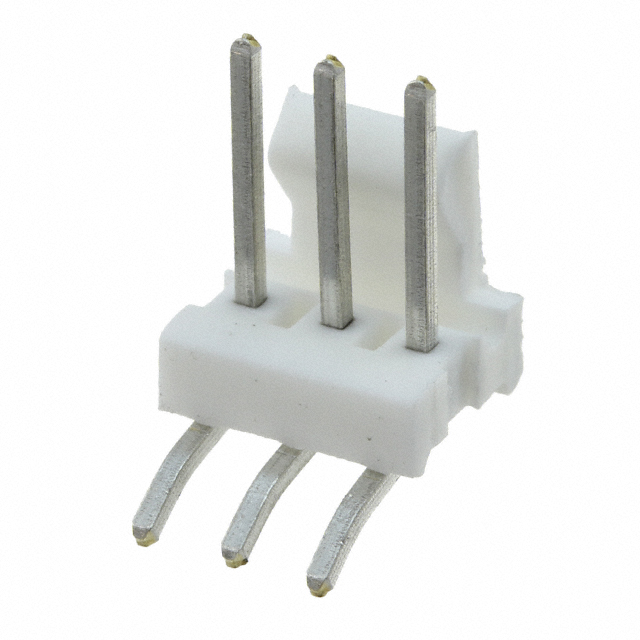

 TE Connectivity AMP Connectors | Solder | 250 V | Header | Male Pin | 0.1 in | 3 | Tin | Copper Alloy | Natural | Board Cable/Wire | Friction Lock | Tin | Thermoplastic | All | 0 A | Varies by Wire Gauge | UL94 V-0 | 0.225 in | 0.135 in | Right Angle Through Hole | 1 | Square | -55 °C | 105 °C | Shrouded - 1 Wall | 0.295 in | General Purpose |
 TE Connectivity AMP Connectors | Solder | 250 V | Header | Male Pin | 0.1 in | 4 | Tin | Copper Alloy | Natural | Board Cable/Wire | Friction Lock | Tin | Thermoplastic | All | 0 A | Varies by Wire Gauge | UL94 V-0 | 0.225 in | 0.135 in | Right Angle Through Hole | 1 | Square | -55 °C | 105 °C | Shrouded - 1 Wall | 0.295 in | General Purpose |
