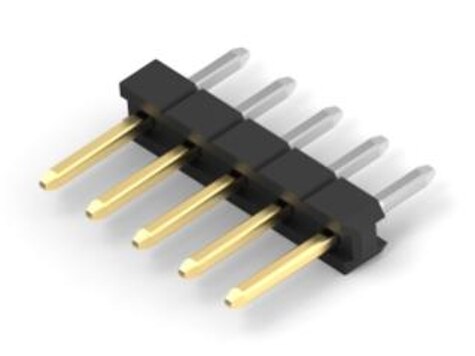

2355104 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
BOARD TO BOARD & MEZZANINE CONNECTORS 4P,2MM,BRK HDR,SRVT,2.8,0.1AU,TB W/CAP
| Part | Insulation Color | Features | Termination | Contact Length - Mating | Insulation Height | Contact Shape | Operating Temperature (Max) | Operating Temperature (Min) | Contact Length - Post | Connector Type | Current Rating | Contact Finish - Mating | Pitch - Mating | Mounting Type | Number of Positions Loaded | Style | Shrouding | Contact Finish Thickness - Mating | Overall Contact Length | Fastening Type | Contact Finish - Post | Voltage Rating | Voltage Rating (Type) | Number of Positions | Contact Type | Number of Rows | Contact Material | Material Flammability Rating | Insulation Material | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | Pick and Place | Solder | 0.157 in | 0.059 in | Square | 125 °C | -40 °C | 0.11 in | Breakaway Header | 2 A | Gold | 0.079 in | Through Hole | All | Board | Unshrouded | 3.94 µin | 0.327 in | Push-Pull | Tin | 125 V | DC | 4 | Male Pin | 1 | Copper Alloy | UL94 V-0 | Thermoplastic | 78.7 µin |
 TE Connectivity AMP Connectors | Black | Pick and Place | Solder | 0.157 in | 0.059 in | Square | 125 °C | -40 °C | 0.11 in | Breakaway Header | 2 A | Gold | 0.079 in | Through Hole | All | Board | Unshrouded | 3.94 µin | 0.327 in | Push-Pull | Tin | 125 V | DC | 10 | Male Pin | 1 | Copper Alloy | UL94 V-0 | Thermoplastic | 78.7 µin |
 TE Connectivity AMP Connectors | Black | Pick and Place | Solder | 0.157 in | 0.059 in | Square | 125 °C | -40 °C | 0.11 in | Breakaway Header | 2 A | Gold | 0.079 in | Through Hole | All | Board | Unshrouded | 3.94 µin | 0.327 in | Push-Pull | Tin | 125 V | DC | 5 | Male Pin | 1 | Copper Alloy | UL94 V-0 | Thermoplastic | 78.7 µin |
TE Connectivity AMP Connectors | Black | Pick and Place | Solder | 0.157 in | 0.059 in | Square | 125 °C | -40 °C | 0.11 in | Breakaway Header | 2 A | Gold | 0.079 in | Through Hole | All | Board | Unshrouded | 3.94 µin | 0.327 in | Push-Pull | Tin | 125 V | DC | 6 | Male Pin | 1 | Copper Alloy | UL94 V-0 | Thermoplastic | 78.7 µin |
TE Connectivity AMP Connectors | Black | Pick and Place | Solder | 0.157 in | 0.059 in | Square | 125 °C | -40 °C | 0.11 in | Breakaway Header | 2 A | Gold | 0.079 in | Through Hole | All | Board | Unshrouded | 3.94 µin | 0.327 in | Push-Pull | Tin | 125 V | DC | 8 | Male Pin | 1 | Copper Alloy | UL94 V-0 | Thermoplastic | 78.7 µin |
