2842238 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 50P,2MM,SHRD HDR, DRVT,0.76AU,TB

Part	Number of Positions Loaded	Number of Rows	Fastening Type	Style	Contact Finish - Mating	Number of Positions	Contact Material	Material Flammability Rating	Insulation Material	Current Rating	Voltage Rating	Voltage Rating (Type)	Contact Shape	Row Spacing - Mating	Insulation Color	Insulation Height	Connector Type	Mounting Type	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Length - Post	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Pitch - Mating	Contact Length - Mating	Termination	Contact Finish Thickness - Post	Applications
TE Connectivity AMP Connectors 5-2842238-0	All	2	Detent Lock	Board Board or Cable	Gold	50	Copper Alloy	UL94 V-0	Thermoplastic	2 A	125 V	DC	Square	0.079 in	Black	0.252 in	Header	Through Hole	Male Pin	Tin	30 µin	0.098 in	125 °C	-40 °C	Shrouded - 4 Wall	0.079 in	0.142 in	Solder	78.7 µin
TE Connectivity AMP Connectors 2-2842238-4	All	2	Detent Lock	Board Board or Cable	Gold	24 pos	Copper Alloy	UL94 V-0	Thermoplastic	2 A	125 V	DC	Square	0.079 in	Black	0.252 in	Header	Through Hole	Male Pin	Tin	30 µin	0.098 in	125 °C	-40 °C	Shrouded - 4 Wall	0.079 in	0.142 in	Solder	78.7 µin
TE Connectivity AMP Connectors 3-2842238-0	All	2	Detent Lock	Board Board or Cable	Gold	30	Copper Alloy	UL94 V-0	Thermoplastic	2 A	125 V	DC	Square	0.079 in	Black	0.252 in	Header	Through Hole	Male Pin	Tin	30 µin	0.098 in	125 °C	-40 °C	Shrouded - 4 Wall	0.079 in	0.142 in	Solder	78.7 µin
TE Connectivity AMP Connectors 1-2842238-6	All	2	Detent Lock	Board Board or Cable	Gold	16	Copper Alloy	UL94 V-0	Thermoplastic	2 A	125 V	DC	Square	0.079 in	Black	0.252 in	Header	Through Hole	Male Pin	Tin	30 µin	0.098 in	125 °C	-40 °C	Shrouded - 4 Wall	0.079 in	0.141 in	Solder	78.7 µin	General Purpose Industrial
TE Connectivity AMP Connectors 2-2842238-0	All	2	Detent Lock	Board Board or Cable	Gold	20	Copper Alloy	UL94 V-0	Thermoplastic	2 A	125 V	DC	Square	0.079 in	Black	0.252 in	Header	Through Hole	Male Pin	Tin	30 µin	0.098 in	125 °C	-40 °C	Shrouded - 4 Wall	0.079 in	0.141 in	Solder	78.7 µin	General Purpose Industrial
TE Connectivity AMP Connectors 3-2842238-4	All	2	Detent Lock	Board Board or Cable	Gold	34	Copper Alloy	UL94 V-0	Thermoplastic	2 A	125 V	DC	Square	0.079 in	Black	0.252 in	Header	Through Hole	Male Pin	Tin	30 µin	0.098 in	125 °C	-40 °C	Shrouded - 4 Wall	0.079 in	0.142 in	Solder	78.7 µin
TE Connectivity AMP Connectors 4-2842238-4	All	2	Detent Lock	Board Board or Cable	Gold	44	Copper Alloy	UL94 V-0	Thermoplastic	2 A	125 V	DC	Square	0.079 in	Black	0.252 in	Header	Through Hole	Male Pin	Tin	30 µin	0.098 in	125 °C	-40 °C	Shrouded - 4 Wall	0.079 in	0.142 in	Solder	78.7 µin
TE Connectivity AMP Connectors 2-2842238-6	All	2	Detent Lock	Board Board or Cable	Gold	26	Copper Alloy	UL94 V-0	Thermoplastic	2 A	125 V	DC	Square	0.079 in	Black	0.252 in	Header	Through Hole	Male Pin	Tin	30 µin	0.098 in	125 °C	-40 °C	Shrouded - 4 Wall	0.079 in	0.142 in	Solder	78.7 µin

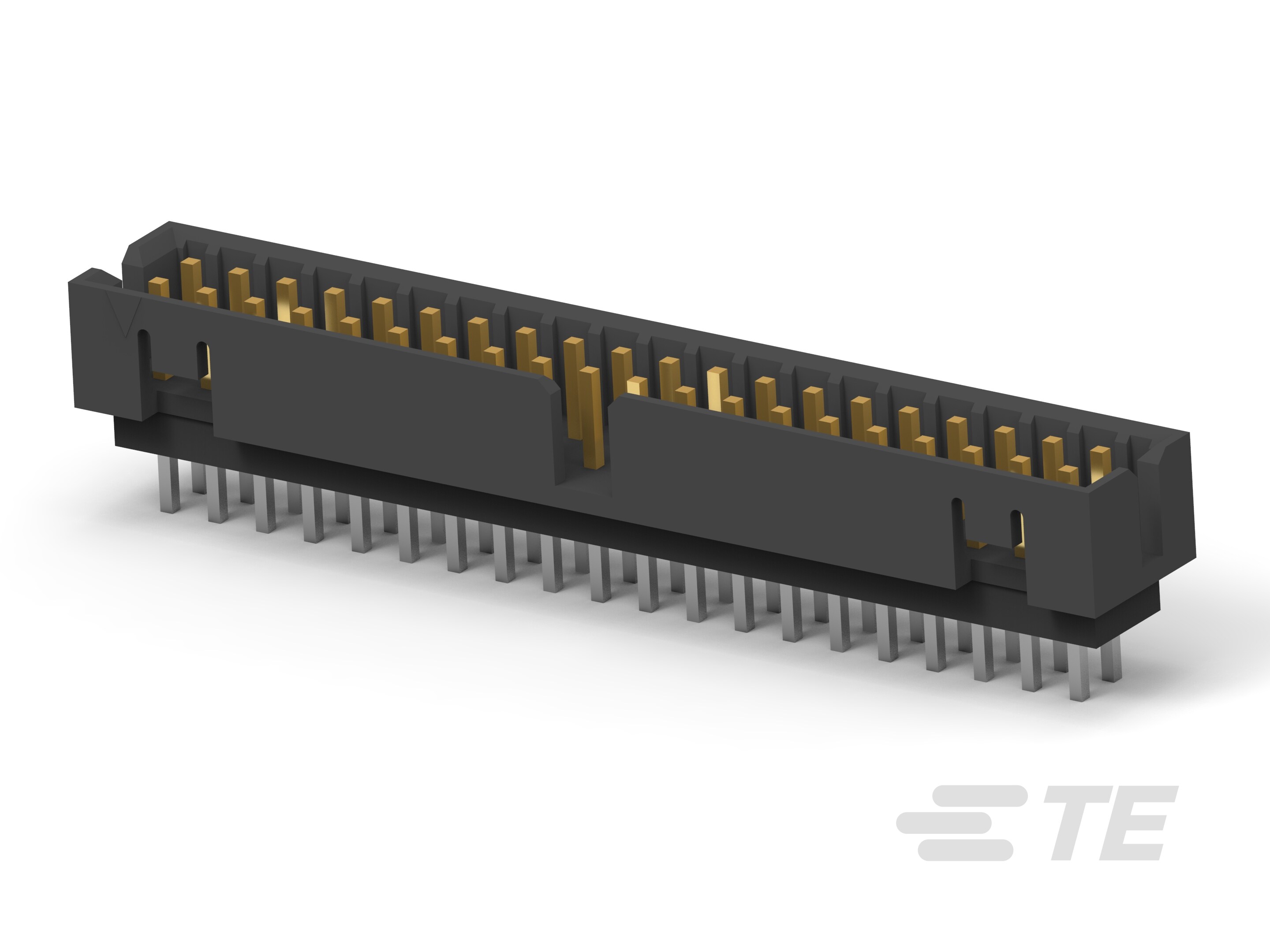

TE Connectivity AMP Connectors 4-2842238-0	All	2	Detent Lock	Board Board or Cable	Gold	40	Copper Alloy	UL94 V-0	Thermoplastic	2 A	125 V	DC	Square	0.079 in	Black	0.252 in	Header	Through Hole	Male Pin	Tin	30 µin	0.098 in	125 °C	-40 °C	Shrouded - 4 Wall	0.079 in	0.142 in	Solder	78.7 µin
