070545 Series
Manufacturer: Molex

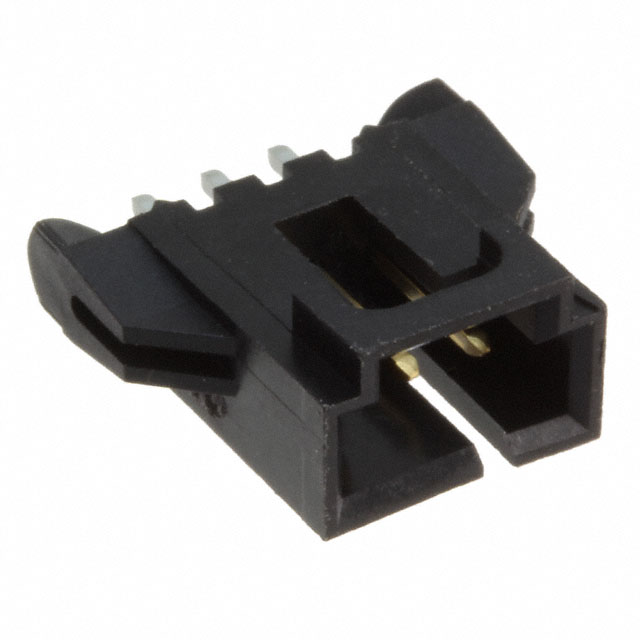

CONN HEADER VERT 12POS 2.54MM
| Part | Overall Contact Length | Number of Positions Loaded | Operating Temperature (Min) | Operating Temperature (Max) | Pitch - Mating | Connector Type | Contact Finish - Post | Contact Type | Number of Rows | Contact Shape | Material Flammability Rating | Insulation Color | Contact Length - Post | Features | Number of Positions | Voltage Rating | Insulation Material | Termination | Contact Length - Mating | Insulation Height | Contact Material | Contact Finish - Mating | Contact Finish Thickness - Mating | Mounting Type | Shrouding | Fastening Type | Style | Applications | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 0.47 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.13 in | Board Guide | 12 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Gold | 30 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | 74.8 µin |
Molex | 0.47 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.13 in | Board Guide | 9 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Tin | 150 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | |
Molex | 0.47 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.13 in | Board Guide | 16 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Tin | 150 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | |
Molex | 0.47 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.13 in | Board Guide | 5 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Tin | 150 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | |
Molex | 0.47 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.13 in | Board Guide | 16 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Gold | 30 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | 74.8 µin |
Molex | 0.545 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.205 in | Board Guide | 3 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Gold | 30 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | 74.8 µin |
Molex | 0.47 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.13 in | Board Guide | 17 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Gold | 30 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | 74.8 µin |
Molex | 0.47 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.13 in | Board Guide | 7 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Tin | 150 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | |
Molex | 0.47 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.13 in | Board Guide | 18 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Gold | 15 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | 74.8 µin |
Molex | 0.545 in | All | -40 °C | 105 °C | 0.1 in | Header | Tin | Male Pin | 1 | Square | UL94 V-0 | Black | 0.205 in | Board Guide | 6 | 250 V | Glass Filled Polyester | Solder | 0.24 in | 0.465 in | Phosphor Bronze | Gold | 30 µin | Through Hole | Shrouded - 4 Wall | Latch Holder | Board Cable/Wire | Automotive General Purpose Industrial Medical | 74.8 µin |
