52956 Series

Catalog

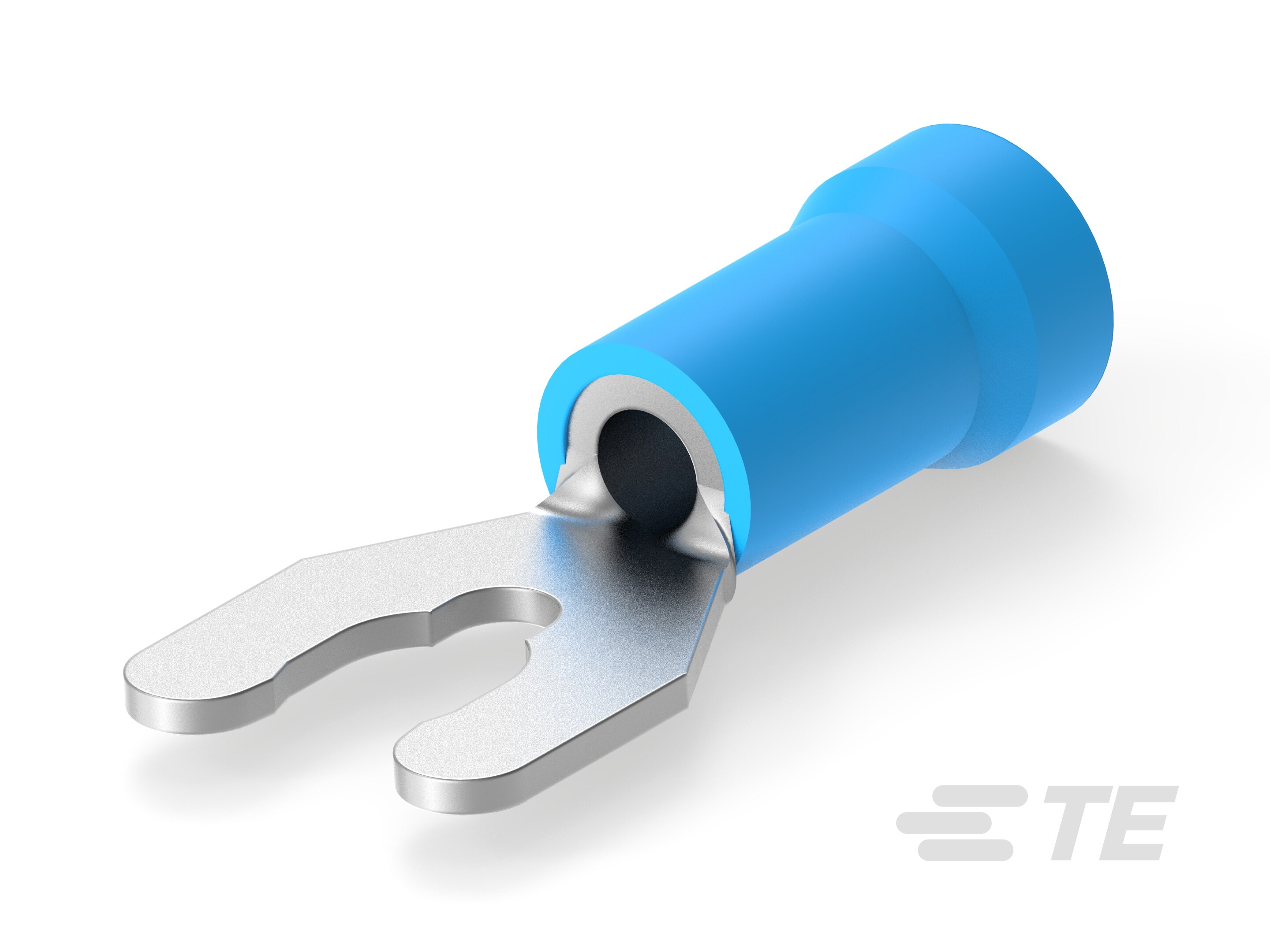

TERMINAL,PG SPR SPD 16-14 8 ROHS COMPLIANT: YES

Part	Features	Terminal Type	Mounting Type	Color	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Length - Overall	Termination	Contact Material	Insulation	Contact Finish	Stud/Tab Size	Width - Outer Edges	Length - Termination	Length - Ring Center to Termination	Material - Insulation	Tongue Inside Opening	Insulation Diameter (Min)	Insulation Diameter (Max)
TE Connectivity AMP Connectors 52956-3	Serrated Termination	Snap Spring	Free Hanging (In-Line)	Blue	16 AWG	14 AWG	0.921 in	Crimp	Brass	Insulated	Tin	8 Stud	0.375 in	0.465 in	0.281 in	Poly-Vinyl Chloride PVC	0.164 in	0.15 in	0.25 in
TE Connectivity AMP Connectors 7-52956-1	Serrated Termination	Snap Spring	Free Hanging (In-Line)	Blue	16 AWG	14 AWG	0.872 in	Crimp	Brass	Insulated	Tin	8 Stud	0.375 in	0.416 in	0.281 in	Poly-Vinyl Chloride PVC	0.164 in	0.118 in	0.193 in
