DCNLEV50 Series

DCN 50A 900V 12V Coil SPST IP67 BMnt AUX

Catalog

DCN 50A 900V 12V Coil SPST IP67 BMnt AUX

Part	Release Time	Coil Resistance	Coil Power	Operate Time	Coil Current	Must Operate Voltage	Coil Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Contact Form	Switching Voltage (Nominal)	Contact Rating (Current)	Mounting Type	Must Release Voltage	Features
LITTELFUSE DCNLEV50-EASN	10 ms	392 Ohms	6 W	25 ms	122 mA	33 VDC	48 V	-40 °C	85 °C	Stud Wire Leads	1 DM Form SPST-NO X	750 VDC	50 A	Chassis Mount	4.8 VAC	Auxiliary Contacts
LITTELFUSE DCNLEV50-E	10 ms	392 Ohms	6 W	25 ms	122 mA	33 VDC	48 V	-40 °C	85 °C	Stud Wire Leads	1 DM Form SPST-NO X	750 VDC	50 A	Chassis Mount	4.8 VAC
LITTELFUSE DCNLEV50-EA	10 ms	392 Ohms	6 W	25 ms	122 mA	33 VDC	48 V	-40 °C	85 °C	Stud Wire Leads	1 DM Form SPST-NO X	750 VDC	50 A	Chassis Mount	4.8 VAC	Auxiliary Contacts
LITTELFUSE DCNLEV50-BA	10 ms	26 Ohms	5.5 W	25 ms	461 mA	8 VDC	12 VAC	-40 °C	85 °C	Stud Wire Leads	1 DM Form SPST-NO X	750 VDC	50 A	Chassis Mount	1.2 V	Auxiliary Contacts

Catalog

DCN 50A 900V 12V Coil SPST IP67 BMnt AUX

Description

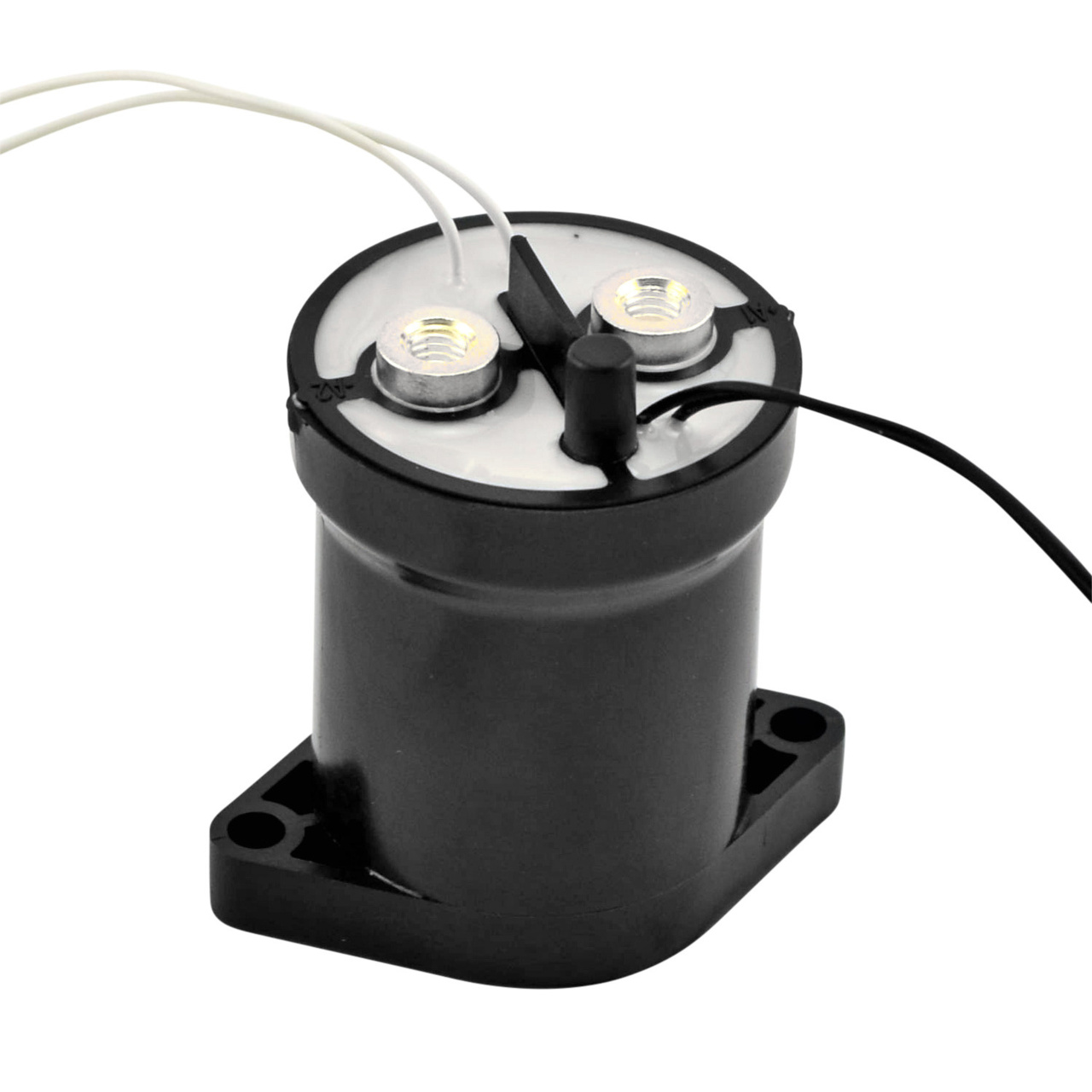

The DCNLEV50 Series 750 V 50 A High-Voltage DC Contactor Relay is designed for electric vehicle (EV) and eMobility applications, including battery power supply, charging station, motor control, circuit protection, and other switch controls as well as industrial machinery applications. The magnetic arc blowout design in an IP67 sealed, gas-filled chamber dissipates electrical arc between the contacts. This design allows the automotive relay to safely make/break higher voltages. This configuration of the DCNLEV50 series electric vehicle contactor (DCNLEV50-EASN) features a 48 V coil and non-polarized contacts. In addition, the 50 A relay has a side mounting style and a single-pole, single-throw (SPST), normally open (NO) auxiliary circuit.
